Turn the Base the right way up.
Take care to keep your hands away
from the area the footpedals travel
in, they can move quickly when
turning it over. Slide the Front Face
onto the Base.
Attach the Front F
ace to the Base
using the two Triangle Brackets,
(the image shows one side only.)
As shown in the diagram the
y are
held on with four Small Bolts and
Serrated Washers.
Put the bolts in loosely to begin
with. Make sure the Front Face is
as far down as it can go and lean-
ing as far back as it can before
tightening the bolts up.
The Ladder attaches with the four
Long Bolts and four Small Flat
Washers supplied. (The image
shows two of the fi xing points, the
other two are on the other side.)
To line up the Ladder fi rst screw
the outer Large Bolts in loosely
then add the inner Large Bolts.
Only tighten the bolts once all four
are in position.
The End Skirt panel should join the
edges of the Small Side Panels,
but overlap the rear panel by one
rectangle.

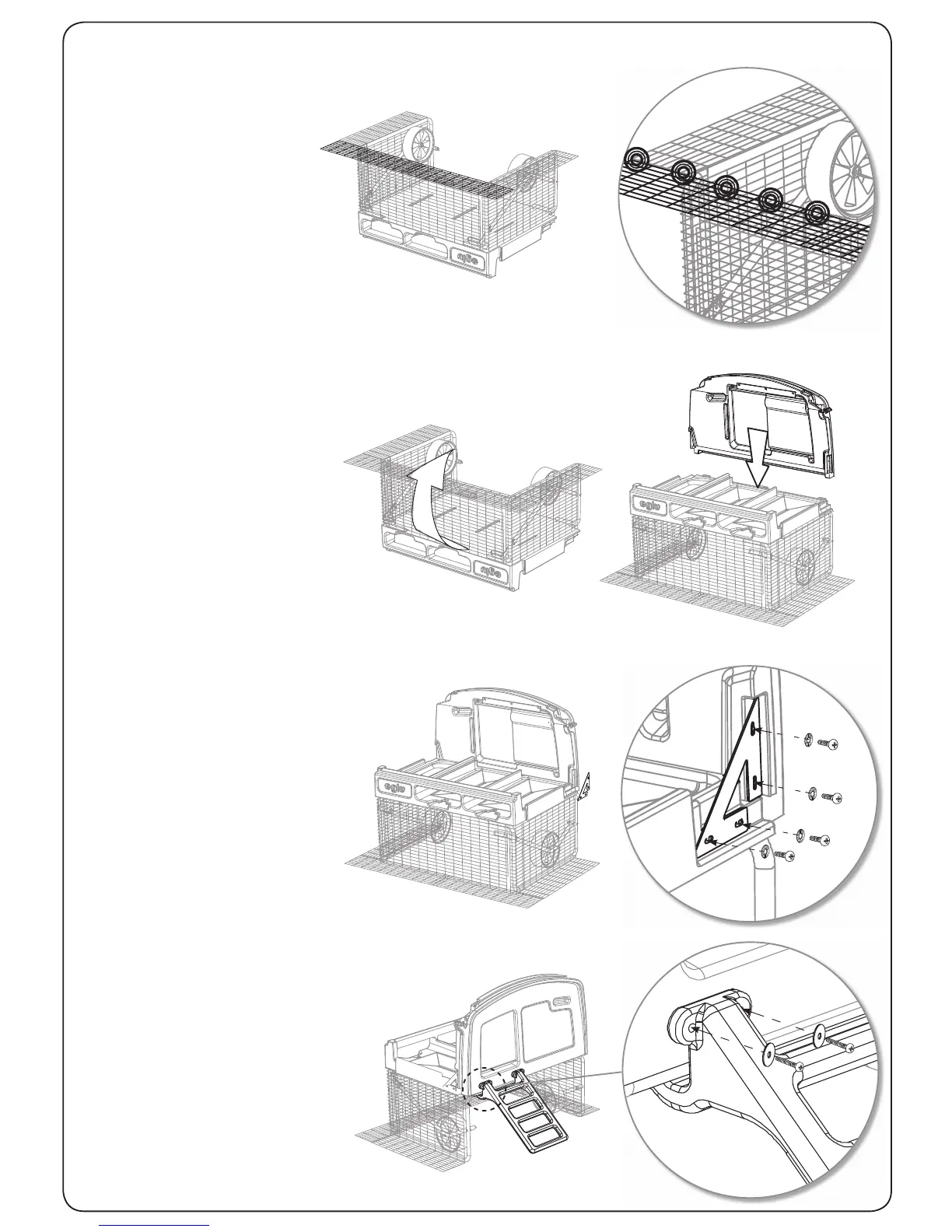

Step 6 - Clip the End Skirt to the Rear panel and Small Side Panels
Step 7 - Place the Front Face on to the Base
Step 8 - Attach the Triangular Brackets
Step 9 - Attach the Ladder
