OMNI-624/OMNI-624EU Installation and Setup Guide
5-2
1 3
2
4 6
5
7 9
8
#
0
STAY
INSTANT
BYPASS
CODE
ARM
AC / LB
READY
STAY
INST
LO BATT
SPRV.

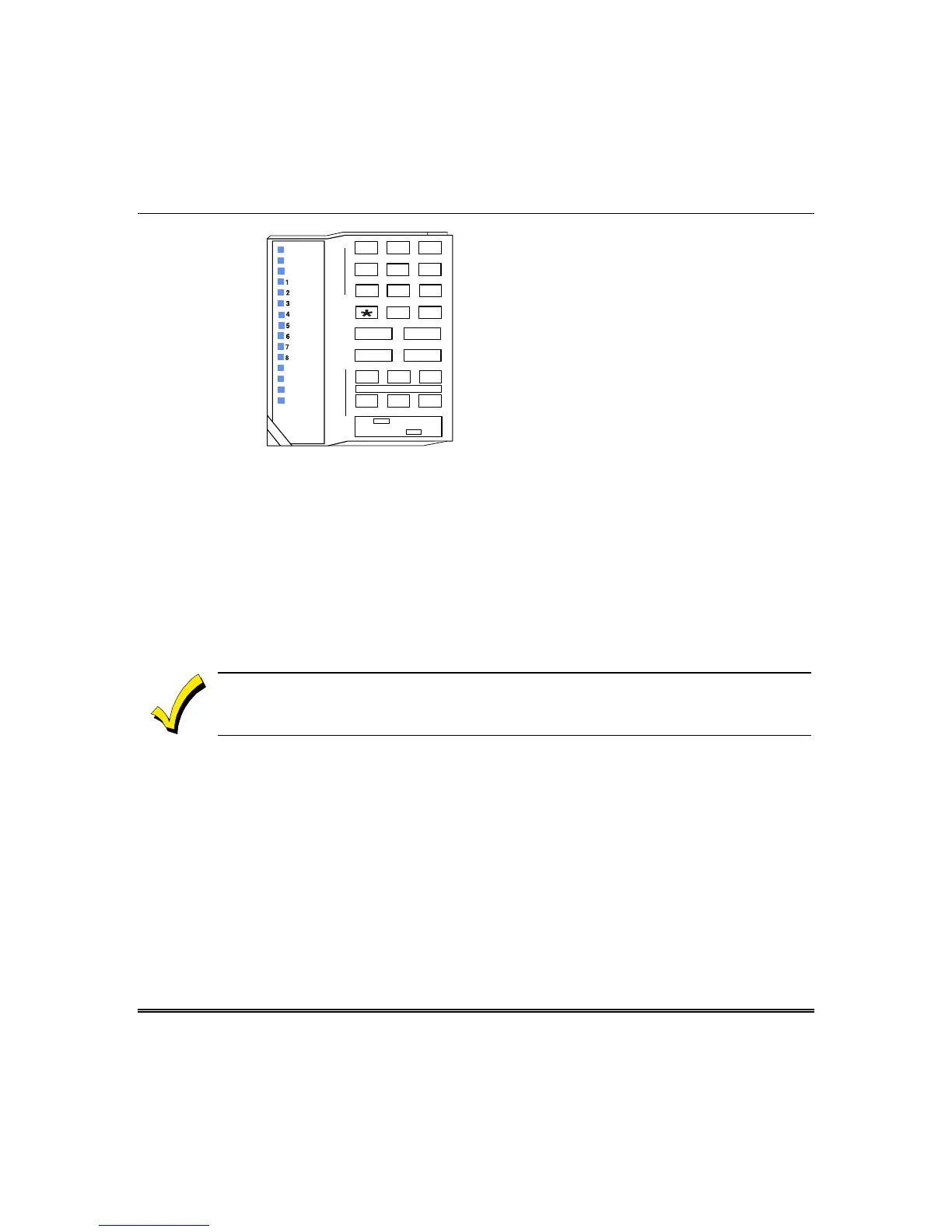

XK-108L/XK-108 LED Keypad
(Displays the state of up to 8 zones via LEDs)
1)
ZONE STATUS LEDS (XK-108L/XK-108)
These LEDs display the current zone status including alarms, bypasses, and faults. Each condition
will cause these LEDs to operate differently as follows:
ALARMS
Fast Blink (approx. 150mS ON – 150mS OFF).
TROUBLES
Slow Pulse (approx. 600mS ON – 600mS OFF).
BYPASSES
Blink (100mS ON – 900mS OFF). Zone bypasses are displayed as a very slow blink
of the zone LED light.
FAULTED ZONES
Solid ON. Faulted zones are the lowest-priority indication. Faulted
burglary zones are displayed with the LED solidly ON while the system is disarmed.
NORMAL
OFF
Upon entry, the keypad sounder will annunciate to warn the user to disarm the system. In
addition, the respective zone LED(s) will be ON to indicate zones which are violated (e.g., entry
door and motion detector).
2)
ARM/DISARM LED (ALL KEYPADS)
This LED/display indicates that the system is currently armed (ON) or disarmed (OFF).
Fast Blink Alarm mode (alarms have occurred)
Slow Blink Unable to communicate with central station
3)
STAY LED
This LED/display indicates that the system has been armed in the STAY, STAY/INSTANT, or
AUTO/STAY mode. STAY/INSTANT is enabled in programming Question 14, Location 1. The
STAY LED indicates the following:
ON Stay/AutoStay zones are bypassed
OFF Stay/AutoStay zones are normal
