13
Step 2. Connecting AC End Cables
Connect the AC end cables. We provide an AC connecter for each micro-inverter as
shown in Fig.10.

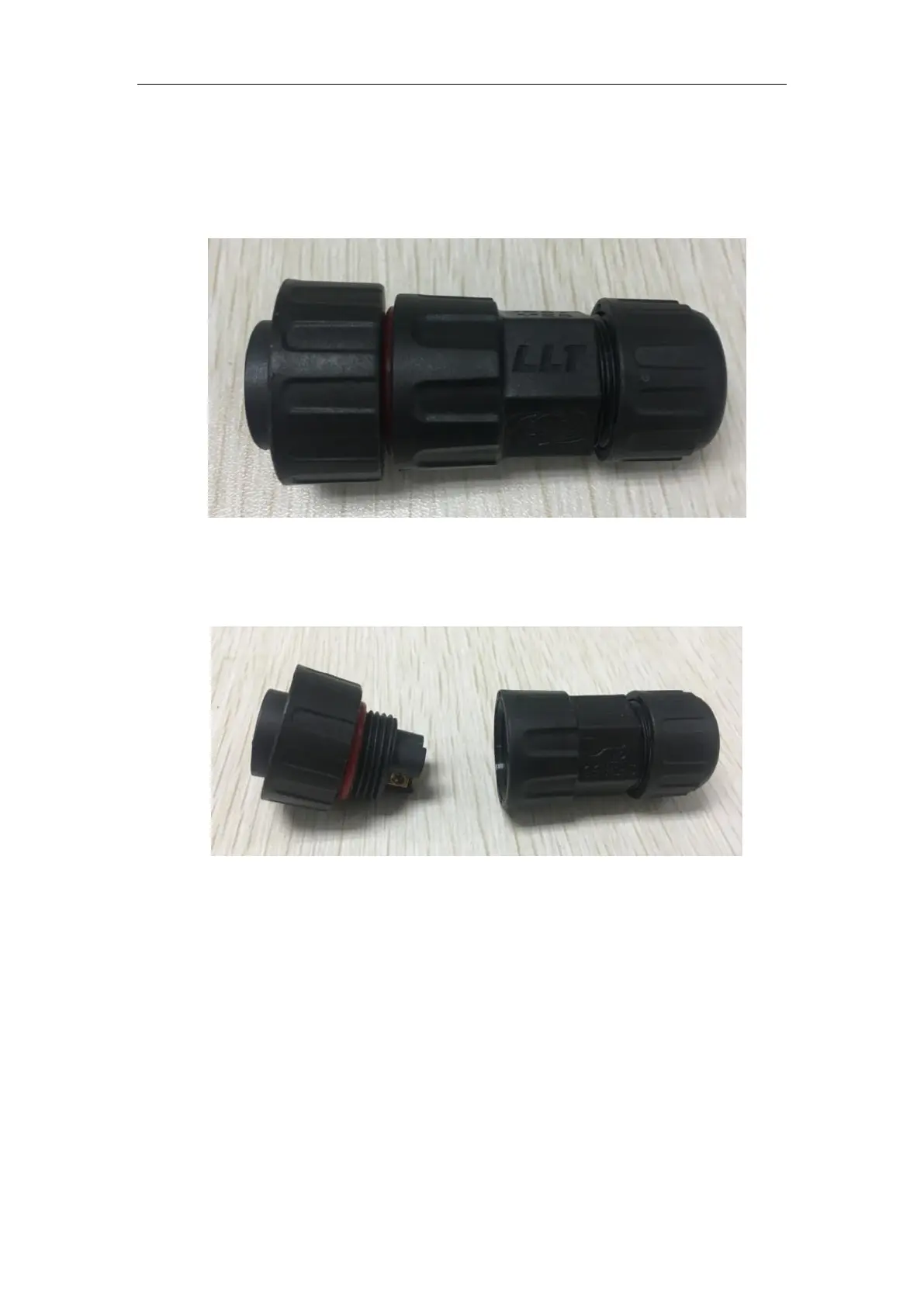

Fig.10. AC Connecter
Separate the AC connecter as shown in Fig.11.
Fig.11. Separate the AC connecter
Use 12 AWG (4mm
2
) copper wire for AC end cables. Use only solid wire or stranded
wire.
The definition of the AC connecter is shown in Fig.12.
Port 1(Brown/Red): Live
Port2(Yellow-Green): Ground
Port3(Blue/Black): Neutral
