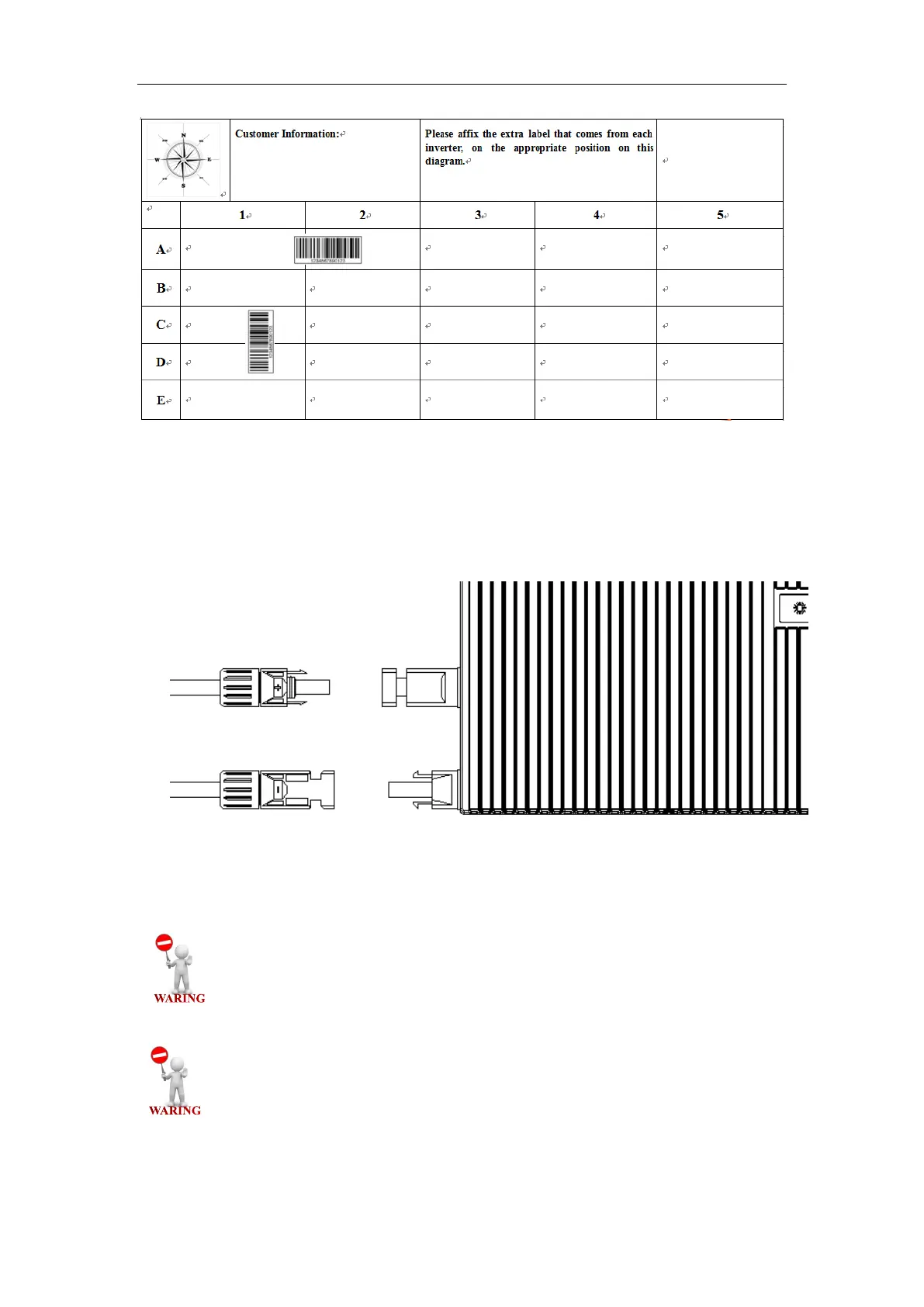

Fig.33. System Map (SMP600)
Step 6. Install Photovoltaic Modules
Install the photovoltaic modules, and connect the DC cables of the modules to the
corresponding DC input side of the Micro-inverter.
Fig.34. Connect DC Cables
The recommended installation needs keeping the Micro-inverters
underneath the photovoltaic modules, so that the Micro-inverters can
operate in the shade. Direct sunlight may cause damage to the Micro-
inverters.
Each module must be connected to the Micro-inverters with a DC
cable having a length of less than 3m.
