Omron 3G3MX2 Series Connection Guide

7. Connection Procedure
2

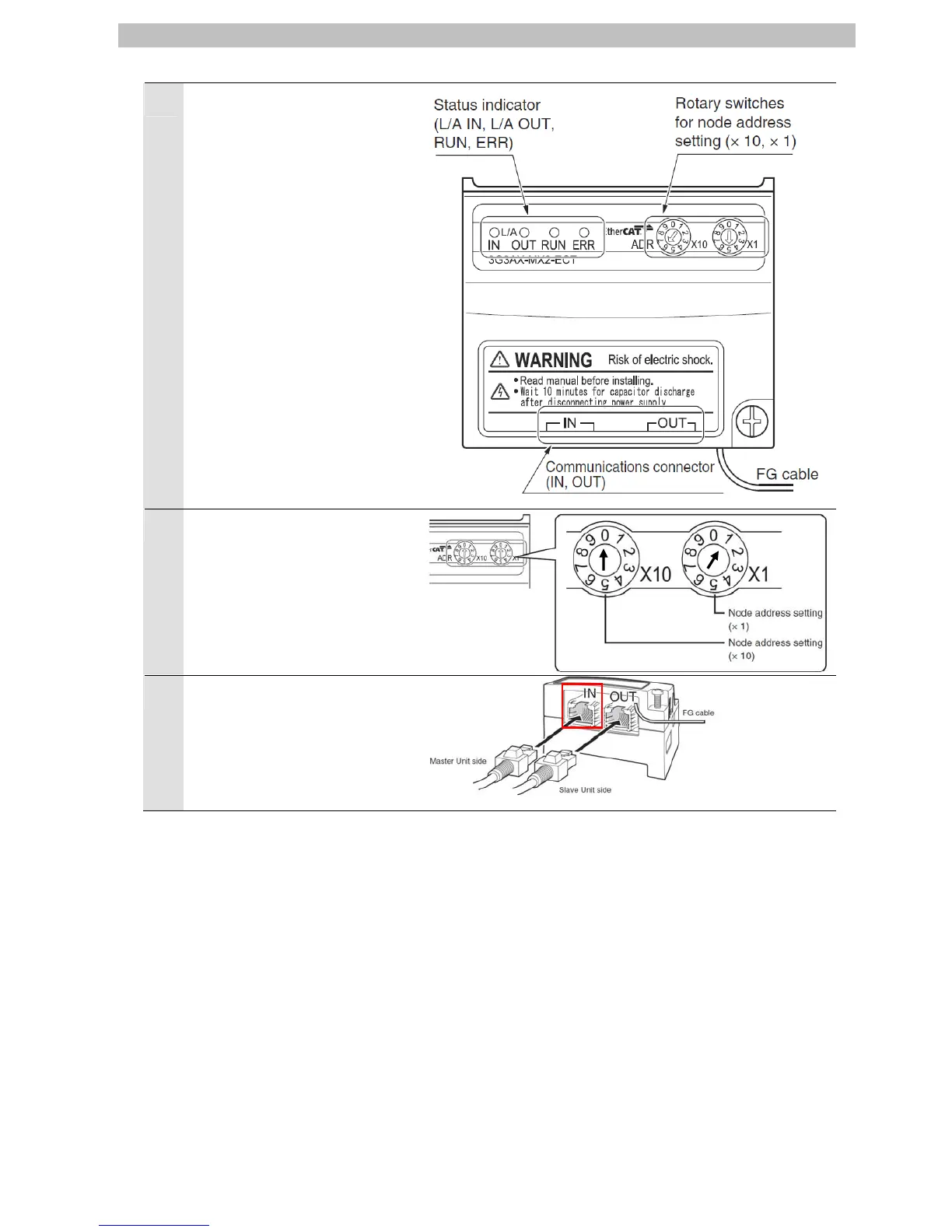

Refer to the right figure and
check the hardware switches on
the EtherCAT Communications
Unit.
3
Set the node address setting
switches to "01".
*Set the node address to "1".
4
Connect the communications
cable to Communications
connector (IN).
In this document, OUT side is not used.
11

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
