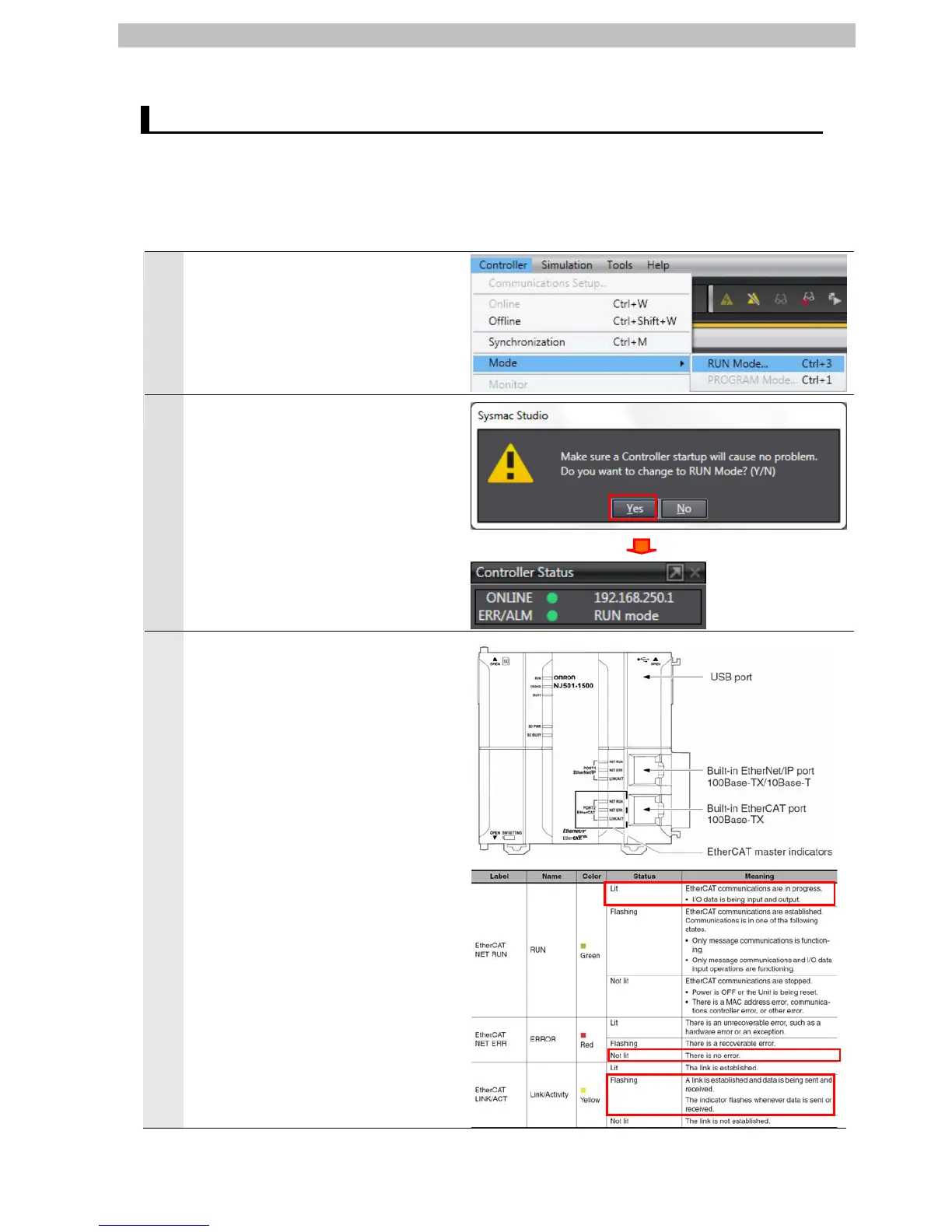

7. Connection Procedure
7.4. Connection Status Check
Check the connection status of the EtherCAT network.
7.4.1. Checking the Connection Status
Check that the EtherCAT communications are performed normally.
1
Select Mode - RUN Mode from the
Controller Menu.
2
A confirmation dialog is displayed.
Click the Yes Button.
Check that the controller status on the
Toolbox was changed to the RUN
mode.
3
Check the LED indicators on the
Controller to confirm if EtherCAT
communication is normally performed.
LED indicators in normal status.
[NET RUN]: Lit green
[NET ERR]: Not lit
[LINK/ACT]: Flashing
24
