BU1002SW / BU3002SW
21
1
2
3
4
5
6
7
8
9
10

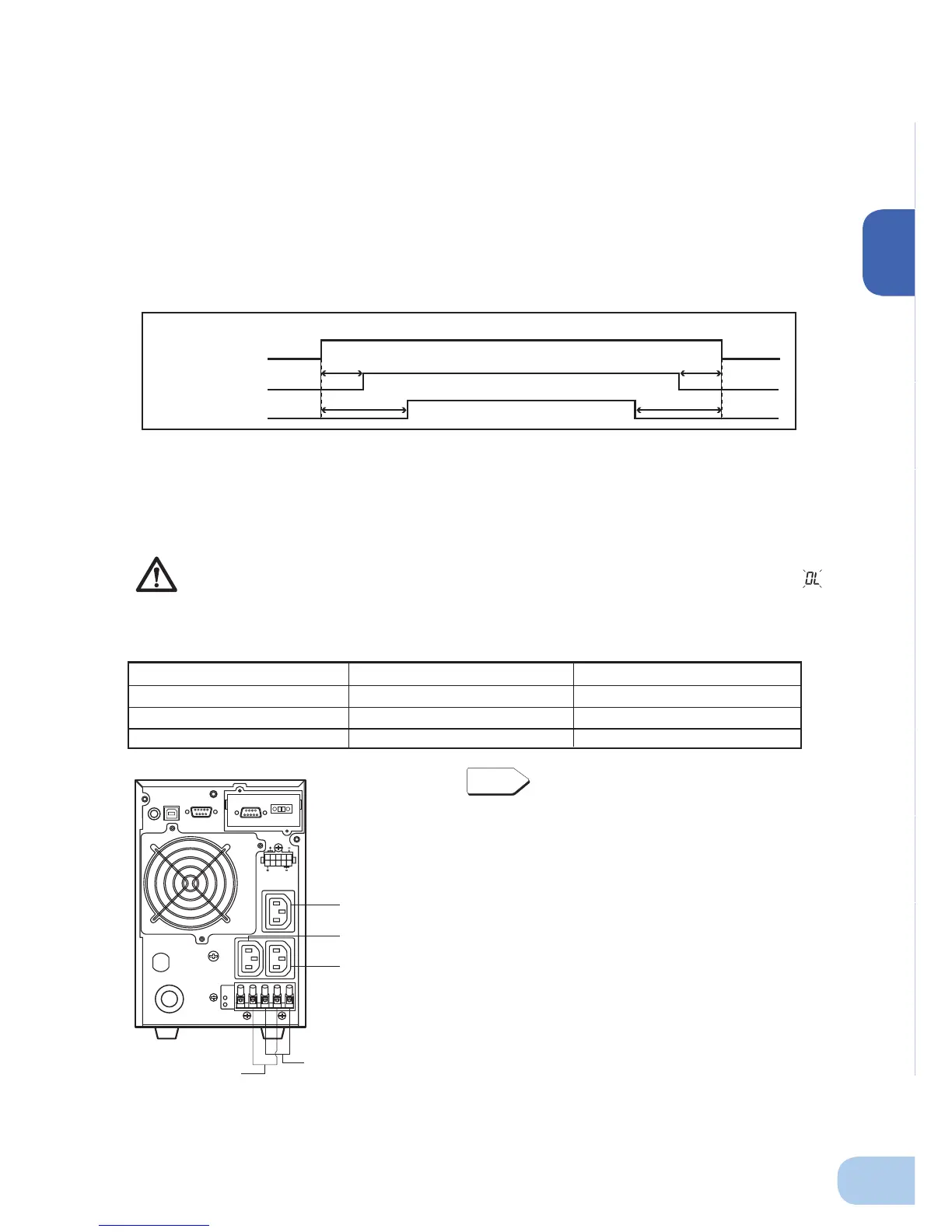

2-3-1 Connecting a device to the power supply output (BU1002SW)
(1) Connect devices that require backup to the unit's power supply output receptacle or output terminal
block.
Group A
Group B
Group B
Group C
Group C
Make sure that the total capacity of the devices connected to the output receptacle does
not exceed the output rated capacity of the BU1002SW. If the overload indication (
) is
displayed, reduce the number of connected devices.
BU1002SW (Rated value of output capacity: Max. 1kVA/700W)
“Power supply output” group Output receptacle Output terminal block
Group A C13: 1 (Rated capacity: 15A) –
Group B C13: 1 (Rated capacity: 15A) 1 line (Rated capacity: 20A)
Group C C13: 1 (Rated capacity: 15A) 1 line (Rated capacity: 20A)
Power supply output group A
Output ON
Time setting
Time setting
Time setting
Time setting
Output OFF
Power supply output group B
Power supply output group C
Group control of power supply output
See Page 20
See also
* In the factory setting, the time is set to 0 second.
2. Power supply output group B, C
•
The output start times for power supply output group B and C are independent of power supply out-
put group A, so they can be delayed or set to precede the output stop time.
•
The output start/stop time control funtion is available when using the included “PowerAct Pro” UPS
monitoring software, “UPS Power Manager” or “SNMP/Web card”.
•
Output ON/OFF can be controlled with the included UPS monitoring software while the
BU1002SW
is
operating.
•
The delay settings and ON/OFF control described here can be performed independently for power
supply output group B and power supply output group C.
This function can be used to set the startup order of servers, peripheral devices, etc.
The output receptacles can also be forcibly turned ON/OFF remotely.
To Next Page
