Setting Tag Data Links Section 6-2

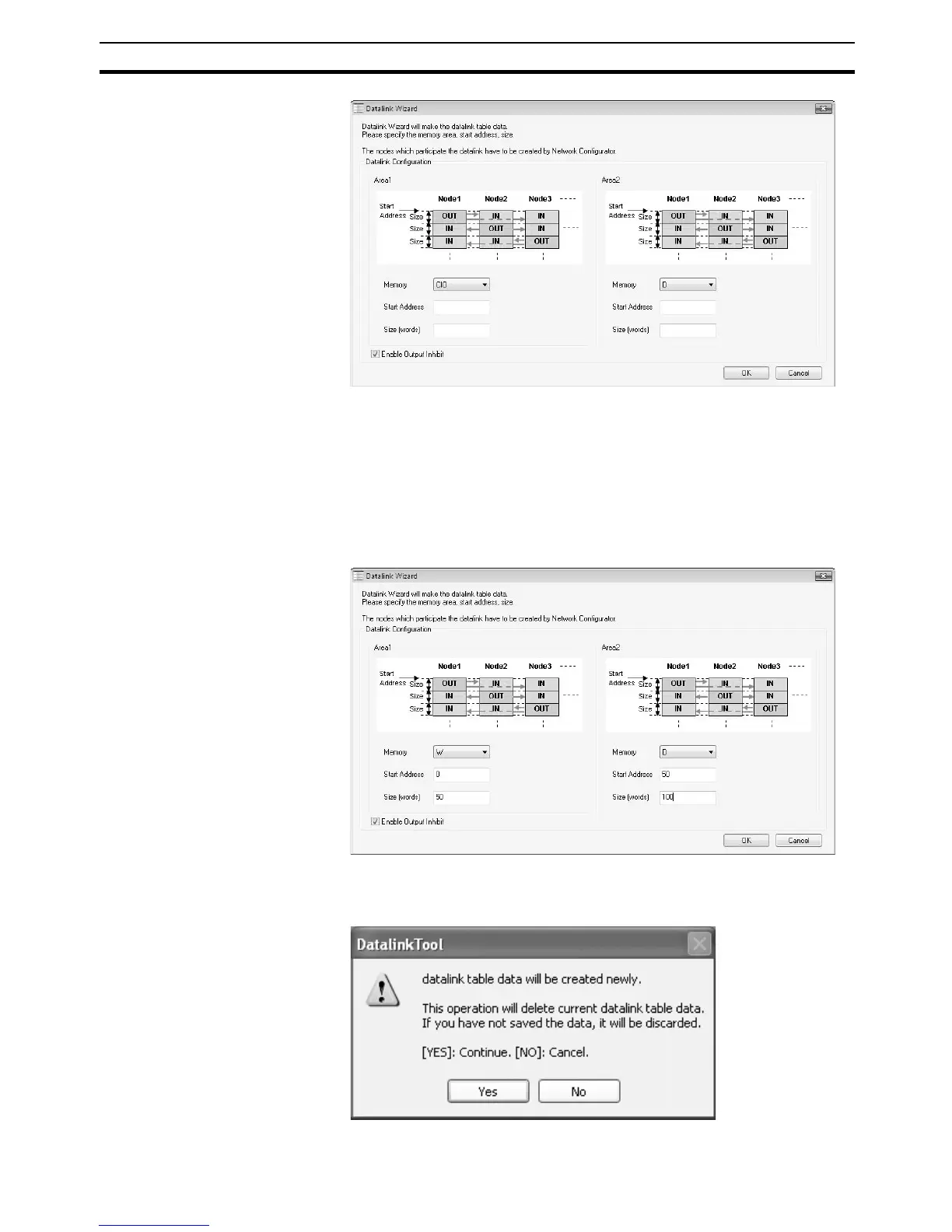

2. Select the memory area (here, W) in the Memory Field and enter the start-
ing address (here, 0) and number of words (here, 50) in the Start Address
and Size Fields for Area 1.
3. Select the memory area (here, D) in the Memory Field and enter the start-
ing address (here, 50) and number of words (here, 100) in the Start Ad-
dress and Size Fields for Area 2.
4. Select the Enable Over Load Check Box if the Over Load function is nec-
essary.
5. Click the OK Button. The following dialog box will be displayed.
Click the Yes Button to continue creating the data link table, or click the No
Button to cancel the operation.
