155
Setting Tag Data Links Section 6-2

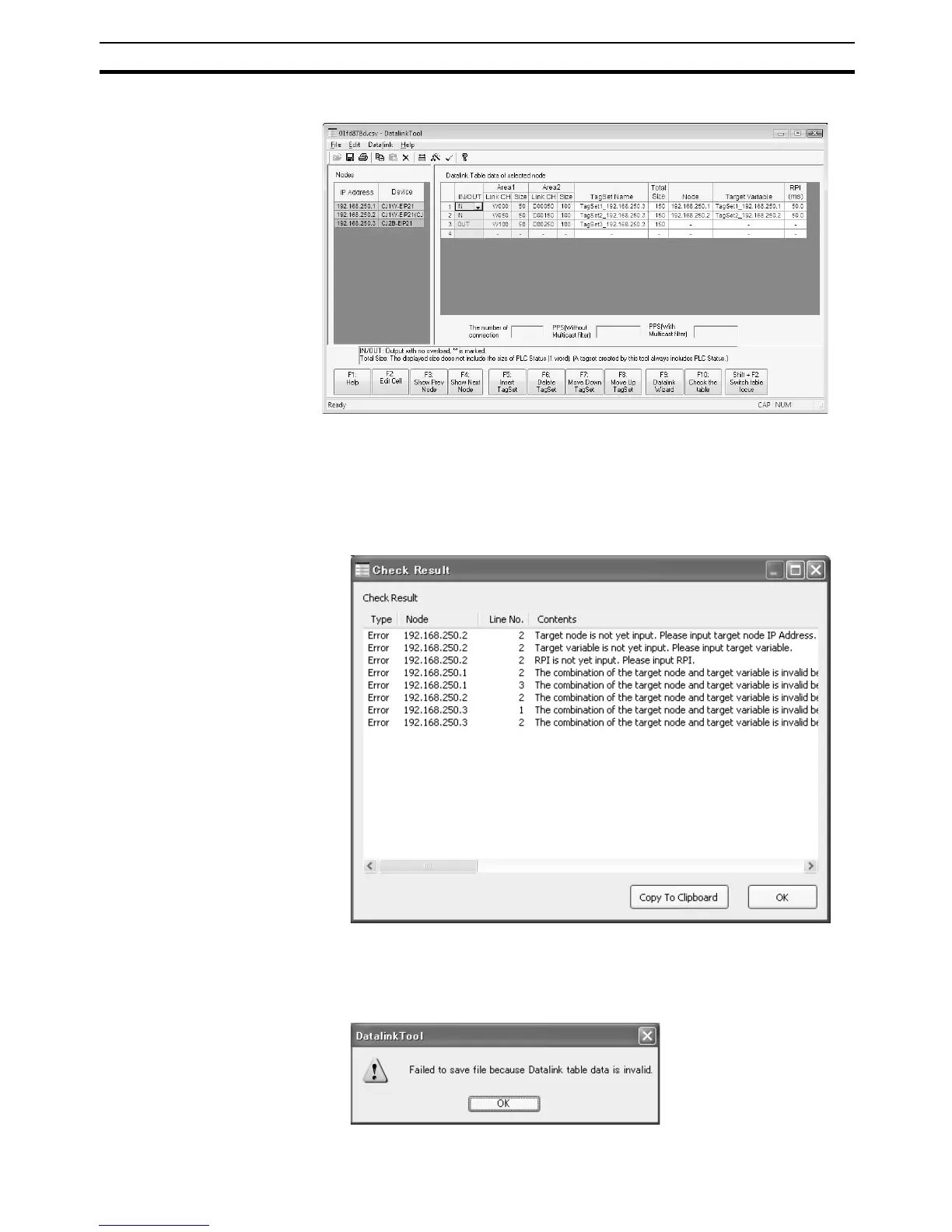

Automatic Allocation Results for Node 3 (IP Address: 192.168.250.3)
6. After entering all of the settings in the data link table, select Save from the
File Menu. A consistency check will be performed on the table and the re-
sults will be displayed.
a. Table Inconsistencies
The following Check Result Dialog Box will be displayed. Correct the data
link table according to the displayed information.
To save the check results, click the Copy To Clipboard Button and paste
the results to other file, such as the text pad.
Click the OK Button. The following message will be displayed. Click the OK
Button again to return to the EtherNet/IP Datalink Tool Window.
