Setting Tag Data Links Section 6-2
• If there is no applicable input tag set at the originator, you can create
a new one by using the Edit Tag Sets Button and Edit Tag Button.
b. Using Other EtherNet/IP Devices as Target
The connection I/O type list box in the upper part of the Connection
Settings Dialog Box displays the connection I/O types that can be se-
lected. Select the connection I/O type according to your application.
• The connection I/O types that can be selected depend on the target
device.
• Items that can be selected will depend on the connection I/O type that
is selected.
• Select the output, input, or both output and input tag sets at the target
and specify the corresponding input, output, or both input and output
tag sets at the originator.
• If there is no applicable tag set at the originator, you can create a new
one by using the Edit Tag Sets Button and Edit Tag Button.

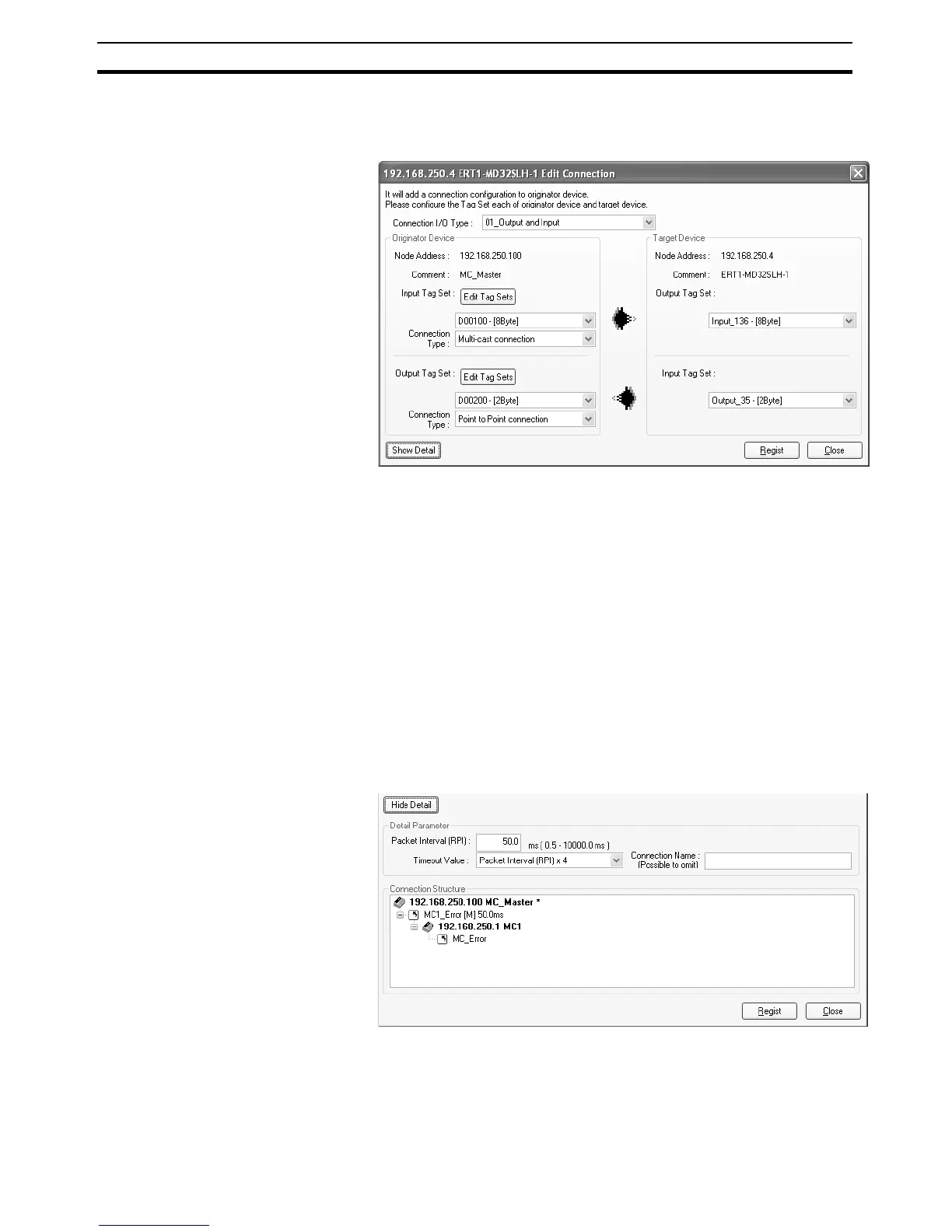

The following display will appear when you click the Show Detail But-
ton.
The specified values for detailed parameters will be displayed. Change
the values as required. Connection names are automatically created
using the following rule.
default_N (where N is a 3-digit number (001, 002, etc.) starting from 1)
