164
Setting Tag Data Links Section 6-2

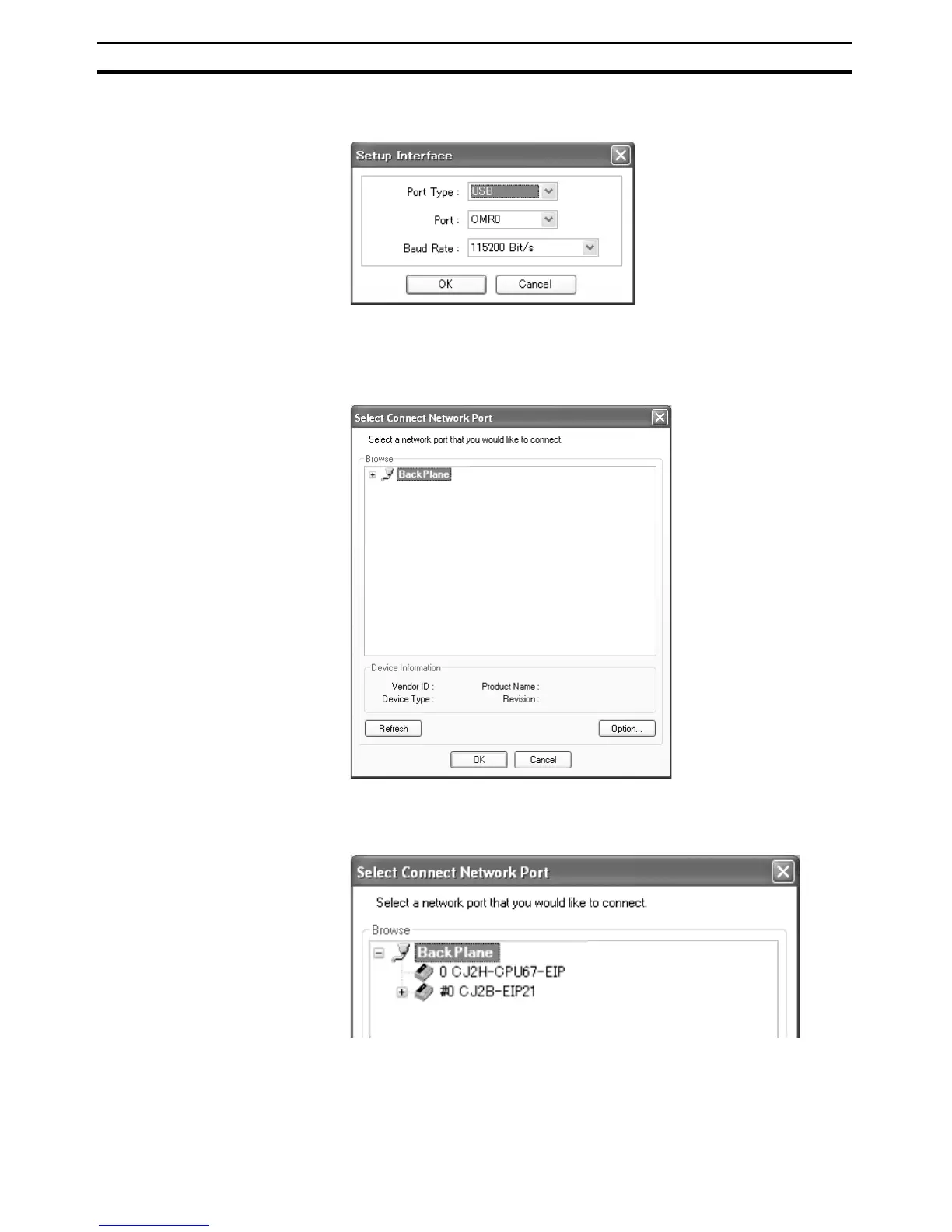

2. Select Network - Connect. The Setup Interface Dialog Box will be dis-
played.
3. Set the port type to either USB or serial.
4. Set the port to use and then click the OK Button. (Leave the baud rate at
the default setting.)
The following dialog box will be displayed.
5. Select the Backplane Icon and click the Refresh Button.
The CPU Unit, CPU Bus Units, and Special I/O Units connected in the PLC
will be displayed as shown below.
6. Click the + icon to the left of the EtherNet/IP Unit or built-in EtherNet/IP port
(CJ1W-EIP21(CJ2) or CJ2B-EIP21). The TCP ports on the EtherNet/IP
Unit will be displayed as shown below.
To Next Page
