Tag Data Link Parameters Section 3-9

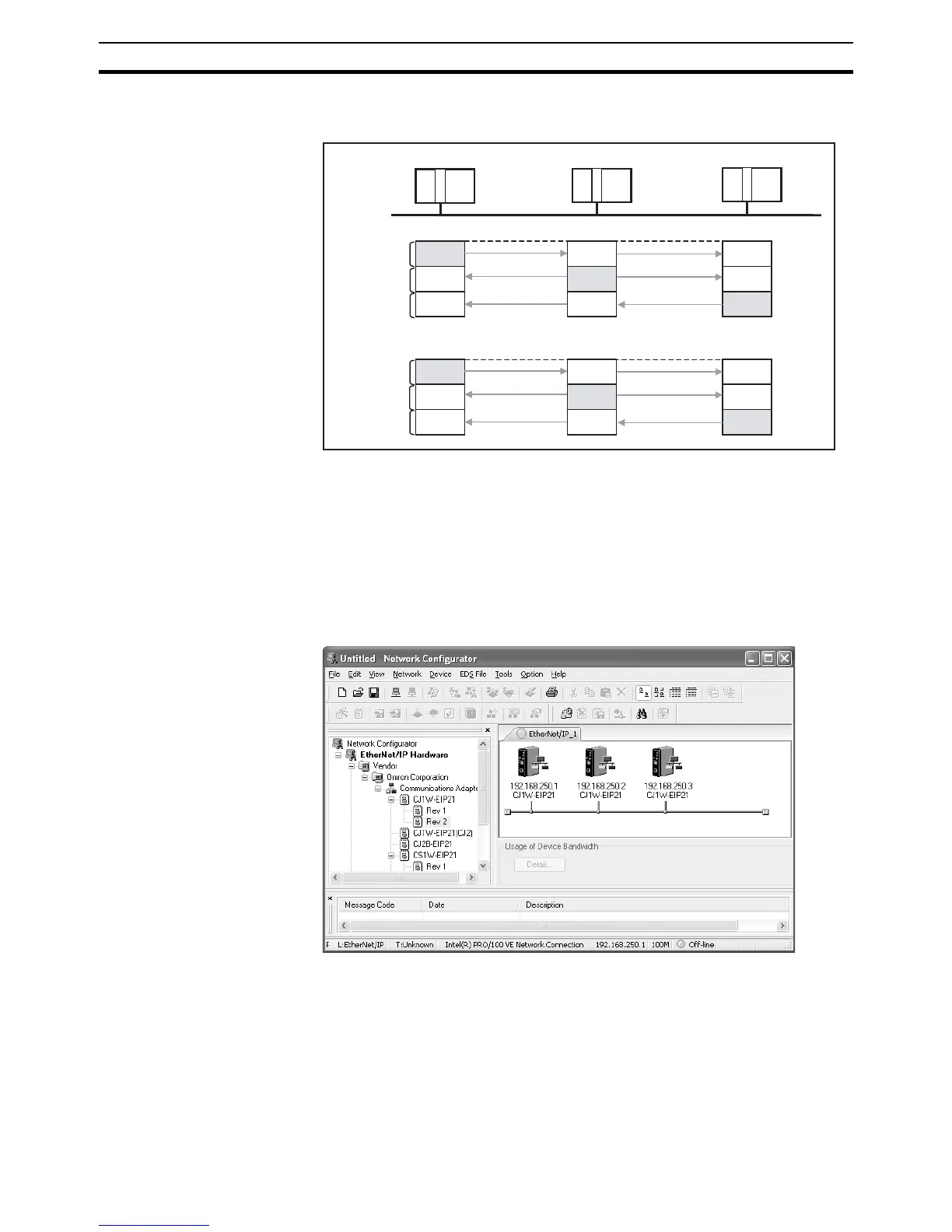

The following method can be used to easily set the data links shown in the fol-
lowing figure using a wizard in the EtherNet/IP Datalink Tool.
1,2,3... 1. Start the Network Configurator, select the applicable EtherNet/IP Unit in
the Tree View on the left, and then paste it into the Device Configuration
Pane on the right.
Note If an EtherNet/IP system has already been installed, you can create a similar
device configuration by connecting to the EtherNet/IP network and selecting
Network
−
Upload from the menus.
Refer to 6-2-9 Connecting the Network Configurator to the Network for infor-
mation on connecting.
2. Select Network
−
EtherNet/IP Datalink Tool from the menus to start the
EtherNet/IP Datalink Tool.
#1
#2
#3
#1
#2
#3
#3
#1
#2
#3
#1
#2
#2
#1
#3
#2
#1
#3
EtherNet/IP
W0
W0
D50 D50
Node #1: CJ1H-CPU67H
(IP address: 192.168.250.1)
Node #2: CJ1H-CPU67H
(IP address: 192.168.250.2)
Node #3: CJ1H-CPU67H
(IP address: 192.168.250.3)
Area 1
W0
50 words
W50
50 words
W100
50 words
Area 2
D50
100 words
D150
100 words
D250
100 words
To Next Page
