Tag Data Link Parameters Section 3-9

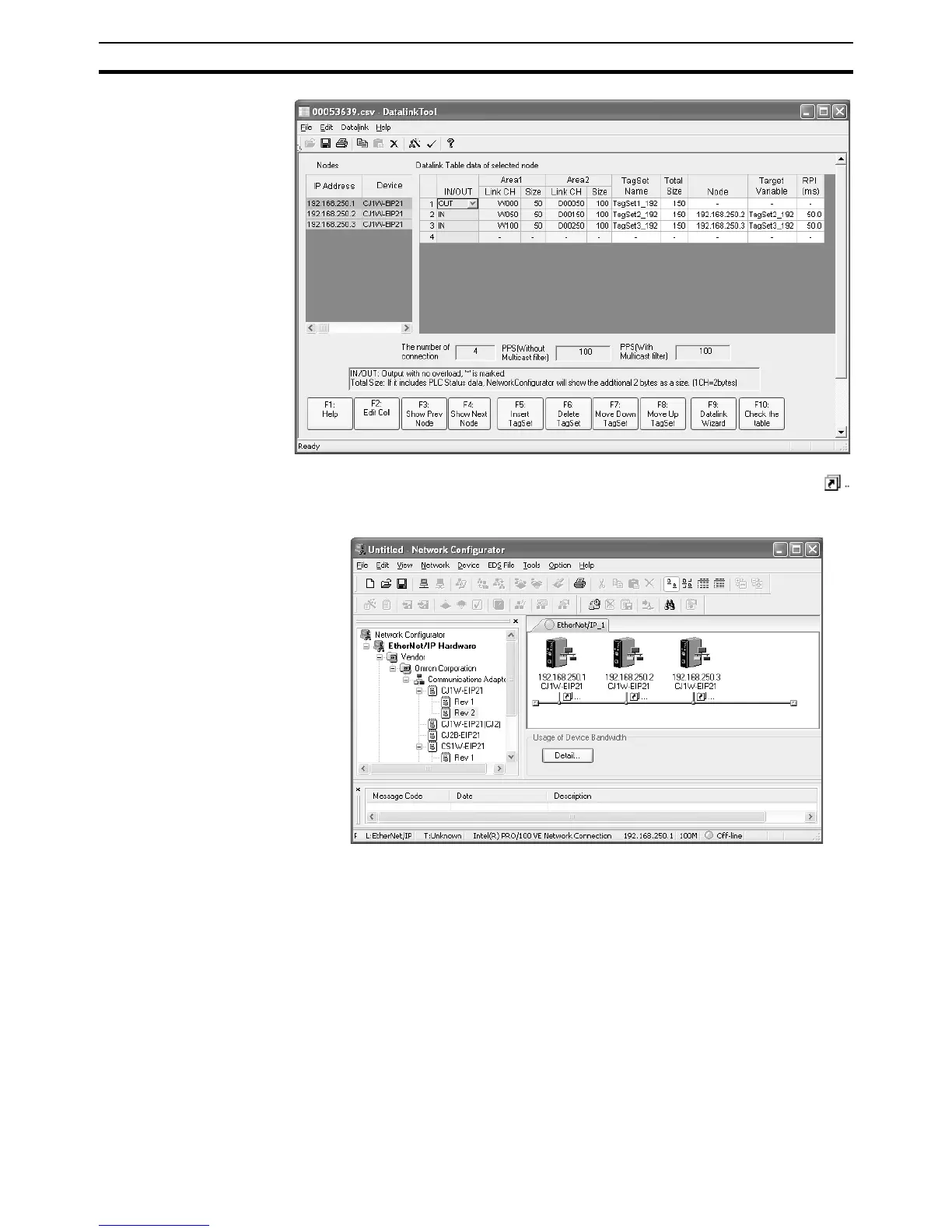

6. In the Device Configuration Window of the Network Configurator, a
mark will be added to each EtherNet/IP Unit to show that data links have
been set.
7. Connect the Network Configurator to the EtherNet/IP network and select
Network
−
Download from the menus. The data link settings will be down-
loaded to the EtherNet/IP Units, and the data links will operate.
