Omron CK3E Series Startup Guide

60
6

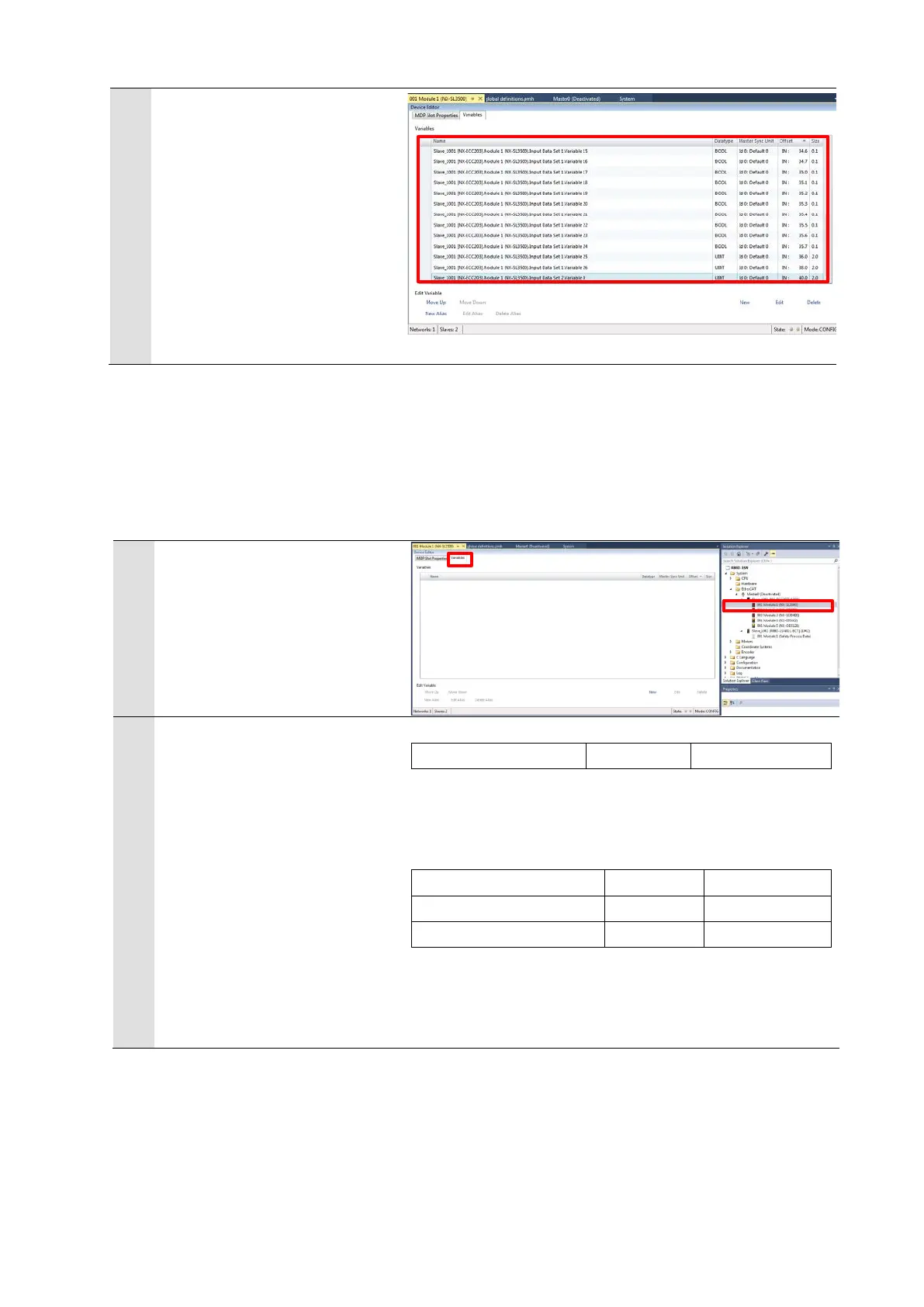

Checking Input Data
Make sure that the settings
(Input) in the Variables tab page
are correct.
(3) Setting Output Data
Register the following output data.
- Slot1(NX-SL3500)Output Data Set1
- Slot1(NX-SL3500)Output Data Set2
7
Select a safety controller in the
Solution Explorer pane of Power
PMAC IDE.
Display the Variables tab page.
8
[Slot1(NX-SL3500)Output Data
Set1]
Registering Node1/Unit2
(NX-SID800)
Click New in the Variables tab
page, and register 4 variables
shown on the right.
FSoE Master CMD
#x7020:01
USINT
Group: Module 1(NX-SL3500).Output Data Set 1
Datatype: USINT
Count: 1
Safety Output 1st Word
#x7021:01
UINT
FSoE Master CRC_0
#x7020:03
UINT
FSoE Master Conn_ID
#x7020:02
UINT
Group: Module 1(NX-SL3500).Output Data Set 1
Datatype: UINT
Count: 3
