Omron CP1L Application And Setup Guide

Section 3: Ethernet to Serial Adapter Setup
The CP1W-ETN01-US is assigned a default IP address of 192.168.250.11. The IP
address can be changed using a web browser pointed to the IP address of the adapter.
A static IP address must be assigned to the PC’s Ethernet card for this purpose. Simply
enter the IP address of the adapter (192.168.250.11) in the web browsers address field
to access the configuration page.

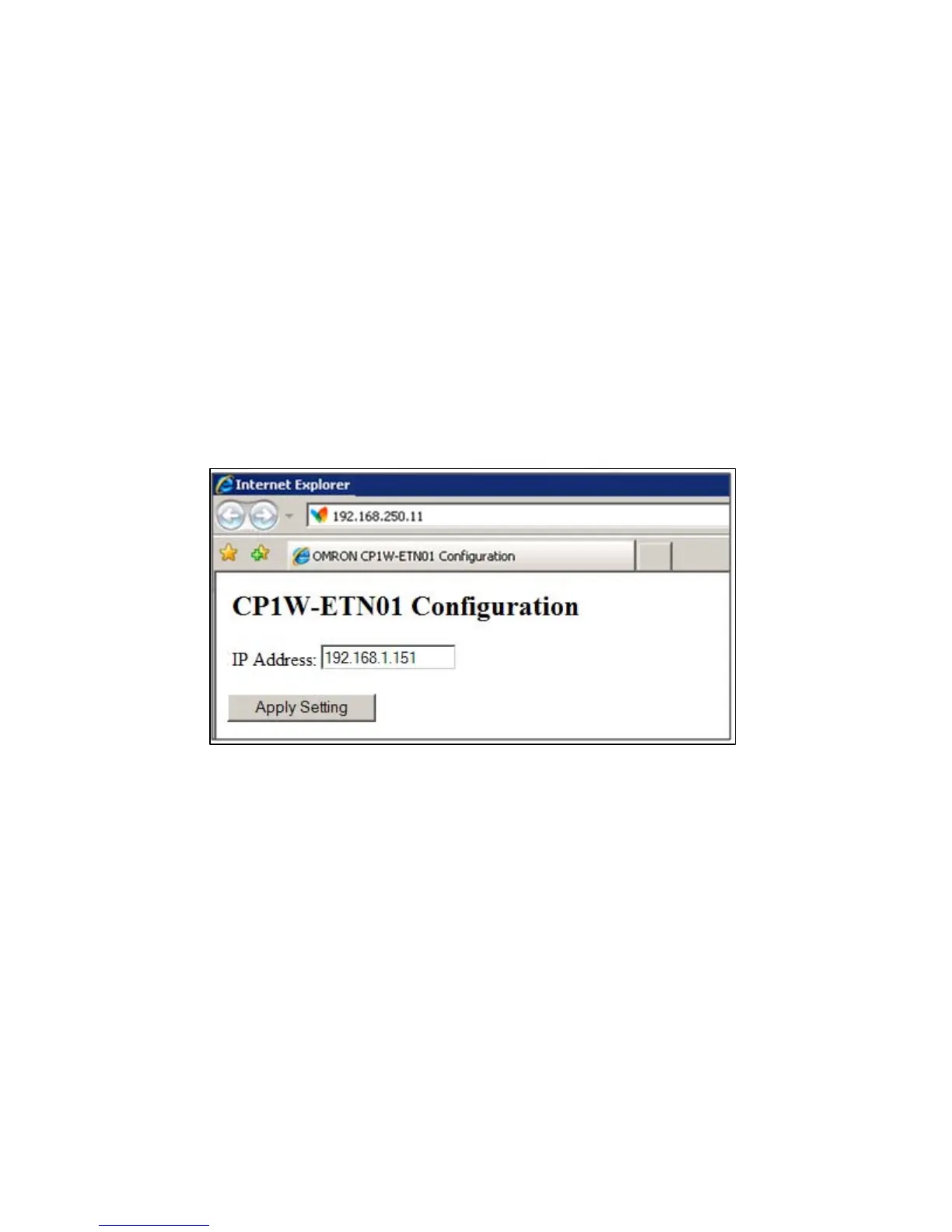

If you would like to change the IP address of the adapter then enter the desired new IP
address (192.168.1.151 shown as an example), then click Apply Setting. Please
remember to take note of the new IP Address of the adapter (if you changed it).
Page 4 of 8

Omron CP1L Specifications

General

Model	CP1L
Data Memory Capacity	32K words
Program Capacity	10K steps
Communication Ports	USB, RS-232C
Expansion	I/O
Pulse Output	100 kHz
Built-in I/O	Digital I/O
Expansion Slots	Supports up to 3 expansion units
Operating Voltage	100-240 VAC or 24 VDC (varies by model)
Operating Temperature	55 degrees Celsius
Storage Temperature	75 degrees Celsius
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
Shock Resistance	147 m/s^2, 3 times in X, Y, and Z directions
