Omron CP1L Application And Setup Guide

Section 2: Applications
The CP1W-ETN01-US is an Ethernet to Serial adapter that has been designed to allow
the use of a single operator interface terminal (NS, NSA, Indusoft) as well as a single
instance of CX Programmer to communicate simultaneously to a CP1H or CP1L PLC.
The adapter will not support more than 2 simultaneous connections.
PLC to PLC communications using Ethernet are not possible, as the adapter only
functions as an Ethernet slave device.

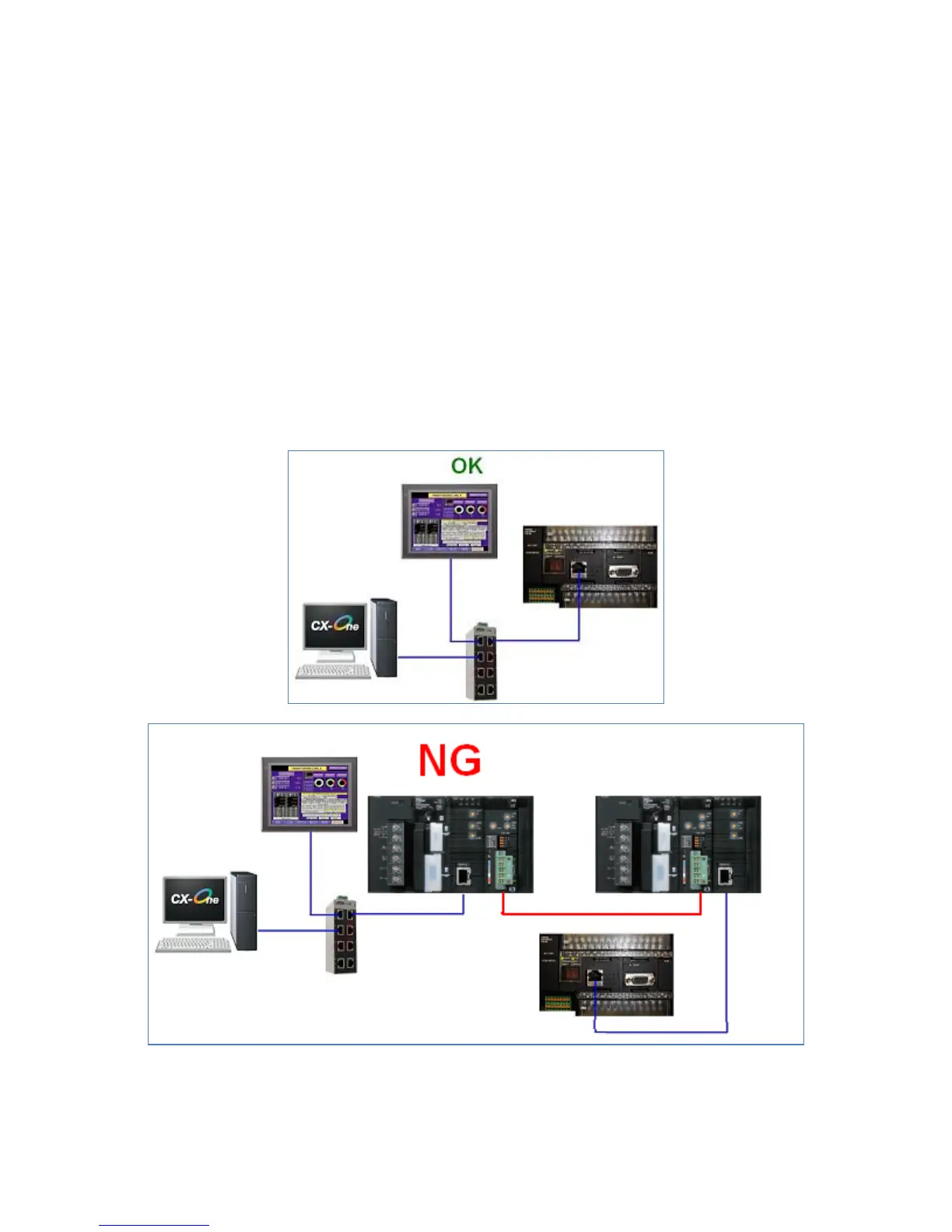

Unlike Omron Ethernet modules for CS / CJ PLCs, the CP1W-ETN01-US is not capable
of routing messages through multiple FINS networks. The CP1W-ETN01-US must
communicate with a PC / NS HMI that is on the same FINS network as the PLC adapter
itself.
Page 3 of 8

Omron CP1L Specifications

General

Model	CP1L
Data Memory Capacity	32K words
Program Capacity	10K steps
Communication Ports	USB, RS-232C
Expansion	I/O
Pulse Output	100 kHz
Built-in I/O	Digital I/O
Expansion Slots	Supports up to 3 expansion units
Operating Voltage	100-240 VAC or 24 VDC (varies by model)
Operating Temperature	55 degrees Celsius
Storage Temperature	75 degrees Celsius
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
Shock Resistance	147 m/s^2, 3 times in X, Y, and Z directions
