52
Caution Abide
by the following precautions when wiring the Power Supply Units. Failure
to
abide by these precautions my cause faulty operation or damage to the Unit.
• Be
sure that no wire clippings or other foreign materials enter
the Units when
wiring.
• Provide circuit breakers and other protective devices to protect the system
again external short circuits.
• Check and recheck all wiring before supplying power to the system.
• After
wiring the terminals check the terminal block
to be sure it is firmly locked
in place.
Power Requirements A
CV
-series PC consumes up to 200 V
A per Rack. Power consumption varies
with
the system configuration (refer to
3-4-6 Current Consumption
). When pow
-
er
is applied, a surge current five times the steady-state current will flow to the
PC.

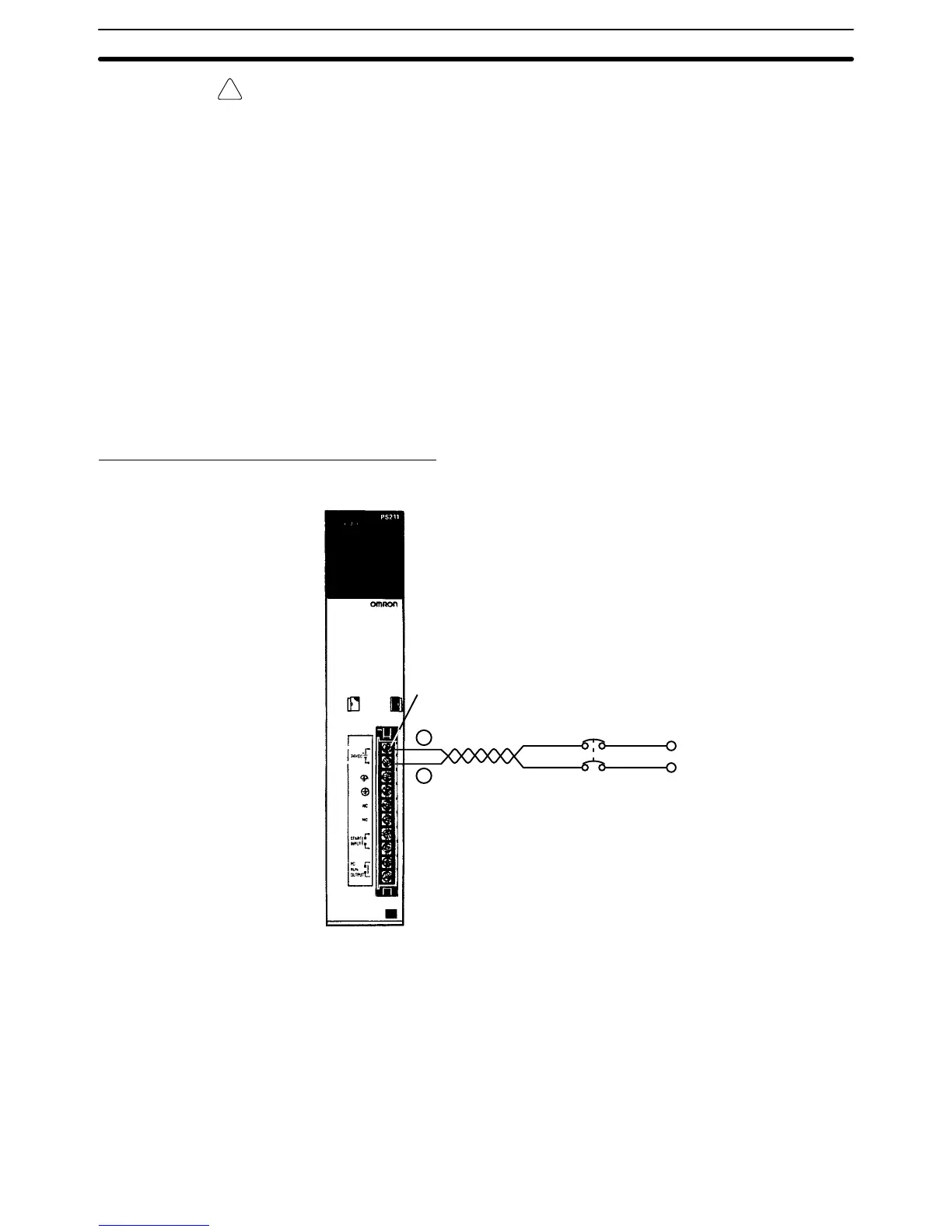

DC Power Supply Units: CV500-PS211
Screw
(3.5 mm head with
self-raising pressure plate)
Power Line
• Use A
WG 14
twisted-pair cable
(cross-sectional area: 2
mm
2
min.)
•
Do not reverse polar
-
ity.
DC power source
•
Supply 24 VDC
•
Keep voltage fluctuations
within the specified range
(refer to
Appendix B Specifi
-
cations
)
Breaker
+
–
Power Requirements A
CV
-series PC can consume up to 100 W of power per Rack. Power consump
-
tion
varies depending on the system configuration (refer to
3-4-6 Current Con
-
sumption
). When power is applied, a surge current several times the
steady-state current will flow to the PC.
Internal Fuse Do
not turn on power to the
DV Power Supply Unit while the 5-V output terminals
are closed. If power is supplied when the 5-V output terminals are closed, the
internal fuse may blow.
Power Supply Units Section 3-4
