F-28 Enclosed Switch D4C

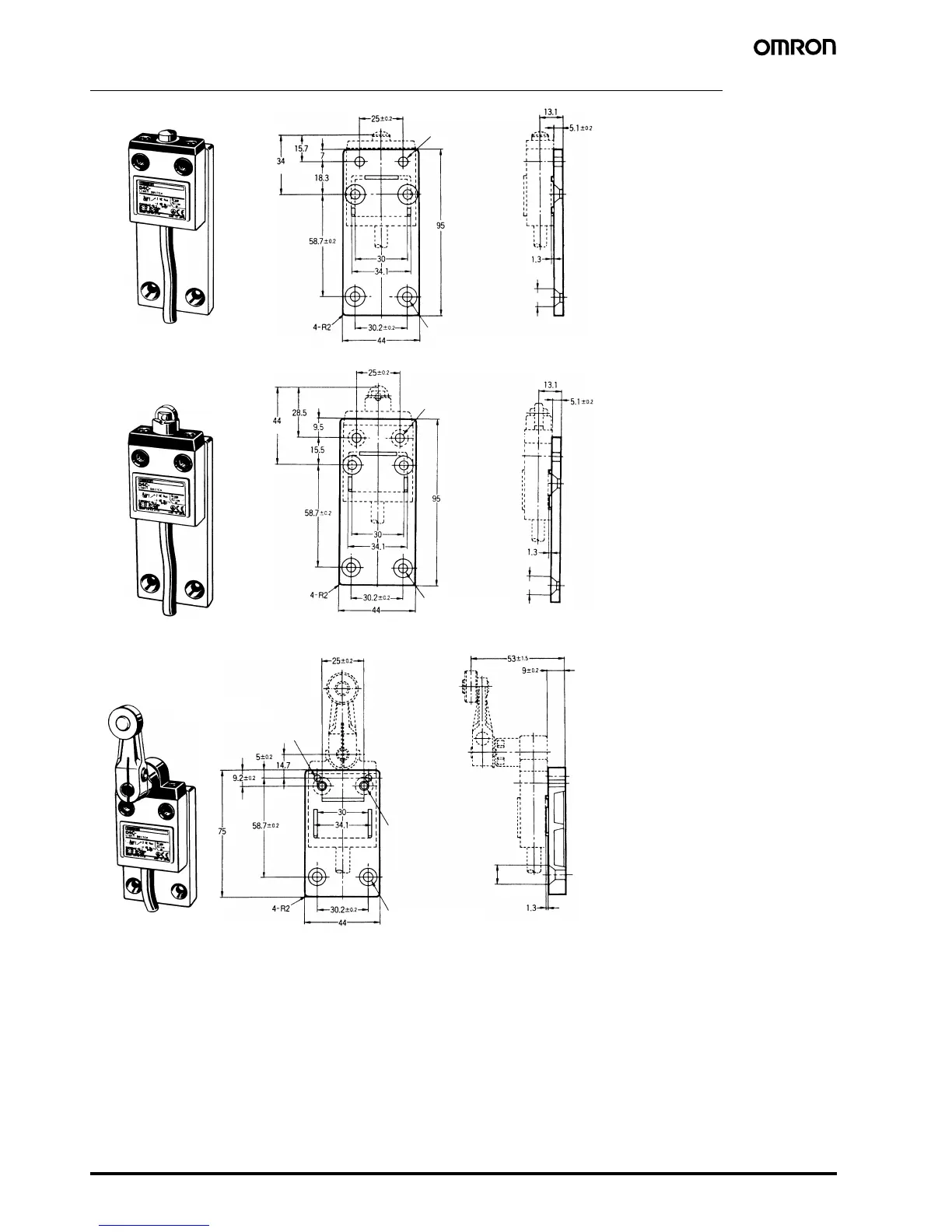

Special Mounting Plates (Plates are not provided with Limit Switches.)
Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
OP of WLD
Spring pins
OP of WLD2
Four, 5.2
+0.2
dia. holes (see note 1)
−0
11 dia.
11 dia.
11 dia.
D4C-P001
D4C-P002
D4C-P020
Two, M5 x 0.8 tapped hole
(see note 2)
Note:
Four, M5 x 0.8 hexagon pan-head bolts and
two M5 x 0.8 Allen-head bolts are provided.
−0
Note: 1.
Tighten the 5.2
+0.2
dia. holes with the M5
x 10 hexagon pan-head screws.
2.
Insert the M5 Allen-head bolts into the
M5 tapping holes to tighten the Mount-
ing Plate securely.
Note:
Four, M5 x 0.8 hexagon pan-head bolts and
two M5 x 0.8 Allen-head bolts are provided.
−0
Note: 1.
Tighten the 5.2
+0.2
dia. holes with the M5
x 10 hexagon pan-head screws.
2.
Insert the M5 Allen-head bolts into the
M5 tapping holes to tighten the Mount-
ing Plate securely.
Two, M5 x 0.8 tapped hole
(see note 2)
Four, 5.2
+0.2
dia. holes (see note 1)
−0
−0
Two, 4.2
+0.12
dia. positioning holes
(Press-fit the spring pins.)
Two, M5 x 0.8 tapped hole
(see note 2)
−0
Two, 5.2
+0.2
dia. holes (see note 1)
Note:
Four, M5 x 0.8 hexagon pan-head bolts and
two M5 x 0.8 Allen-head bolts are provided.
−0
Note: 1.
Tighten the 5.2
+0.2
dia. holes with the M5
x 10 hexagon pan-head screws.
Four, M5 x 0.8 hexagon pan-head bolts,
two M5 x 0.8 Allen-head bolts are pro-
vided, and two 4 x 14 spring pins are
provided.
2.
Insert the M5 Allen-head bolts into the
M5 tapping holes to tighten the Mount-
ing Plate securely.
