Omron D4C - Mounting Plates; Application Example

Enclosed Switch D4C F-13
Limit
Switches
Weather-resistant Models
Individual Parts (Head/Actuator)
Note 1: The model numbers for heads are of the form D4C-00@@,
with the numbers in the squares indicating the type of actua-
tor.
2: Actuators for plunger models, plastic rod models, and center
roller lever models cannot be ordered individually. They must
be ordered together with the head.
3: Consult your OMRON representative for details on cold-re-
sistant specifications.
Mounting Plates
The WL model incorporated by equipment can be replaced with the
D4C together with the Mounting Plate without changing the position
of the dog or cam.
List of Replaceable Models
Contact your OMRON representative for the period required for deliv-
ery.
Note: The WL01@ is for micro loads.

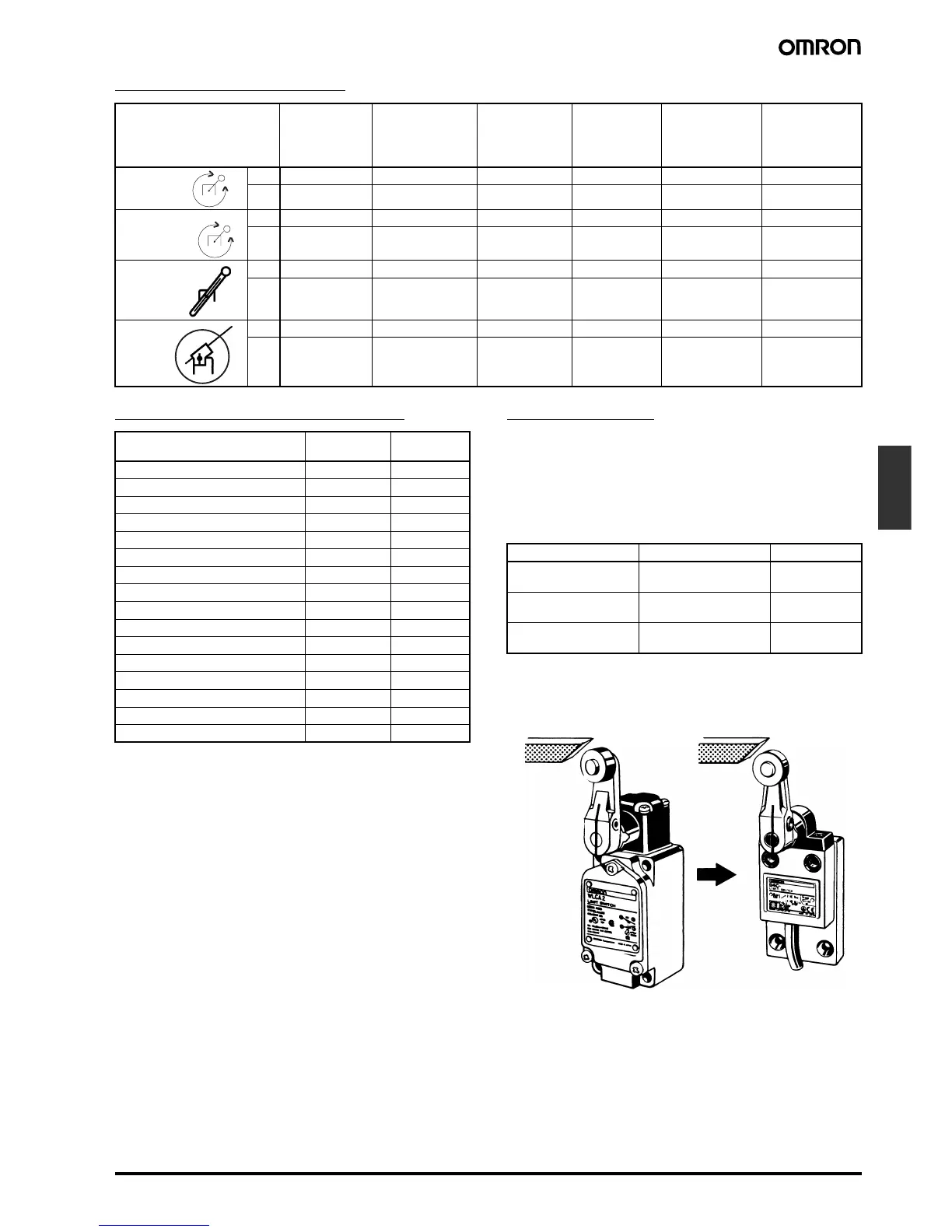

Application Example
Note: The position of the dog remains unchanged.
Actuator 5 A at 250 VAC
4 A at 30 VDC
without
operation
indicator
0.1 A at 125 VAC
0.1 A at 30 VDC
without operation
indicator
5 A at 125 VAC
with operation
indicator
4 A at 30 VDC
with operation
indicator
0.1 A at 125 VAC
with operation
indicator
0.1 A at 30 VDC
with operation
indicator
3 m D4C-1220-P D4C-4220-P D4C-2220-P D4C-3220-P D4C-5220-P D4C-6220-P
5 m D4C-1320-P D4C-4320-P D4C-2320-P D4C-3320-P D4C-5320-P D4C-6320-P
3 m D4C-1224-P D4C-4224-P D4C-2224-P D4C-3224-P D4C-5224-P D4C-6224-P
5 m D4C-1324-P D4C-4324-P D4C-2324-P D4C-3324-P D4C-5324-P D4C-6324-P
3 m D4C-1227-P D4C-4227-P D4C-2227-P D4C-3227-P D4C-5227-P D4C-6227-P
5 m D4C-1327-P D4C-4327-P D4C-2327-P D4C-3327-P D4C-5327-P D4C-6327-P
3 m D4C-1229-P D4C-4229-P D4C-2229-P D4C-3229-P D4C-5229-P D4C-6229-P
5 m D4C-1329-P D4C-4329-P D4C-2329-P D4C-3329-P D4C-5329-P D4C-6329-P
Roller lever
Roller lever
(high-sensitivity
model)
Variable
roller lever
Variable rod
lever
Actuator type Head (with
actuator)
Actuator
Pin plunger D4C-0001 -
Roller plunger D4C-0002 -
Crossroller plunger D4C-0003 -
Bevel plunger D4C-0010 -
Roller lever D4C-0020 WL-1A100
Roller lever D4C-0024 WL-1A100
Variable roller lever D4C-0027 HL-1HPA320
Variable rod lever D4C-0029 HL-1HPA500
Sealed pin plunger D4C-0031 -
Sealed roller plunger D4C-0032 -
Sealed crossroller plunger D4C-0033 -
Panel mount pin plunger D4C-0041 -
Panel mount roller plunger D4C-0042 -
Panel mount crossroller plunger D4C-0043 -
Plastic rod D4C-0050 -
Center roller lever D4C-0060 -
WL model (Actuator) D4C model (Actuator) Plate
WLD/WL01D (Top
plunger)
→D4C-@@01 (Plunger) D4C-P001
WLD2/WL01D2 (Top-
roller plunger)
→D4C-@@02 (Roller
plunger)
D4C-P002
WLCA2/WL01CA2
(Roller lever)
→D4C-@@20 (Roller le-
ver)
D4C-P020
Dog
Mounting Plate
Dog
