IO-Link Connection Procedure
36
17
Make sure that there is no sensing
object in front of Proximity Sensor
and that Operation indicator is not
lit.
18

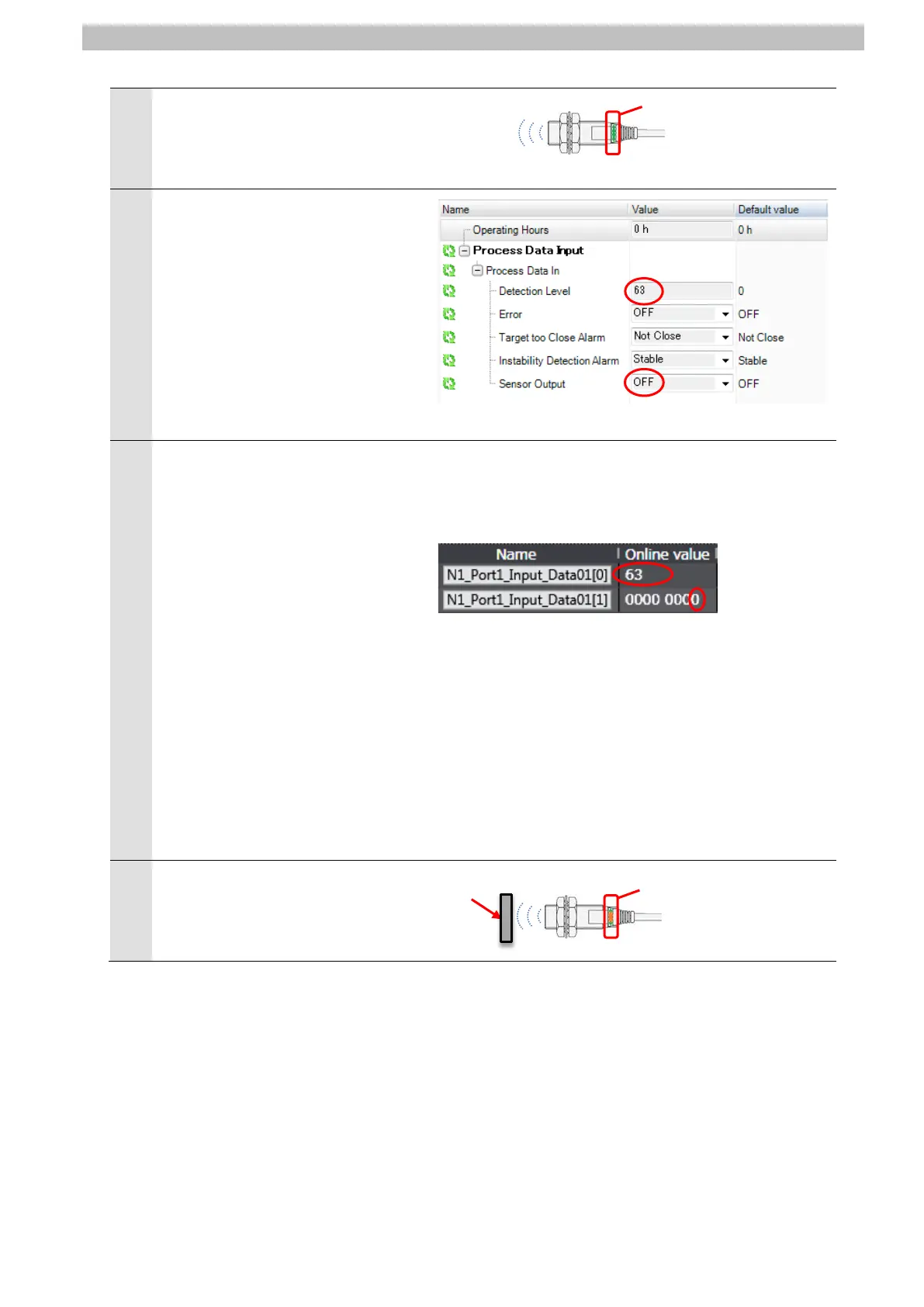

Check that the values of Proximity
Sensor in CX-ConfiguratorFDT are
as shown below.
Detection Level: 63
Sensor Output: OFF
*The value of the detection level
differs depending on the
environmental settings of Proximity
Sensor.
19
Check that the online values on the
Watch Tab Page of Sysmac Studio
are as shown below.
N1_Port1_Input_Data01[0]
: 63
N1_Port1_Input_Data01[1]
: 0000 0000 (Bit 0 is 0.)
*For details on each of the
variables, refer to 6.4. Device
Variables.
*You can check that the monitor
output (Detection Level) of Port 1 is
63 and that the control output
(Sensor Output) is OFF; these
values are the same as the ones
described in step 18.
20
Place Sensing object in front of
Proximity Sensor and check that
Operation indicator is lit in orange.
Operation indicator
(Orange) is not lit.
Sensing object
Operation indicator
(Orange) is lit.
