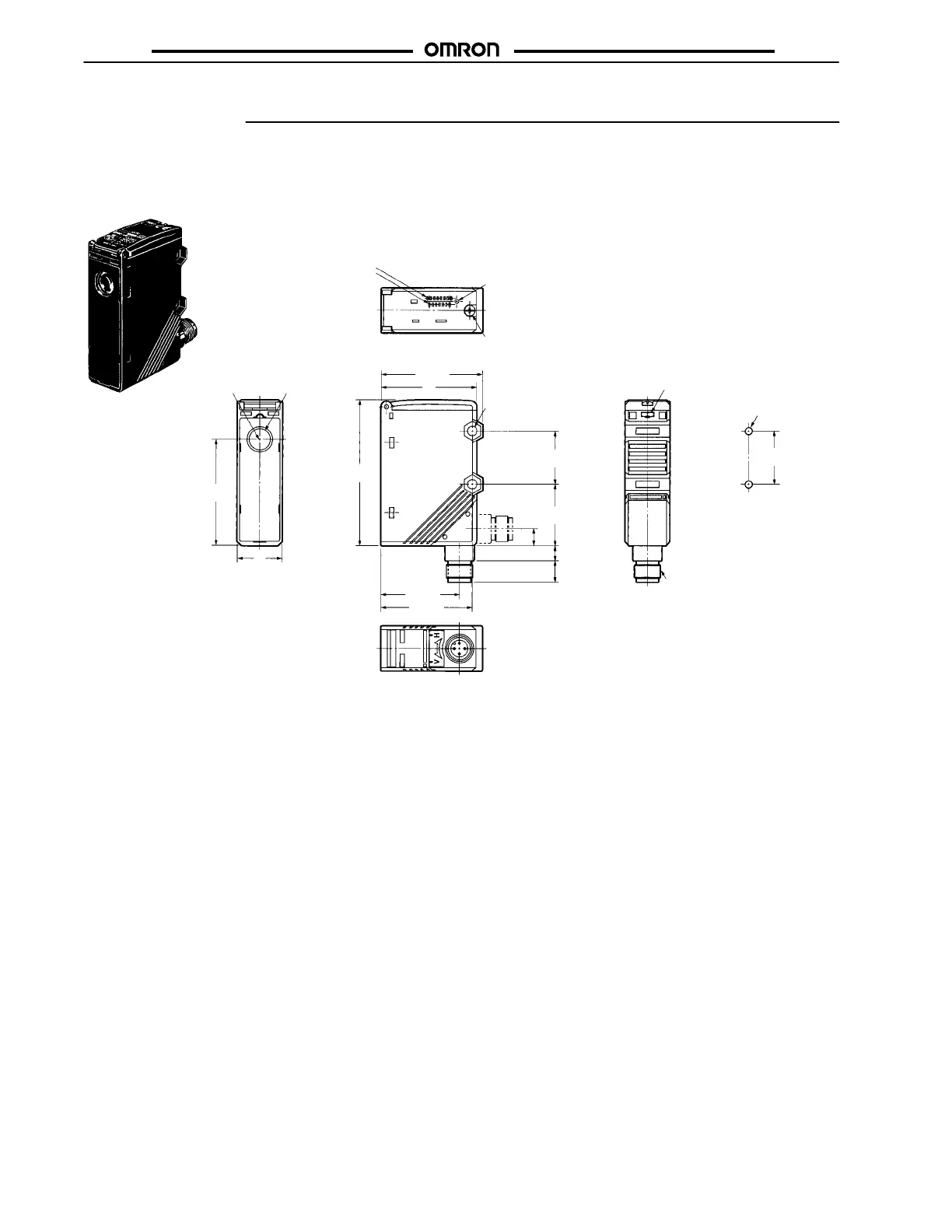

Dimensions
Unit: mm (inch)
 COLOR MARK SENSORS
Eight detection level indicators
Seven level threshold indicators
Operation indicator
M2.6 nut
M12 Connector
M2.6
10 (0.39) dia. lens
Optical axis
Two, 4.5 dia.
mounting holes
Mounting Holes
Two, M4
50
(1.97)
21
(0.83)
47.7
(1.88)
45
(1.77)
25
(0.98)
25
(0.98)
29
(1.14)
7
(0.28)
10
(0.39)
37
(1.46)
43
(1.69)
68.5
(2.70)
