Omron E3M-V User Manual

E3M-V
E3M-V
8

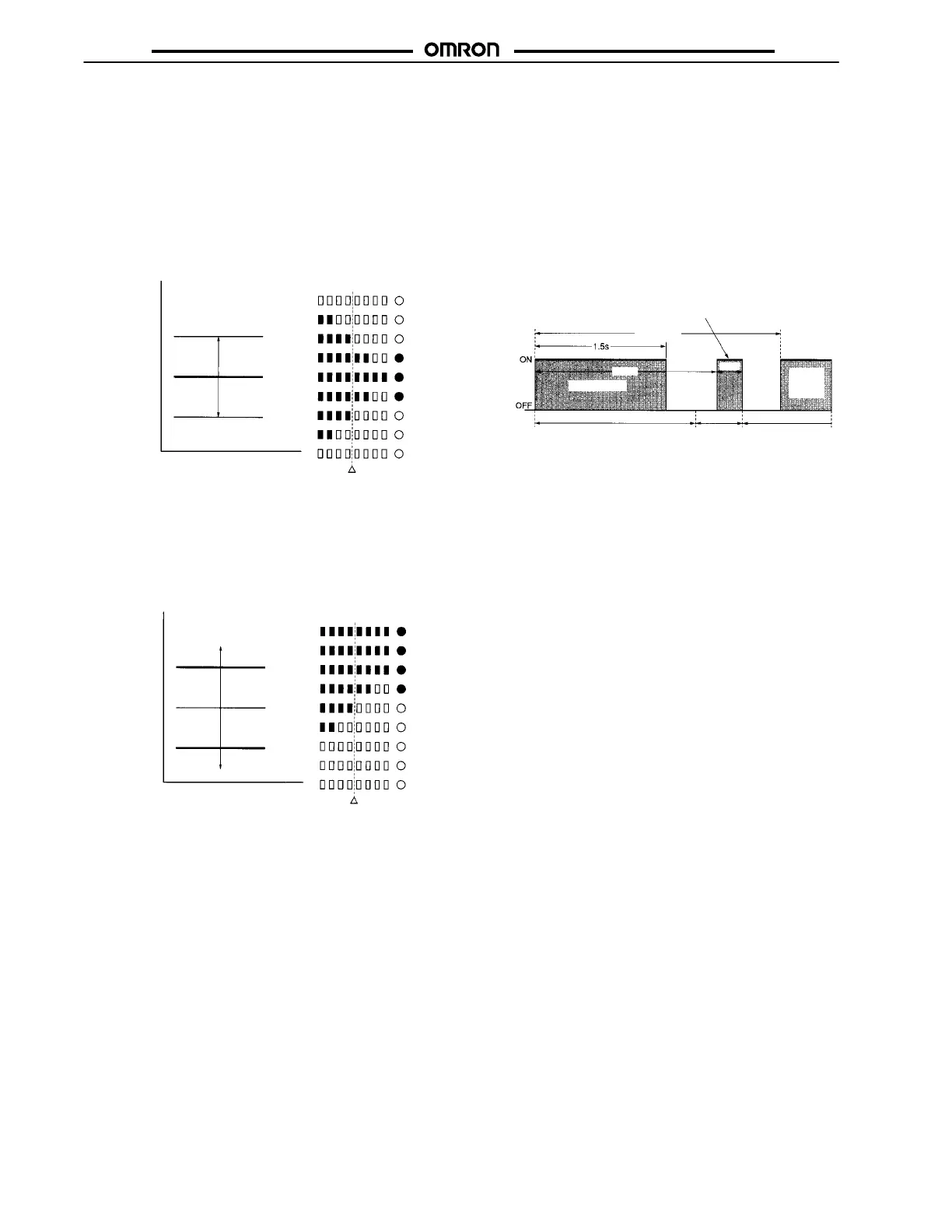

Detection Level Indicator
The control output of the E3M-V will be turned ON if the detection
level exceeds the threshold level. The indication of the detection
level varies with the teaching method.
One-point Teaching
The upper and lower threshold values are set on the basis of the
mark and the detection level indicators indicate the degree of
color conformity to the mark’s color.
Detection level
Output OFF
Output ON
Threshold
value
Mark
Output OFF
Detection
level indi-
cators
Operation
indicator
Threshold value
Threshold
value
Two-point or Auto-teaching
A single threshold value is set between the mark (registered first)
and the base (registered next). The detection level indicators
indicate the tolerance between the mark and base.
Detection level
Output OFF
Output ON
Threshold
value
Mark
Detection
level indi-
cators
Operation
indicator
Threshold value
Base
Remote Control Function (Bank Selection, Mark
Registration, and Threshold Adjustments)
Under Run Mode or Adjust Mode
The input of any of the signals listed in the following table into the
remote control I/O terminal allows remote control of the E3M-V.
When the signal is accepted, answer-back output will be turned
ON for 0.3 s. Only in the case of one-point teaching, however,
can the signal be manually input, provided that the input is ON for
1.5 s or more.
Timing Chart
Remote
control I/O
Sensor
operation
Input signal
Answer-back output: ON
only when the process
completes normally.
Detection restartsSetting
change
Input discrimination
(1.8 s)
2.5 s min.
Next
input
signal
2.0 s
0.3 s
Note: If signals are sent continuously, make sure that there is an
interval of 2.5 s between signal inputs as shown above.
