Omron E3S User Manual

E3S
14
13
17.8
10.5
1.8
1.2
17.9
(16.7)

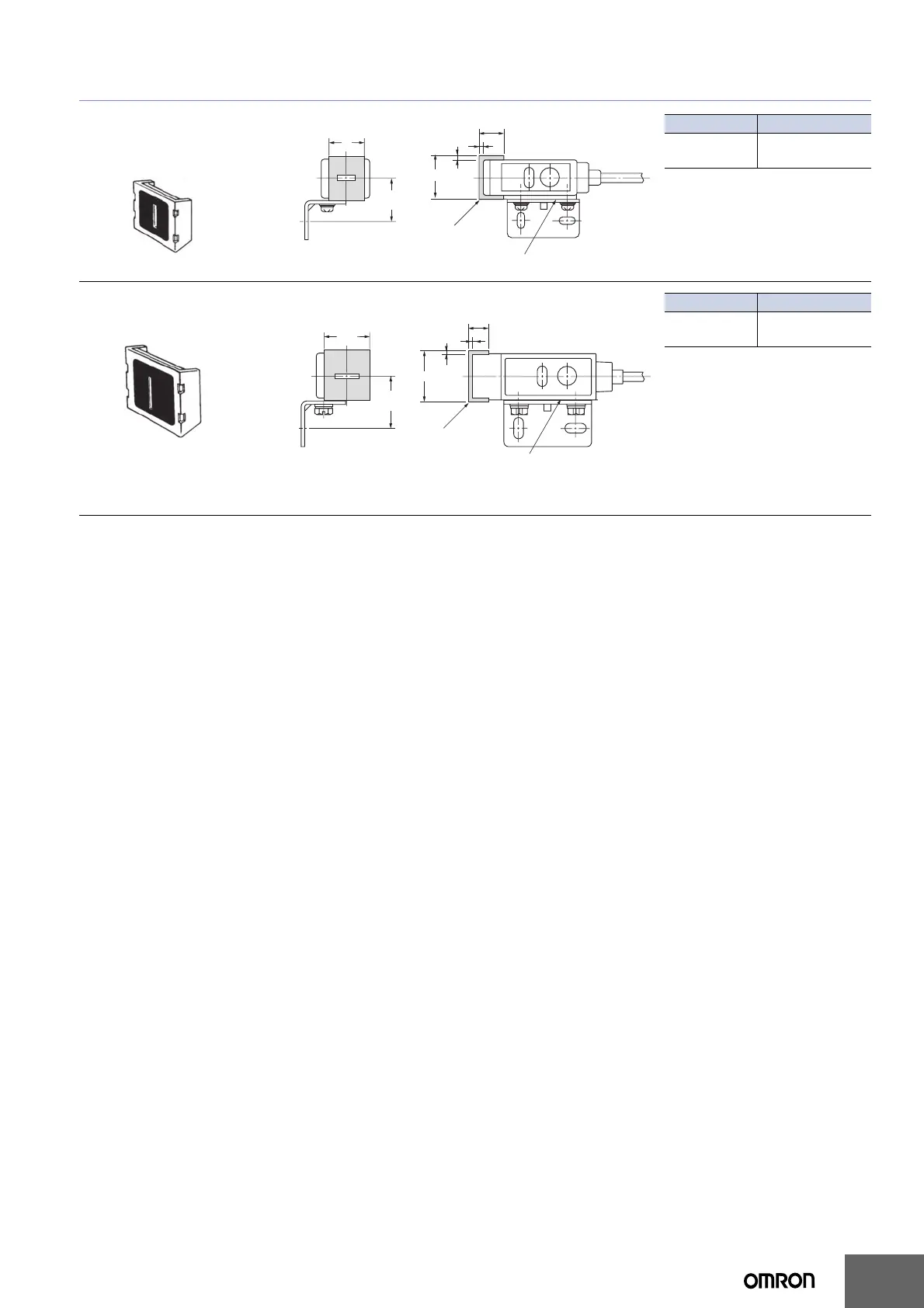

E39-S2
*Spacer
Slit (Order Separately)
E39-S2
Note 1. Three sets of slits are provided:
6.5 x 0.5 mm, 6.5 x 1 mm and 6.5 x
2 mm
2. One set consists of two slits, one
each for the Emitter and Receiver.
Slit E39-S2
Applicable
Sensors
E3S-2E4
E3S-2E41
20
8.3
2.1
22.4
1.2
23.4
(22.2)
E39-S2
*Spacer
E39-S1
Note 1. Four sets of slits are provided:
11 x 0.5 mm, 11 x 1 mm, 11 x 2 mm,
and 11 x 4 mm
2. One set consists of two slits, one
each for the Emitter and Receiver.
Slit E39-S1
Applicable
Sensors
E3S-5E4
E3S-5E41
Note:The dimensions in parentheses are for when the Spacer is not used.
*With the E3S-2E4 (41), use the Spacer as shown in the figure above so that the supporter
and Mounting Bracket will not be struck when the optical axis is adjusted.
With the E3S-5E4 (41), the Spacer is not particularly required. Use the Spacer, however, to directly mount both the E3S-2E4 (41) and -5E4 (41).
In the interest of product improvement, specifications are subject to change without notice.

Omron E3S Specifications

General

Output Type	NPN or PNP
Response Time	1 ms max
Light Source	Infrared LED
Protection Circuit	Reverse polarity protection
Output Current	100 mA max.
Operating Temperature	-25 to 55 °C
Storage Temperature	-40 to 70 °C
Housing Material	ABS
Connection	connector
