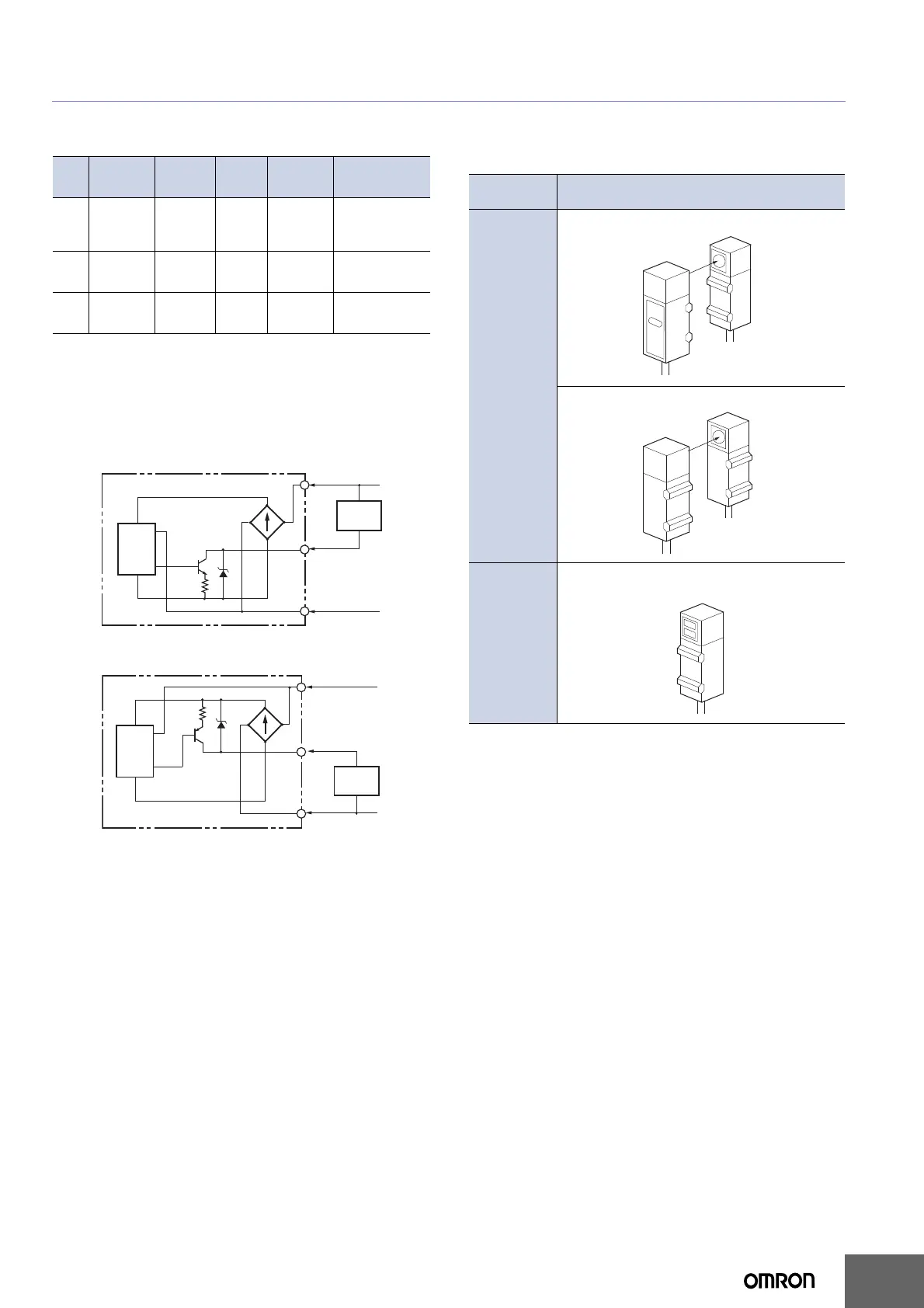

● Sensors with Open-collector Outputs
Sensors with Open-collector Outputs
The model numbers are as follows:
Example:
E3S-DS10E4 (E type)
E3S-DS1C4 (C type)
E3S-DS1B4 (B type)
C4 (C41, C42) Sensors
C4 (B41, B42) Sensors
Note 1. Only C42 models with die-cast cases are available.
2. The Emitter for a Through-beam C4-type Sensor is the same as the
Emitter for an E4-type Sensor. (E.g., E3S-5LE4)
3. When a C- or B- type Sensor experiences a load short-circuit or overload,
the output transistor will be turned OFF. Check the load conditions before
turning the power back ON.
● Sensors with Different Orientations
The E3S-5, E3S-DS30, and E3S-R2 that sense in different
directions can be made.
Type
Output
type
Output
transistor
Rated
current
output
Switching
current
Output
protection
circuit
E
Voltage or
current
output
NPN
1.5 to
4mA
80 mA max.
(sinking)
Provided against
an increase in the
residual output
voltage
C
Open-
collector
output
NPN ---
100 mA
max.
(sinking)
Provided:
Output transistor
cutoff
B
Open-
collector
output
PNP ---
100 mA
max.
(sourcing)
Provided:
Output transistor
cutoff
Brown *
0 V
Load
(relay)
Black (output)
Blue *
Photo-
electric
Sensor
main
circuit
+V
Z
2.2 Ω
Brown *
0 V
Load
(relay)
Black (output)
Blue *
Photo-
electric
Sensor
main
circuit
+V
Z
2.2 Ω
Z: Zener diode (Vz = 30 V)
* The operation mode depends on the wiring of the
brown and blue lines.
Sensing
method
Sensing direction
Through-
beam
E3S-5E43
E3S-5E44
Retro-
reflective
Diffuse-
reflective
E3S-DS30E43
E3S-R2E43
Emitter
Receiver
Emitter
Receiver
