Omron E3V3 - Operation; Output Circuits

E3V3 E3V3
E3V3-D

1
Excess gain ratio
Distance (cm)
Operating level


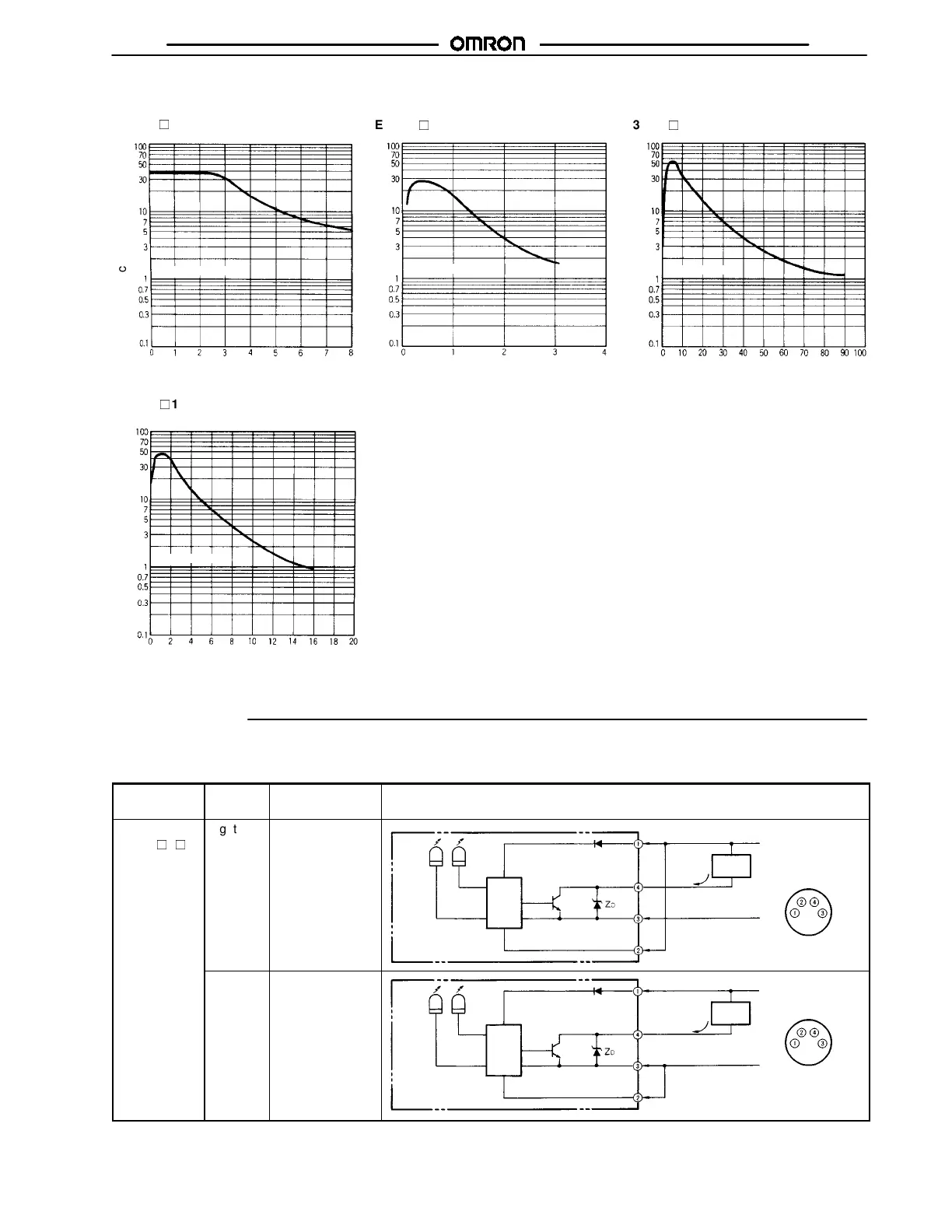

EXCESS GAIN VS. SET DISTANCE (TYPICAL)
E3V3-T

1
E3V3-R

1 E3V3-D

2
Excess gain ratio
Distance (m) Distance (m) Distance (cm)
Excess gain ratio Excess gain ratio
Operating level
Operating level
Operating level
Operation

OUTPUT CIRCUITS
Output
Configuration
Mode
Switch
Connection
Method
Output Circuits
NPN
(E3V3-  6  )
Light-ON Connect the pink
cord to the brown
cord. (see note)
Connector Pin
Arrangement
Operation
indicator
(Orange)
Stability
indicator
(Green)
Main
circuit
Load
(relay)
Operating selection
Brown
Black
Blue
Pink
0V
12 to 24 VDC
100 mA
max.
Dark-ON Connect the pink
cord to the blue
cord or
disconnect the
pink cord from the
blue cord. (see
note)
Connector Pin
Arrangement
Operation
indicator
(Orange)
Stability
indicator
(Green)
Main
circuit
Load
(relay)
Operating selection
Brown
Black
Blue
Pink
0V
12 to 24 VDC
100 mA
max.
