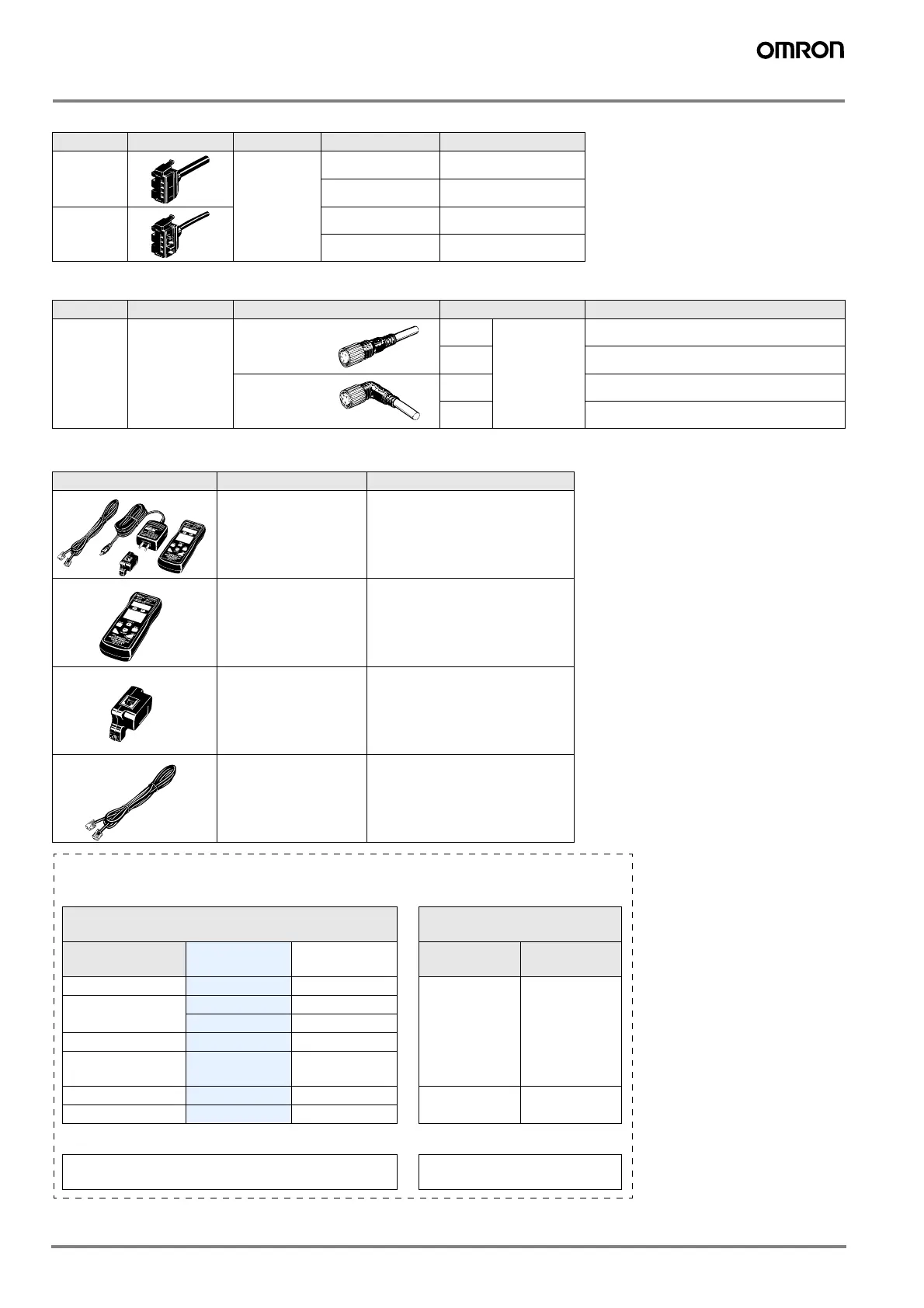

A-422 Advanced Photoelectric Sensors
Amplifier units Connectors (Order Separately) Note: Stickers for Connectors are included as accessories.
Sensor I/O Connectors (Order separately)
Mobile Console (Order Separately)
Item Shape Cable length No. of conductors Model
Master
connector
2 m
3E3X-CN11
4E3X-CN21
Slave con-
nector
1E3X-CN12
2E3X-CN22
Size Cable type Shape Cable length Model
M8 Standard cable
2 m
4 conductors
XS3F-M421-402-A
5 m XS3F-M421-405-A
2 m XS3F-M422-402-A
5 m XS3F-M422-405-A
Shape Model Remarks
(Set form)
E3X-MC11
Mobile Console with head, cable,
and AC adapter provided as ac-
cessories. Power supply provid-
ed by chargeable battery
E3X-MC11-C1 Mobile Console
E3X-MC11-H1 Head
E39-Z12-1 Cable (1.5 m)
Straight
connector
L-shaped
connector
In general, amplifier units and connectors are sold separately.
Refer to the following tables for order placement.
When using 5 sets
amplifier units
Applicable Connector
(order separately)
Type
NPN PNP
Master
connector
Slave
connector
Standard models
E3X-DA6 E3X-DA8
+
E3X-CN11 E3X-CN12
Mark-detecting models
E3X-DAB6 E3X-DAB8
E3X-DAG6 E3X-DAG8
Infrared models
E3X-DAH6 E3X-DAH8
Differential
output
E3X-DA6D ---
Monitor-output models E3X-DA7 E3X-DA9
E3X-CN21 E3X-CN22
Twin-output models E3X-DA6TW E3X-DA8TW
amplifier units (5 Units)
+
1 Master Connector + 4 Slave
Connectors
