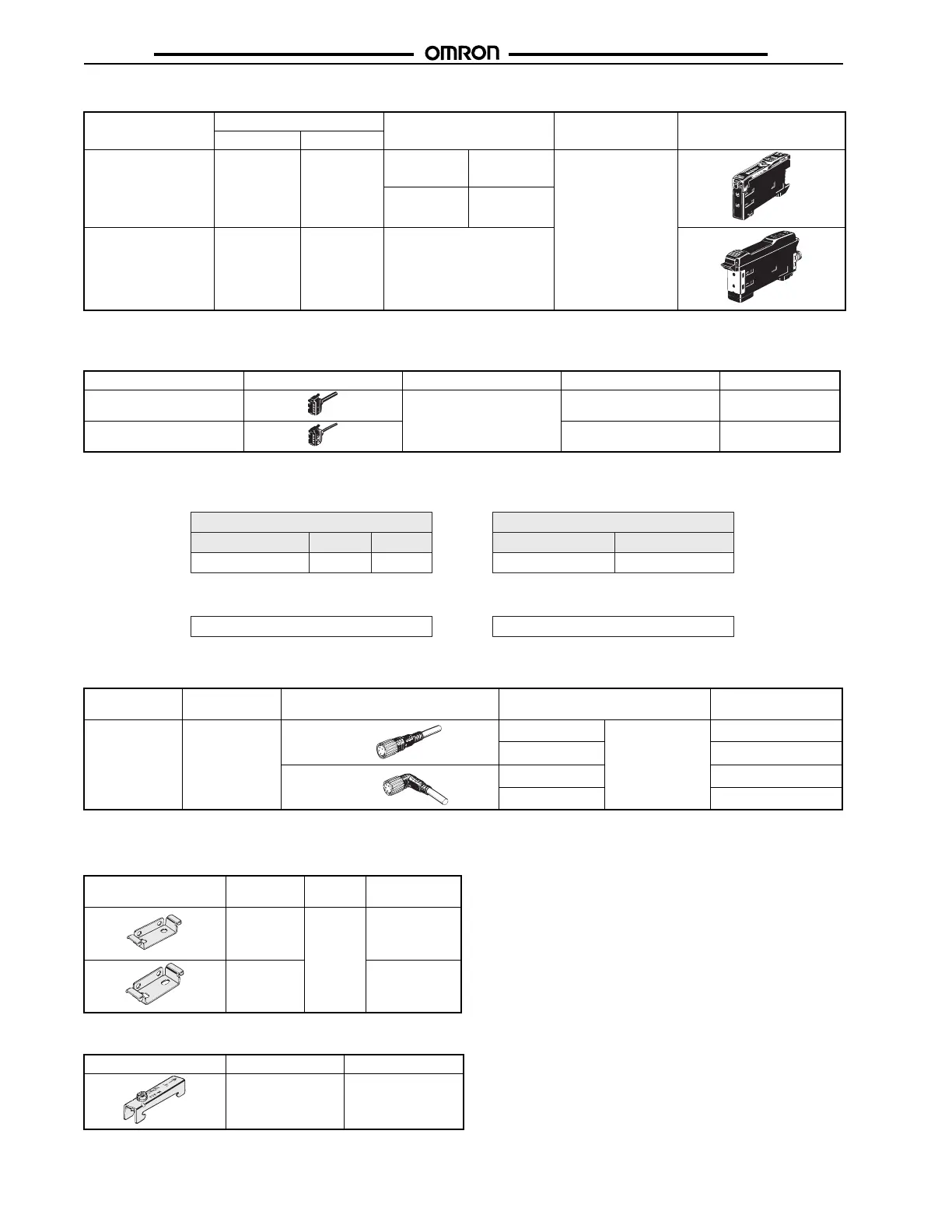

E3X-NAE3X-NA
■
Connector-Ready Amplifiers (Order Connector Separately)
■
Amplifier Unit Connectors (Order Separately)
Note: Stickers for Connectors are included as accessories.
■
Combining Amplifier Units and Connectors (Each Sold Separately)
Refer to the following tables when placing an order. Amplifier Units and Connectors are sold separately.
■
Sensor I/O Connectors (Order Separately)
■
Accessories (Order Separately)
Mounting Brackets
End Plate
Item Part number Applicable connector
(order separately)
Control output Appearance
NPN output PNP output
Wire-saving E3X-NA6 E3X-NA8 Master E3X-CN11 ON/OFF output
Slave E3X-CN12
Water-resistant
(M8 connectors)
E3X-NA14V E3X-NA44V XS3F-M421-40@
@@
@-A
XS3F-M422-40@
@@
@-A
Item Appearance Cable length No. of conductors Part number
Master Connector 2 m 3 E3X-CN11
Slave Connector 1 E3X-CN12
Size Cable
specifications
Appearance Cable type Part number
M8 Standard cable
Straight connector
2 m Four-core cable XS3F-M421-402-A
5m XS3F-M421-405-A
L-shaped connector 2 m XS3F-M422-402-A
5m XS3F-M422-405-A
Amplifier Units
Type NPN PNP
Wire-saving models E3X-NA6 E3X-NA8
+
Applicable Connectors (Order Separately)
Master Connector Slave Connector
E3X-CN11 (3-wire)
E3X-CN12 (1-wire)
Amplifier Units (5 Units)
+
1 Master Connector + 4 Slave Connectors
When Using 5 Amplifier Units
Appearance Applicable
models
Quantity Part number
E3X-NA@
E3X-NA@F
E3X-NAG@
1 E39-L143
E3X-NA@V E39-L148
Appearance Quantity Part number
1 PFP-M
Example:
■ Fiber-Optic Cables
The E3X-NA amplifiers use Omron’s E32-series fiber-optic
cables. With a choice of over 80 sensing heads, you are sure to
find one that matches your application requirements. Refer to the
selection of E32 cables (listed with their respective sensing
distances) in the fiber section at the end of this data sheet. Order
fiber-optic cables separately.
