2 Preparations
2 - 78
E5@C Digital Temperature Controllers User’s Manual (H174)

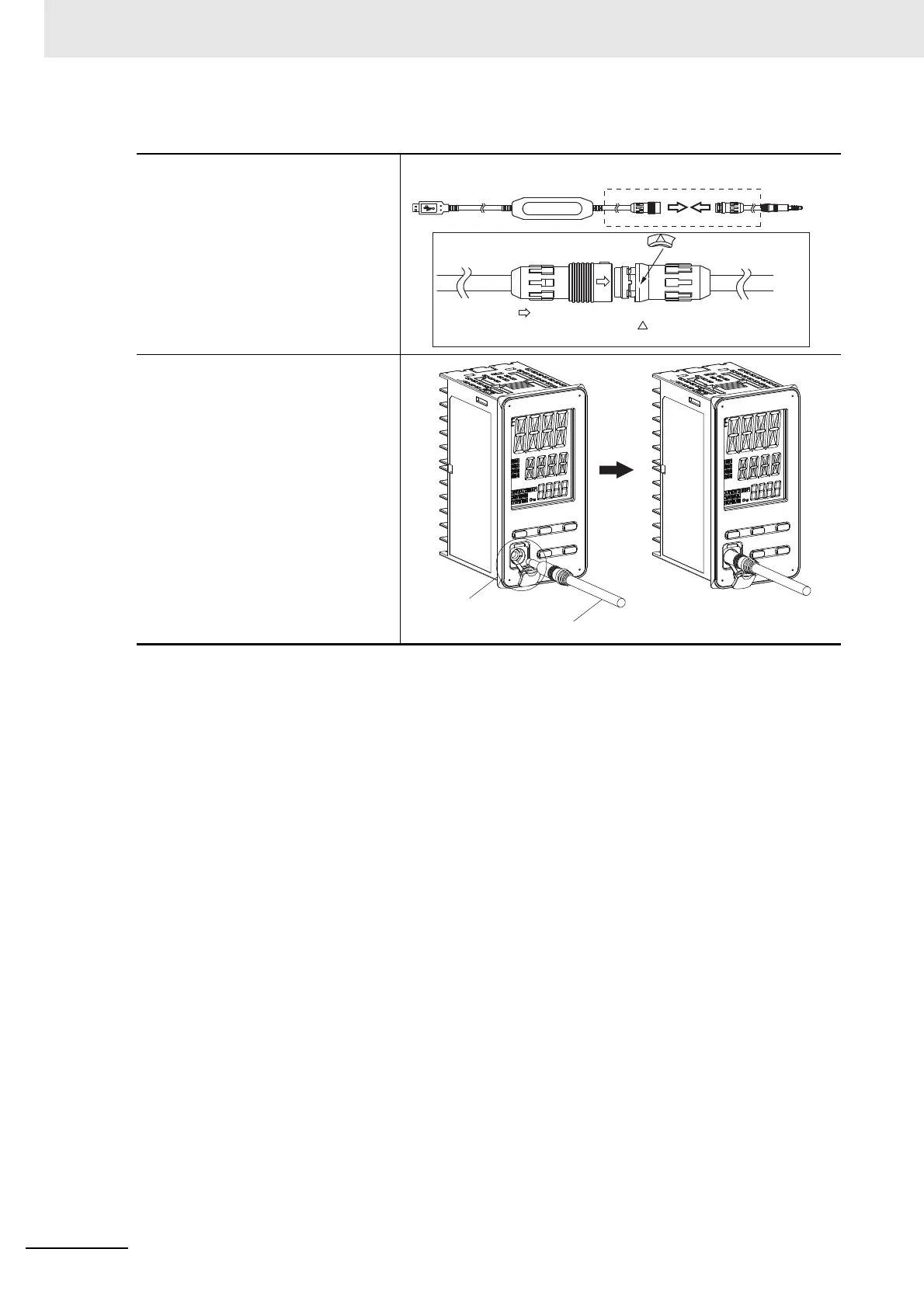

• Front-panel Port
1
Connect the E58-CIFQ2
USB-Serial Conversion Cable
to the E58-CIFQ2-E
Conversion Cable.
2
Remove the Port Cover from
the front-panel Setup Tool
port, and then plug in the
Conversion Cable.
E58-CIFQ2
USB-Serial Conversion Cable
E58-CIFQ2-E
Conversion Cable
There is a triangle
on the connecting surface.
Align the arrow ( ) on the small connector on the E58-CIFQ2 USB-Serial
Conversion Cable with the triangle mark ( ) on the small connector on the
E58-CIFQ2-E Conversion Cable.
Port Cover
Conversion Cable
To Next Page
