Omron E5*C-B Series User Manual

3 - 5
3 Part Names and Basic Procedures
E5@C Digital Temperature Controllers User’s Manual (H174)
3-3 Part Names, Part Functions, and Setting Levels
3

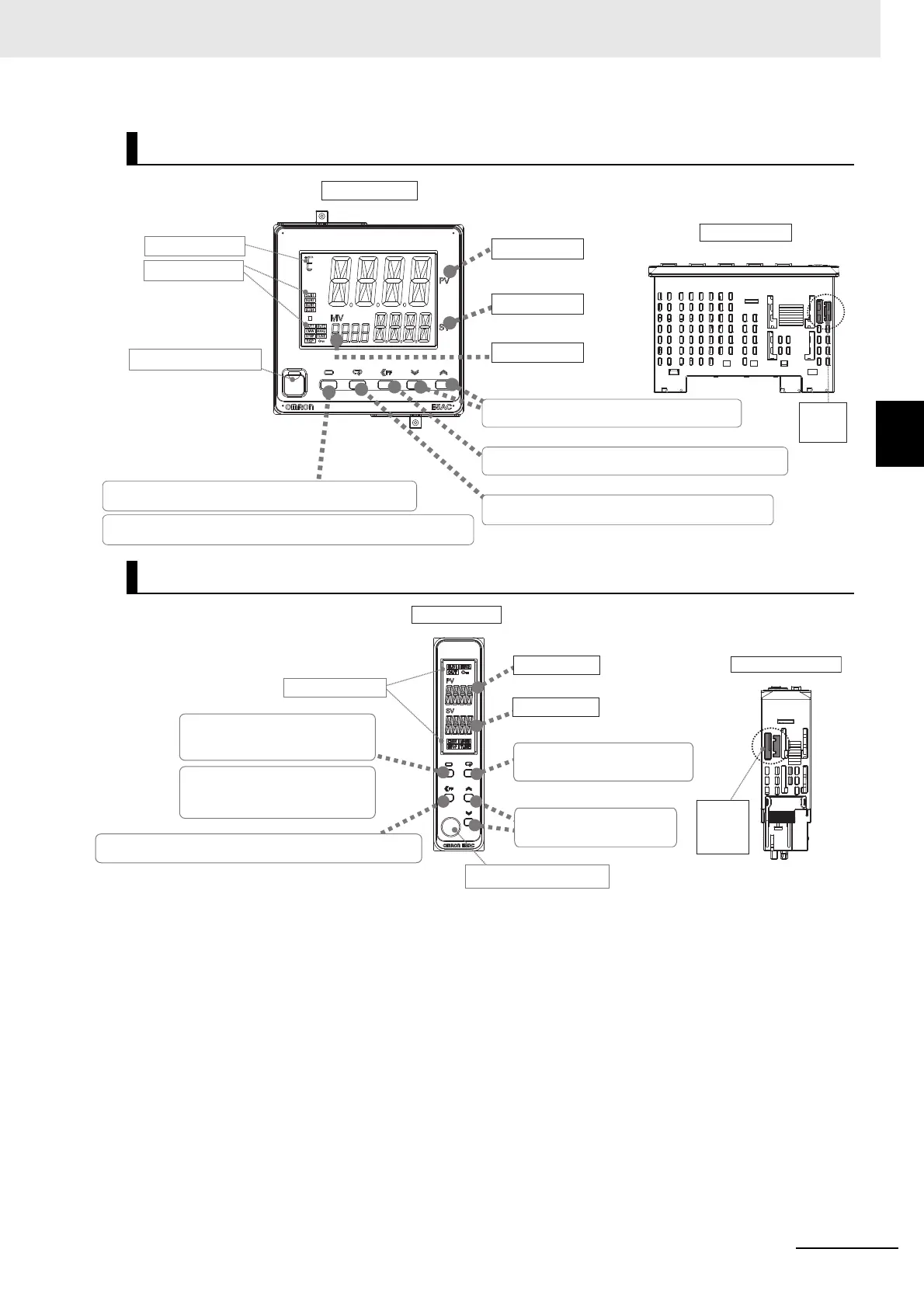

3-3-1 Part Names and Functions
E5AC
E5DC/E5DC-B
Top View of E5AC
Operation indicators
Press the S Key to change the digit (default setting).
Press the M Key to change to another parameter.
No. 1 display
No. 2 display
No. 3 display
Press the O Key once to go to the Adjustment Level.
Press the O Key for at least 3 seconds to go to the Initial Setting Level.
PV or specified parameter
SP or specified parameter value
Manipulated value or other value
Press the U or D Key to set the parameter.
Front Panel
Front-panel Setup Tool port
Temperature unit
Top-panel
Setup
Tool port
Front Panel
Bottom View of E5DC
Operation indicators
No. 1 display
No. 2 display
Front-panel Setup Tool port
Press S Key to change the digit (default setting).
PV or specified parameter
SP or specified parameter value
Press O Key once to go to
Adjustment Level.
Press O Key for at least 3
seconds to go to Initial Setting
Level.
Press the M Key to change to
another parameter.
Press the U D Keys to
set the parameter.
Bottom-
panel
Setup
Tool port
