5 Set the set point.
6 Set the alarm set value or values.
This concludes the procedure to set the input type, alarm type, control method, set point, and alarm
set values. For information on the settings of the ON/OFF hysteresis, PID constants, HS alarm, HS
alarm, and other parameters, refer to Section 4 Basic Operation or Section 5 Advanced Operations.
* Hold the U (Up) or D (Down) Key to increment or decrement the value quickly.

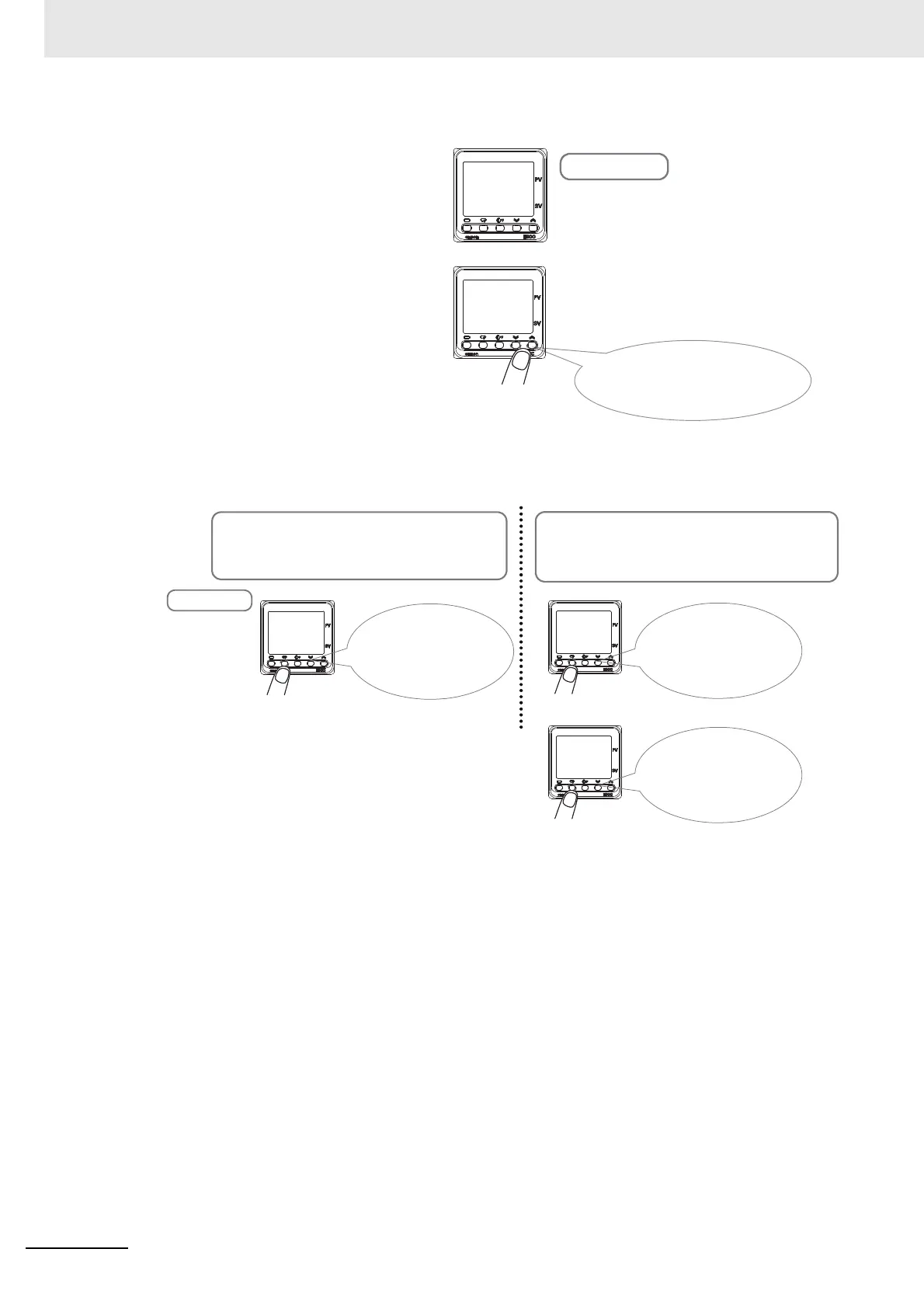

Operation Display
Set point: 500°C (example)
Press the U (Up) and D
(Down) Keys and the S (Shift)
Key to change the value.
25
0
25
500
al-1
0
al1h
0
al1l
0
Change the parameter that is displayed with the M (Mode) Key.
Operation Level
Press the M (Mode)
Key several times to
display al-1 (AL-1).
Alarm Type 2, 3, 6, 7, 8, 9,10, or 11
(Upper-limit Alarms and Lower-limit
Alarms)
Alarm Type 1, 4, or 5 (Upper-limit and
Lower-limit Alarms or Upper-limit and
Lower-limit Range Alarms)
To set the alarm value
upper limit, press the M
(Mode) Key several times
to display al1h (AL1H).
To set the alarm value
lower limit, press the M
(Mode) Key several times
to display al1l (AL1L).
