5 Advanced Operations
5 - 46
E5@C Digital Temperature Controllers User’s Manual (H174)
Simple programming is used.
The related parameters are as follows:
Program pattern: STOP
Soak time = 10 min
Wait band: 3
Operating Procedure
• Setting the Program Pattern
1 Press the M Key several times in the Initial Setting Level to
display ptrm (Program Pattern).
Initial Setting Level
2 Press the U or D Key to select stop (STOP).
The default is off.
• Setting the Soak Time
1 Press the M Key several times in the Adjustment Level to dis-
play soak (Soak Time).
Adjustment Level
2 Press the U or D Key to set the value to 10.
The default is 1 (min or h).
• Setting the Wait Band
1 Press the M Key several times in the Adjustment Level to dis-
play wt-b (Wait Band).
Adjustment Level
2 Press the U or D Key to set the value to 3.0.
The default is off.

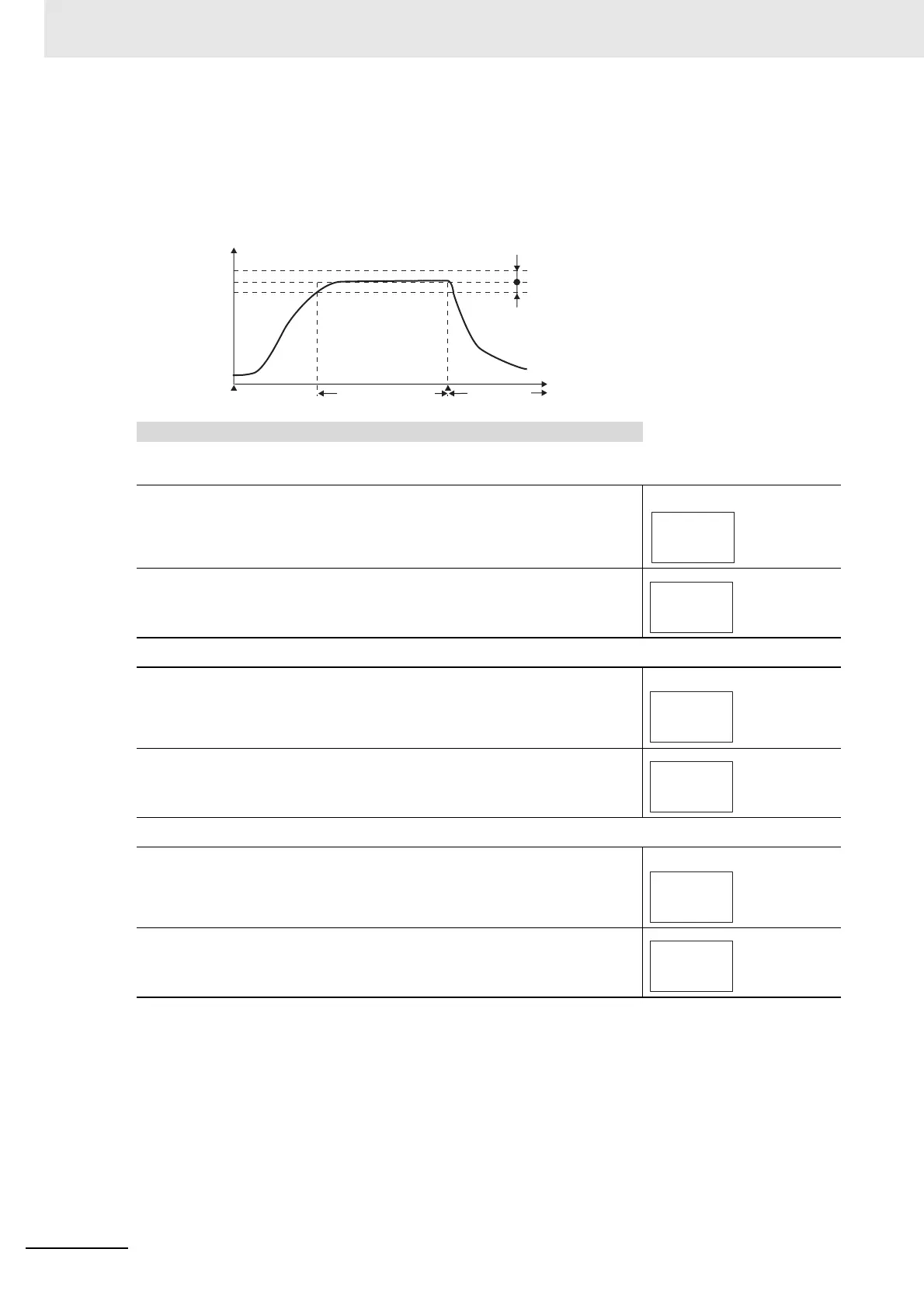

STOP
PV
RSET → STRT
Set point
Wait band = 3
Soak time = 10 min
END display
END output
off
ptrn
Program Pattern
stop
ptrn
1
soak
Soak Time
10
soak
off
wt-b
Wait Band
3.0
wt-b
