5 Advanced Operations
5 - 64
E5@C Digital Temperature Controllers User’s Manual (H174)
 Manual MV, MV at Stop, and MV at PV Error
Refer to the following sections.
Manual PV: 5-12-1 Manual MV
MV at Stop and MV at PV Error: 5-15 Output Adjustment Functions
 FB Moving Average Count

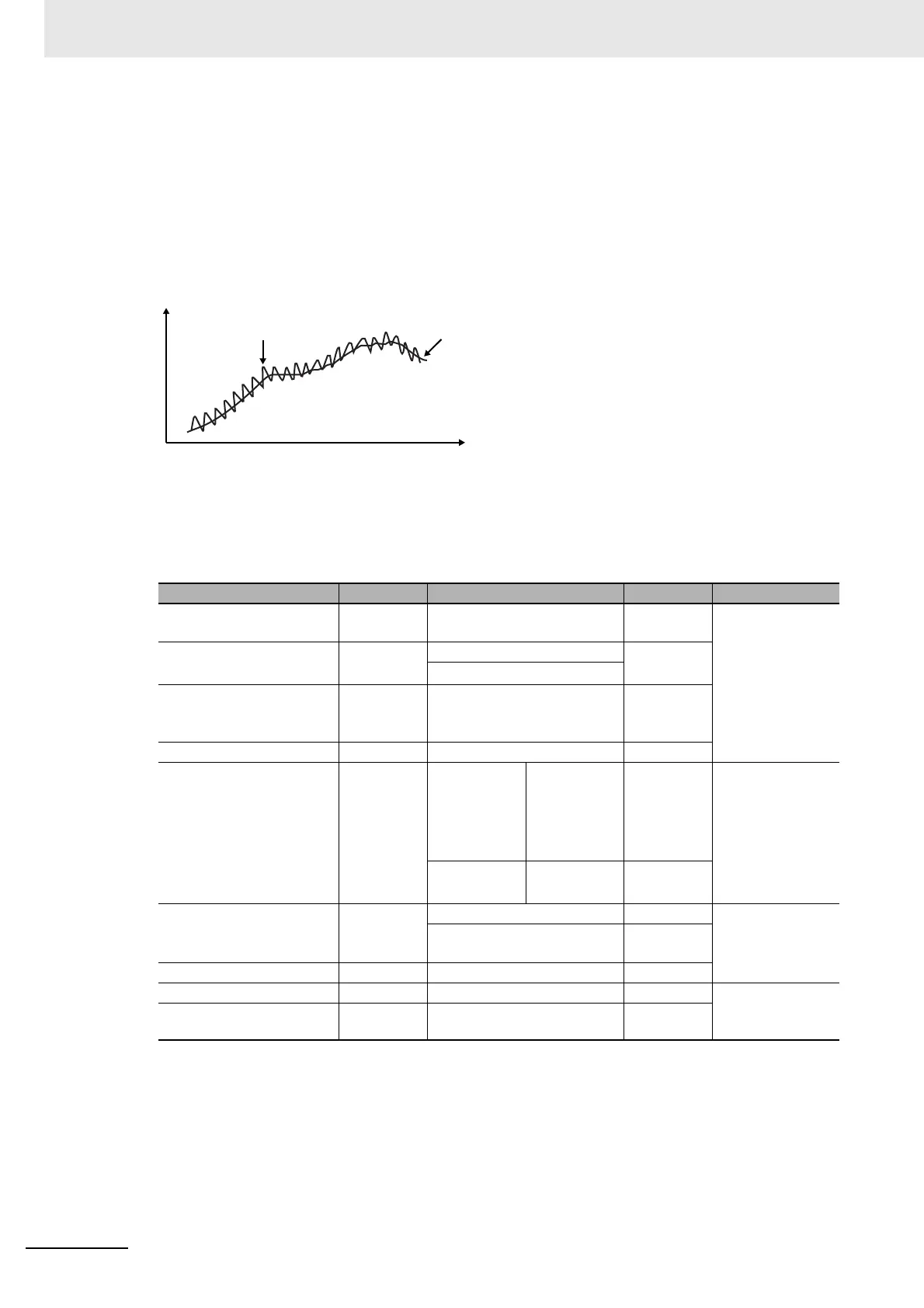

You can set the moving average count for the FB input. The data after moving average processing is
illustrated in the following figure.
Use a moving average to suppress rapid changes in the FB input.
* You can use this parameter only with E5EC/E5AC-PR@-8@@ version 2.2 (factory shipments in August 2014 or
later).
 Related Displays and Parameters
*1 You can use this selection only with the E5EC-PR@-8@@ or E5AC-PR@-8@@. (The Digital Controller must
be manufactured in August 2014 or later (version 2.2 or higher).)
*2 You can use this setting only for floating control.
*3 Motor calibration not performed, potentiometer not connected, or potentiometer input error.
Parameter name Display Set (monitor) values Default Level
Close/Floating
clfl FLOT: Floating control
CLOS: Close control
FLOT
Initial Setting
Level
Valve Opening Monitor
Selection
*1*2
vmsl MEAS: Measured opening MEAS
ESTM: Estimated opening
Motor Calibration
calb OFF
ON
ERR (Error occurred.)
OFF
Travel Time mot 0 to 999 (s) 30
Valve Opening Monitor
V-m
Measured
opening
Normal
operation:
−10.0% to
110.0%
Error:---
*3
---
Operation Level
Estimated
opening
*1
0.0% to
100.0%
---
Position Proportional Dead
Band
db Close control: 0.1% to 10.0% 4.0
Adjustment Level
Floating control: 0.1% to
10.0%
2.0
Open/Close Hysteresis oc-h 0.1 to 20.0 0.8
FB Moving Average Count pmav OFF, 2, 4, 8, 16, or 32 16 Advanced
Function Setting
Level
PV Dead Band
p-db
0 to 9999
0.0
Input data
Operation result
Time
