5 Advanced Operations
E5@C-T Digital Temperature Controllers User’s Manual (H185)

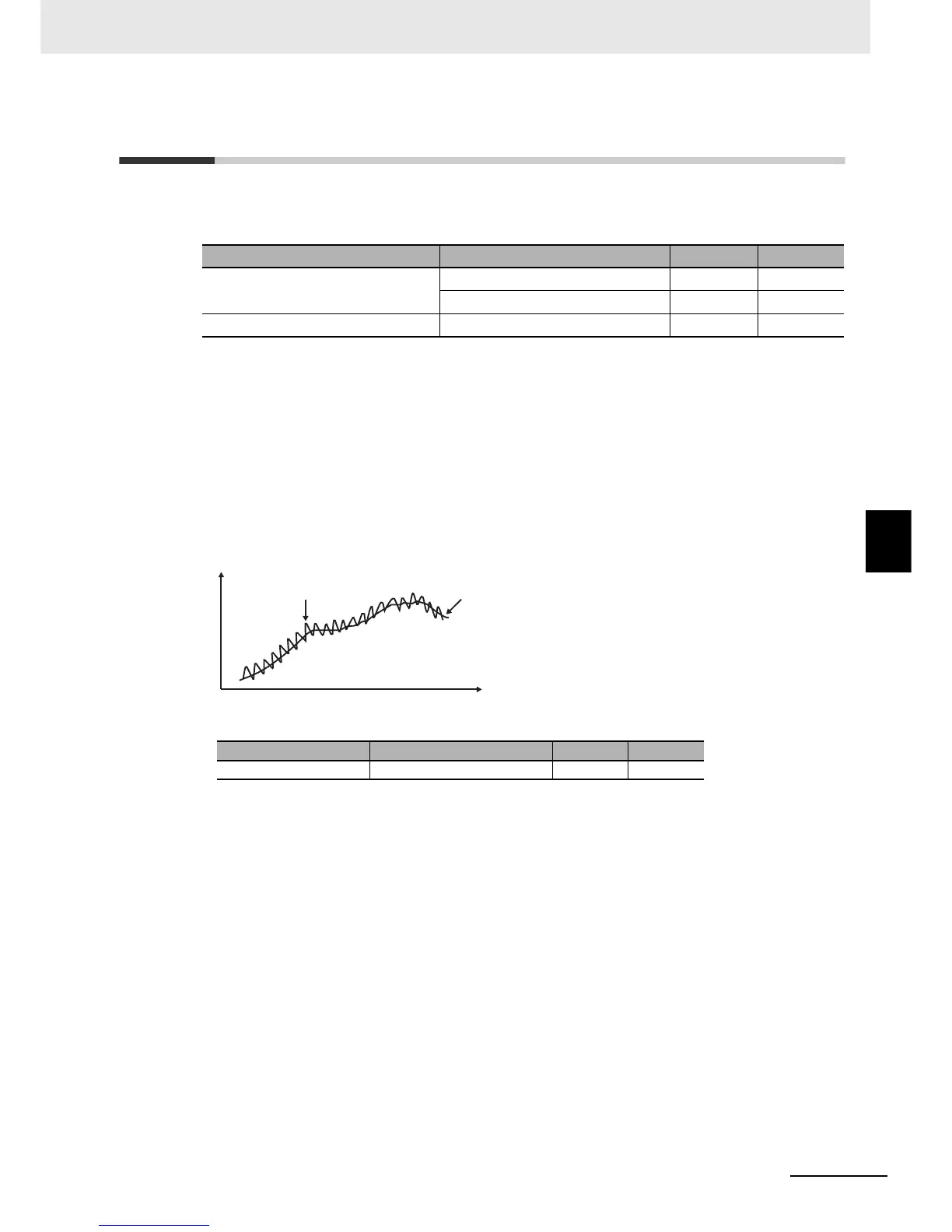

5-1 Shifting Input Values
5
5-1 Shifting Input Values
z Shifting Inputs
You can set the PV Slope Coefficient and PV Input Shift parameters to compensate the PV.
• Calculating the PV Slope Coefficient and PV Input Shift
In the following equation, PVi is the input to the calculation, PVo is the result, INRT is the PV slope
coefficient, and INS is the PV input shift: PVo = (PVi × INRT) + INS
z Moving Average
• The moving average operation reduces sudden changes in the input due to noise and other
factors, and can be enabled separately for each input.
• The Moving Average Count parameter is used for the moving average. It can be set to OFF, 2, 4,
8, 16, or 32.
• The default is OFF (disabled).
Parameter Setting range Unit Default
PV Input Shift
Temperature input: −199.9 to 999.9
°C or °F0.0
Analog input: −1,999 to 9,999
EU 0
PV Slope Coefficient 0.001 to 9.999
None 1.000
Parameter Setting range Unit Default
Moving Average Count OFF, 2, 4, 8, 16, or 32 Times OFF
Input data
Operation result
Time
