21

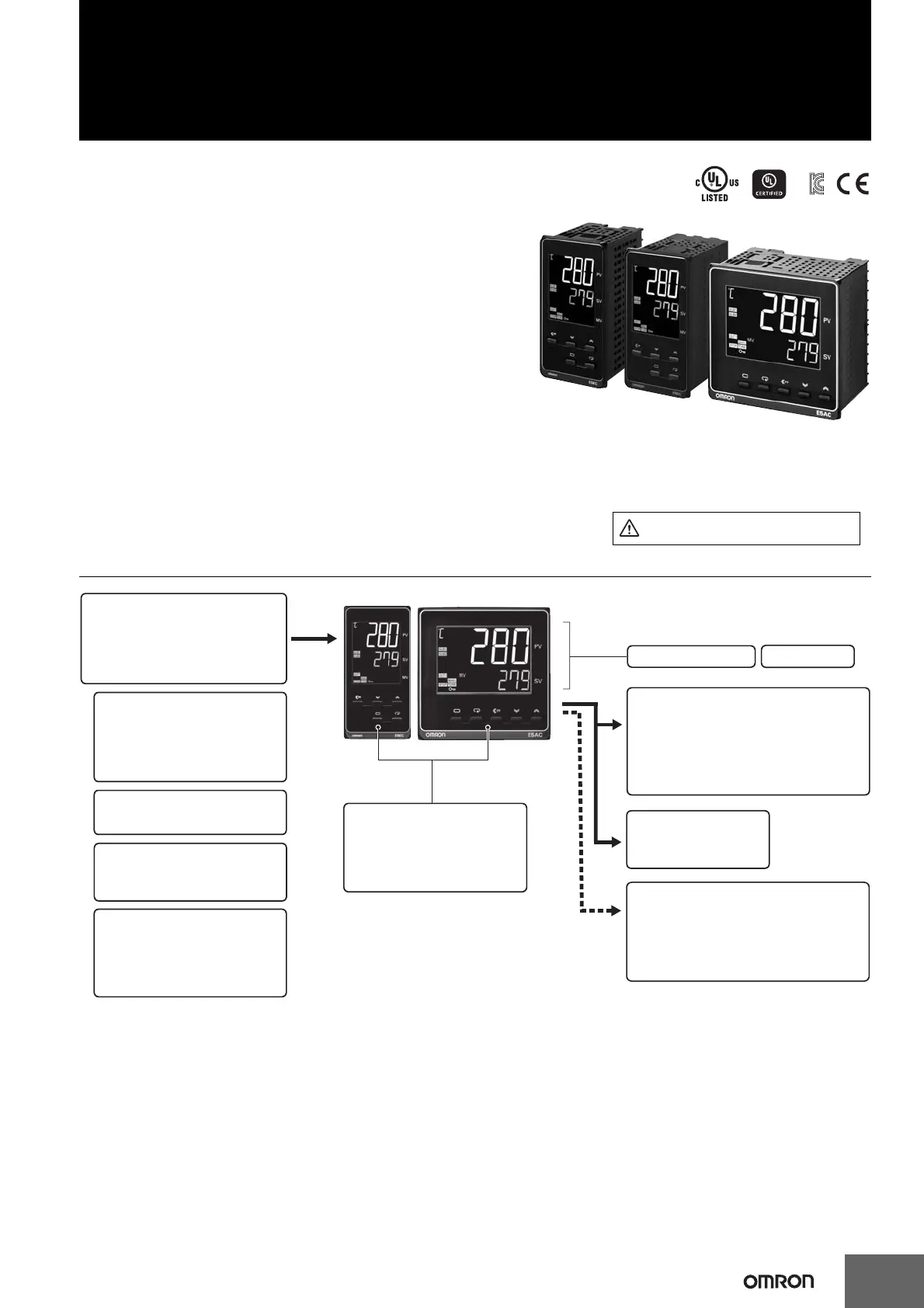

Digital Temperature Controller (Simple Type)
E5EC-800/E5EC-B-800/E5AC-800 (48 × 96 mm/96 × 96 mm)
Large White PV Display That’s Easier to
Read.
Easy to Use, from Model Selection to
Setup and Operation.
Models with Push-In Plus Terminal
Blocks Added to 48 × 96-mm Lineup.
• A white LCD PV display with a height of approx. 18 mm for the
E5EC/E5EC-B-800 and 25 mm for the E5AC-800 improves
visibility.
• High-speed sampling at 50 ms.
• With 48 x 96-mm Controllers, you can select between screw
terminal blocks or Push-In Plus terminal blocks to save wiring work.
• Short body with depth of only 60 mm. (Screw Terminal Blocks)
• Easy connections to a PLC with programless communications.
Use component communications to link Temperature
Controllers to each other.
Main I/O Functions
Refer to Safety Precautions on page 58.
Refer to your OMRON website for the most recent
information on applicable safety standards.
*
(E5EC/AC-800) (E5EC-B-800)
* CSA conformance evaluation by UL.
48 × 96 mm
Screw Terminal
Blocks
E5EC-800
48 × 96 mm
Push-In Plus
Terminal
Blocks
E5EC-B-800
96 × 96 mm
Screw Terminal Blocks
E5AC-800
E5EC-800/E5EC-B-800
4-digit displays
Sensor Input
Control Output 1
Auxiliary Outputs
• PF (shift) Key
• Temperature status display
• Independent heating and
cooling PID control
• Changed parameter display
Dual displays: PV/SV
E5AC-800
Control Output 2
• None
• Relay output
Universal input
• Thermocouple
• Pt
• Analog current/voltage
• Relay output
• Voltage output
(for driving SSR)
• Linear current output
<E5EC-800>
• None
• 2
<E5AC-800>
• None
• 1
• 2
• 3
<E5EC-B-800>
• 2
Indication Accuracy
• Thermocouple input:
±0.3% of PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% of FS
Sampling Period
• 50 ms
Serial Communications
• None
• RS-485
Event Inputs
<E5EC-800/E5AC-800>
• None
• 2
• 4
<E5EC-B-800>
• None
• 2
