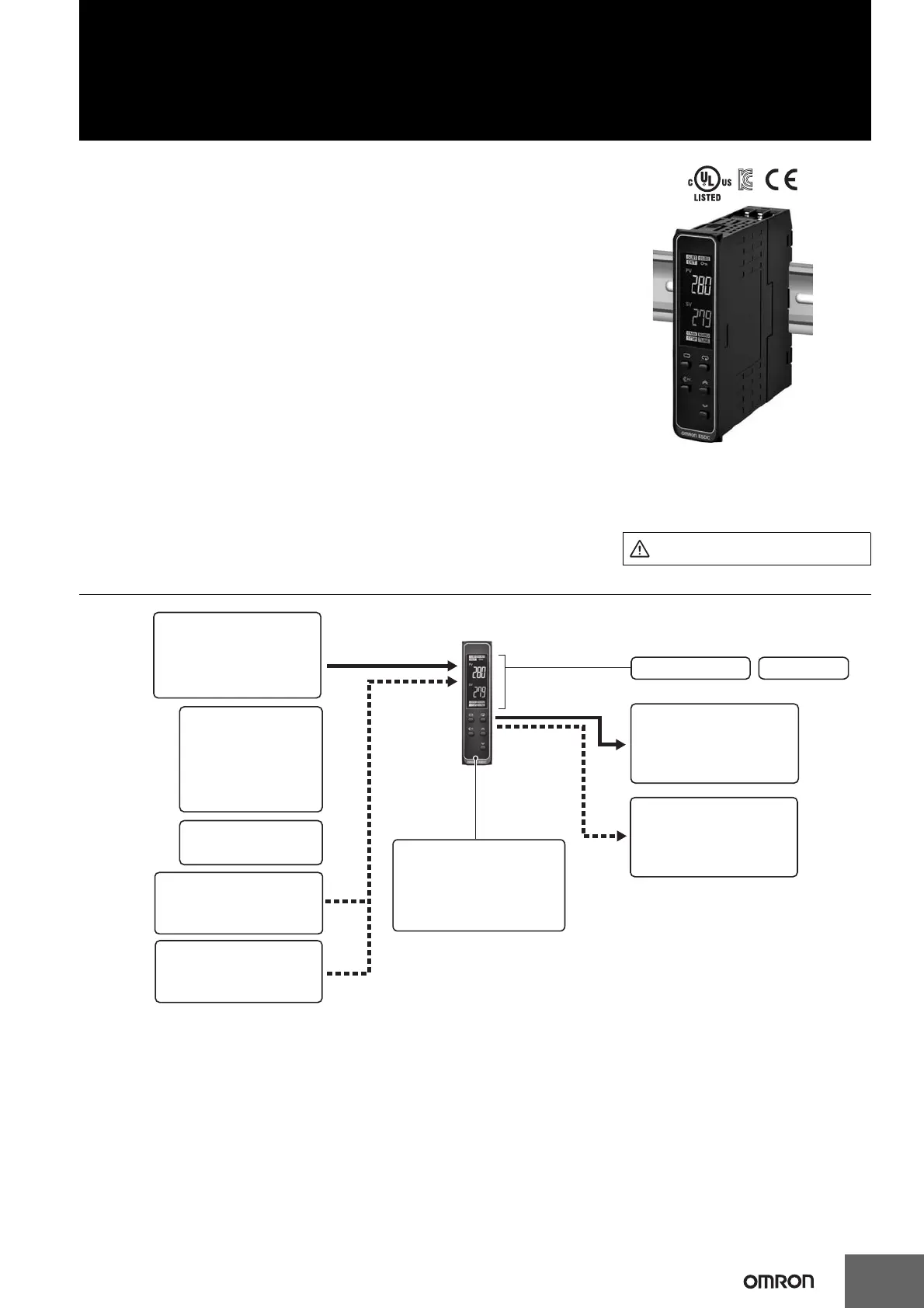

Digital Temperature Controller
E5DC-800
(22.5 mm Wide, and DIN Track-mounting Type)
The E5DC-800 Mounts to DIN Track and Is Ideal
for Connections to HMIs and PLCs.
It provides the Same Easy Operation and
Advanced Performance as the Rest of the
E5@C-800 Series.
A slim body at 85 × 22.5 mm (D × W) that fits into narrow control
panels and mounts to DIN Track.
Removable terminal block for easy replacement to simplify maintenance.
High-speed sampling at 50 ms for applications with high-speed
temperature increases.
Easy connections to a PLC with programless communications.
Models are available with up to 2 auxiliary outputs and 1 event input to
complete basic functions.
A white PV display (height: 8.5 mm) is easy to read when setting up,
checking alarms, and making settings in a control panel.
Main I/O Functions
22.5 mm Wide, and
DIN Track-mounting Type
E5DC-800
Refer to Safety Precautions on page 58.
Refer to your OMRON website for the most recent
information on applicable safety standards.
Event Inputs
• None
• 1
Control Output 1
• Relay output
Voltage output (for driving SSR)
• Linear current output
Auxiliary Outputs
• None
• 2
Dual displays: PV/SV
4-digit displays
• PF (shift) Key
• Temperature status display
• Changed parameter display
Communications
• None
• RS-485
E5DC-800
• Independent heating and
cooling PID control
Sensor Input
Indication Accuracy
Thermocouple input:
±0.3% of PV
Pt input: ±0.2% of PV
Analog input:
±0.2% of FS
Sampling Period
50 ms
Universal input
Thermocouple
Pt
Analog current/voltage
