Omron E5CC Communications Manual

6 Programless Communications
6 - 44
E5@C Digital Temperature Controllers Communications Manual (H175)
[0..89] in the data type indicates the first and last array numbers in the array variable.
Programless communications for E5C Controllers use 30 words of PLC memory for each
Controller. If the first word is 0, then the last word is 30 x n
− 1.
Here, n is the number of E5C Controllers used in the same programless communications.
Note: For details on array specifications, refer to the NJ/NX-series CPU Unit Software User's Manual (Cat. No.
W501).

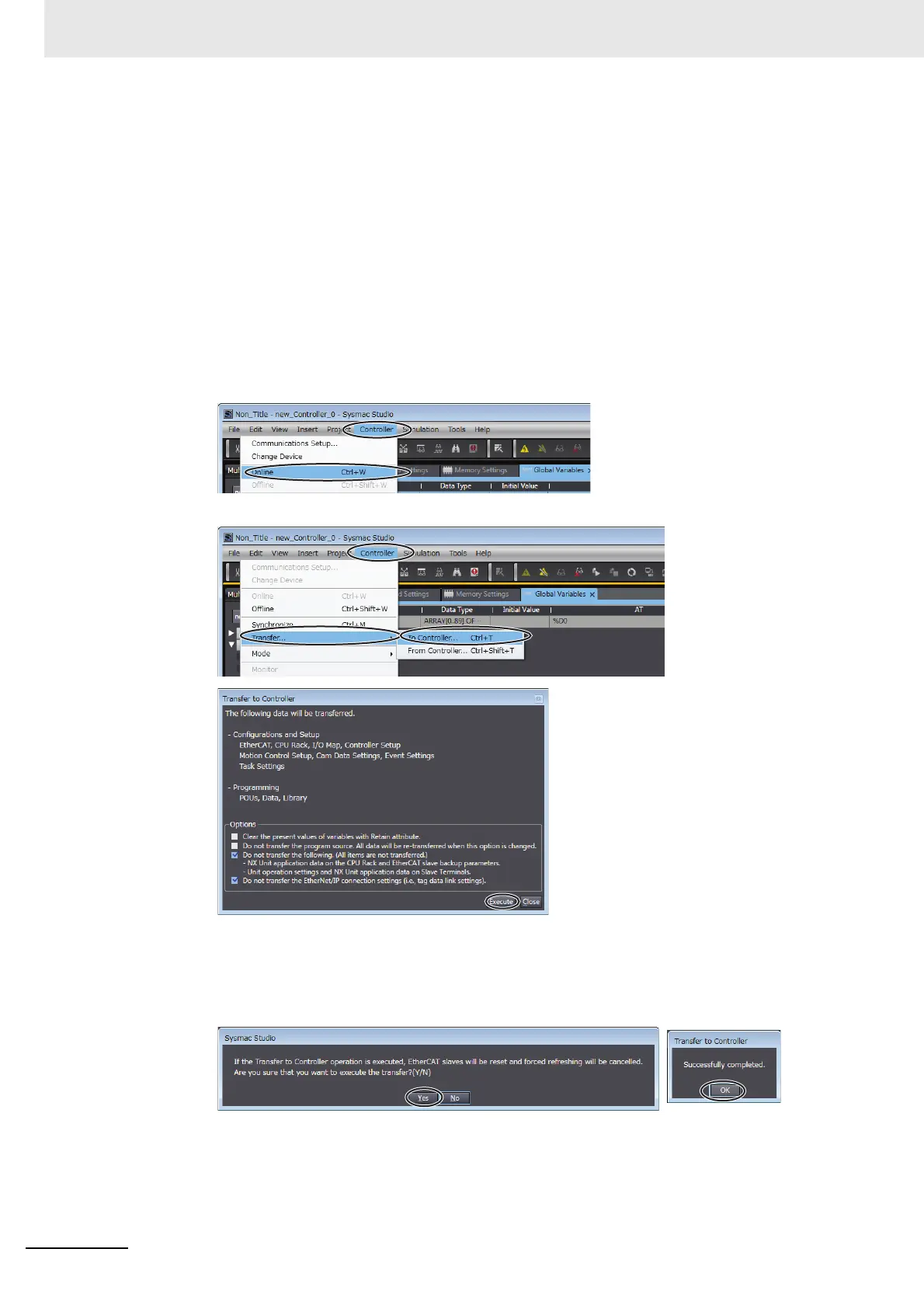

(3) Transfer the project that was created on the Sysmac Studio to the PLC.
Select Controller
− Online from the menu bar to go online and then select Controller-
Transfer
− To Controller.
The Transfer to Controller Dialog Box will be displayed. Click the Execute Button to
transfer the project to the Controller.
A message saying that forced status will be canceled will be displayed. Click the Yes
Button.
If a dialog box that says execution ended normally is displayed, the transfer has been
concluded. Click the OK Button.

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
