6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-5 Connecting to CJ-series PLCs
6
6-5-4 E5@C Controller Setup

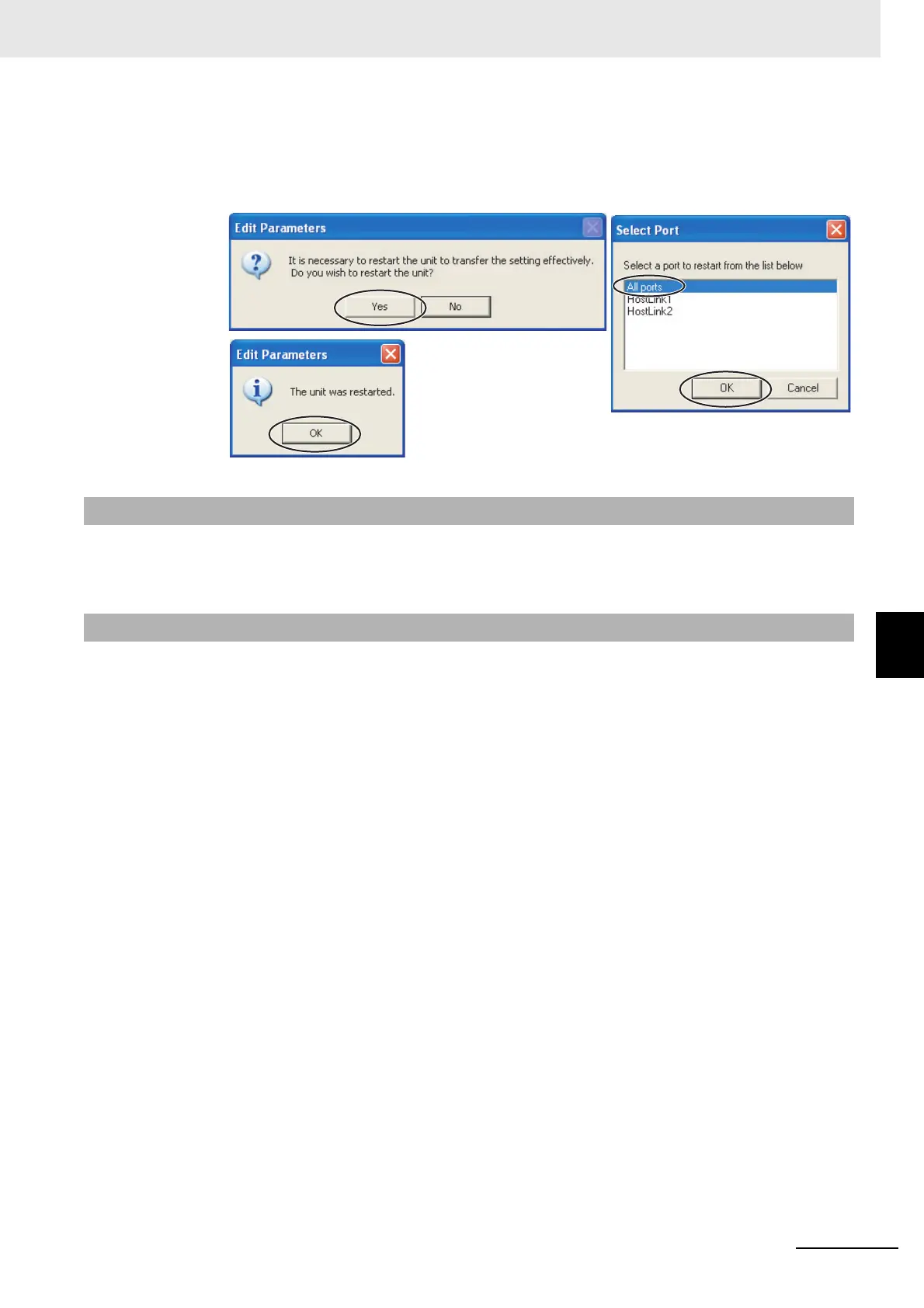

Click the Yes Button to restart the Unit. Select All ports and then click the OK Button.
A dialog box will be displayed when the Unit has been restarted. Click the OK Button. This
completes the PLC setup procedure. You will use the CX-Programmer to check operation,
so leave it online.
Set up programless communications. Perform the procedure that is given in 6-4-4 E5 @ C Controller
Setup.
Perform the procedure that is given in 6-4-5 Checking Operation.
6-5-4 E5@C Controller Setup
6-5-5 Checking Operation

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
