Omron E5CC - Page 107

2 - 69
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-2 Using the Terminals
2

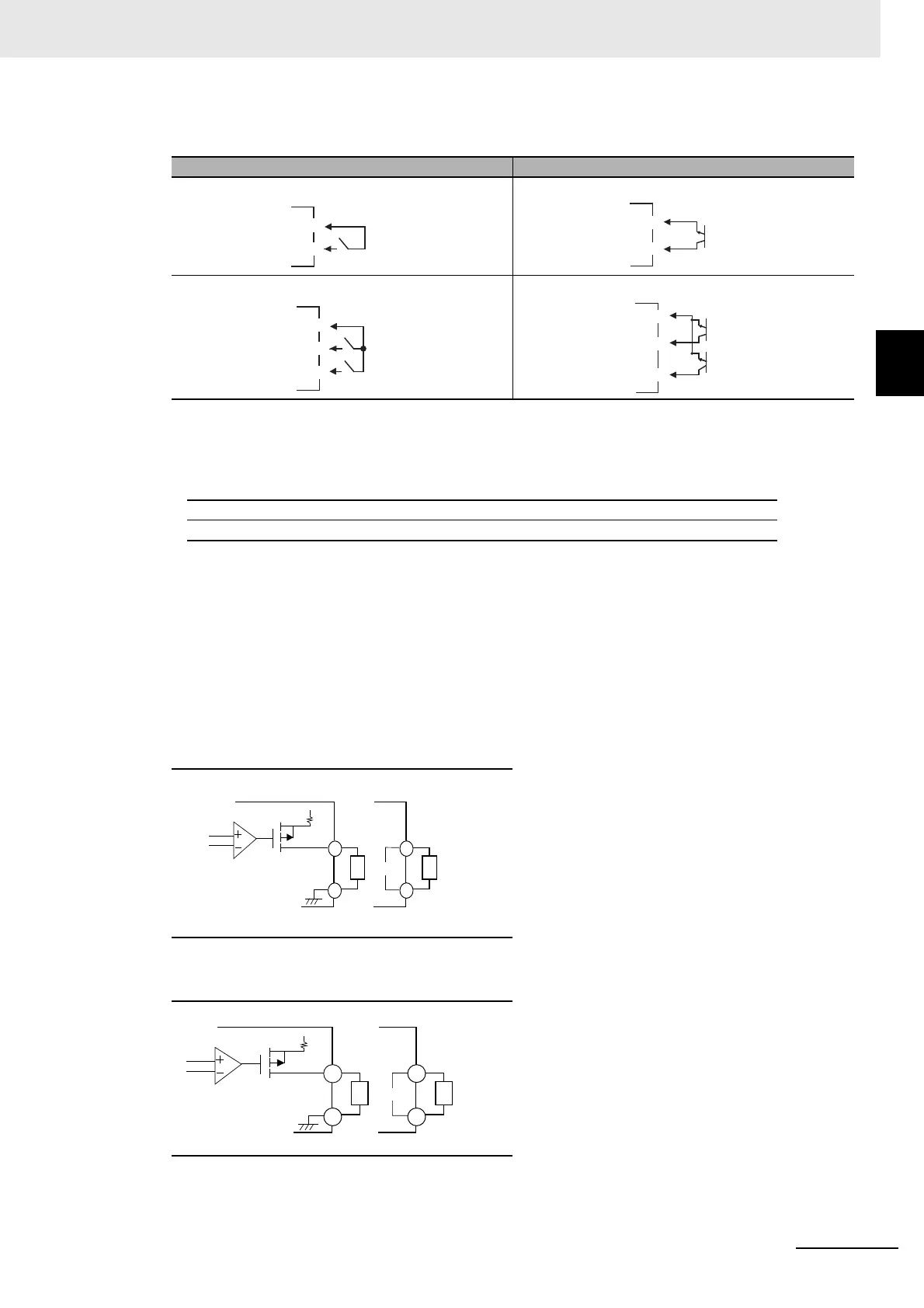

2-2-10 Wiring
E5GC
• Use non-voltage inputs for the event inputs.
• Use event inputs under the following conditions:
The outflow current is approximately 7 mA.
Note: The E5CC-U does not have event inputs.
 CT Inputs
Models with an option number of 001 to 003, 008 to 012, 017, or 023 have one or more CT inputs.
Note: The E5CC-U does not have CT inputs.
 Transfer Output
Models with an option number of 006 or 011 to 014 have a transfer output.
E5CC
E5CC-B
Contact inputs Non-contact inputs
Option number: 016
Option number: 024
Contact input ON: 1 kΩ max., OFF: 100 kΩ min.
No-contact input ON: Residual voltage of 1.5 V max.; OFF: Leakage current of 0.1 mA max.
Option number: 006
Option number: 006
EV1
G
H
G
H
EV1
+
−
EV1
EV2
G
H
I
G
H
I
EV1
+
−
+
EV2
+ v
+
−
L
Current output Linear voltage output
+
−
L
V
18
17
18
16
+v
+
−
L
Current output Linear voltage output
+
−
L
V
23
24
22
24
