5 Advanced Operations
E5@C Digital Temperature Controllers User’s Manual (H174)
5-22 Logic Operations
5
5-22-2 Using Logic Operations
(3) Selecting the Operation Type

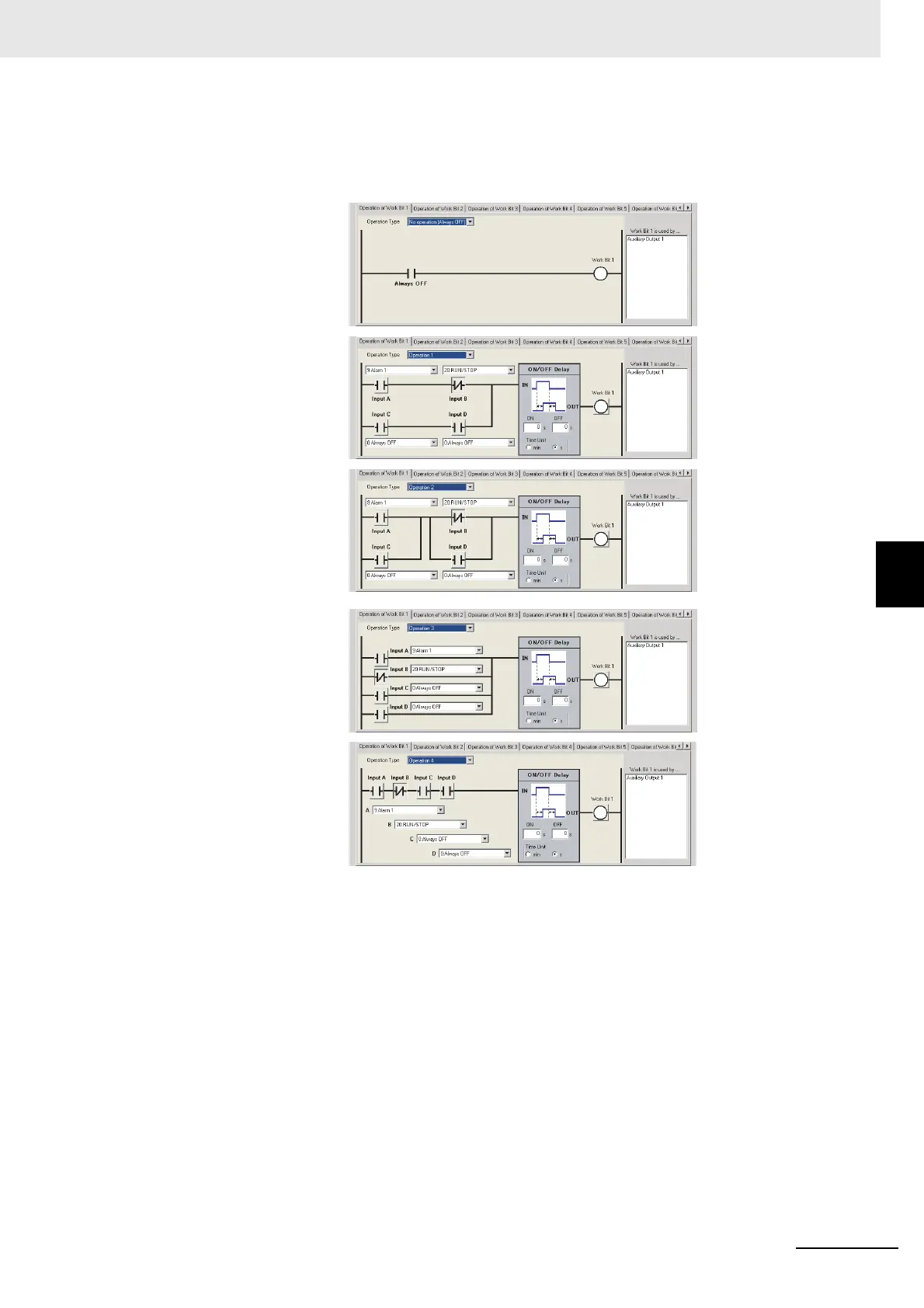

From one to four operations are supported. If work bits are not to be used, set them to No
operation (Always OFF) (the default).
• No operation
(Always OFF)
• Operation 1
(A and B) or (C and D)
When conditions A
and B or conditions C
and D are satisfied
• Operation 2
(A or C) and (B or D)
When condition A or C
and condition B or D
are satisfied
• Operation 3
A or B or C or D
When condition A, B,
C or D is satisfied
• Operation 4
A and B and C and D
When conditions A, B,
C and D are all
satisfied

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
