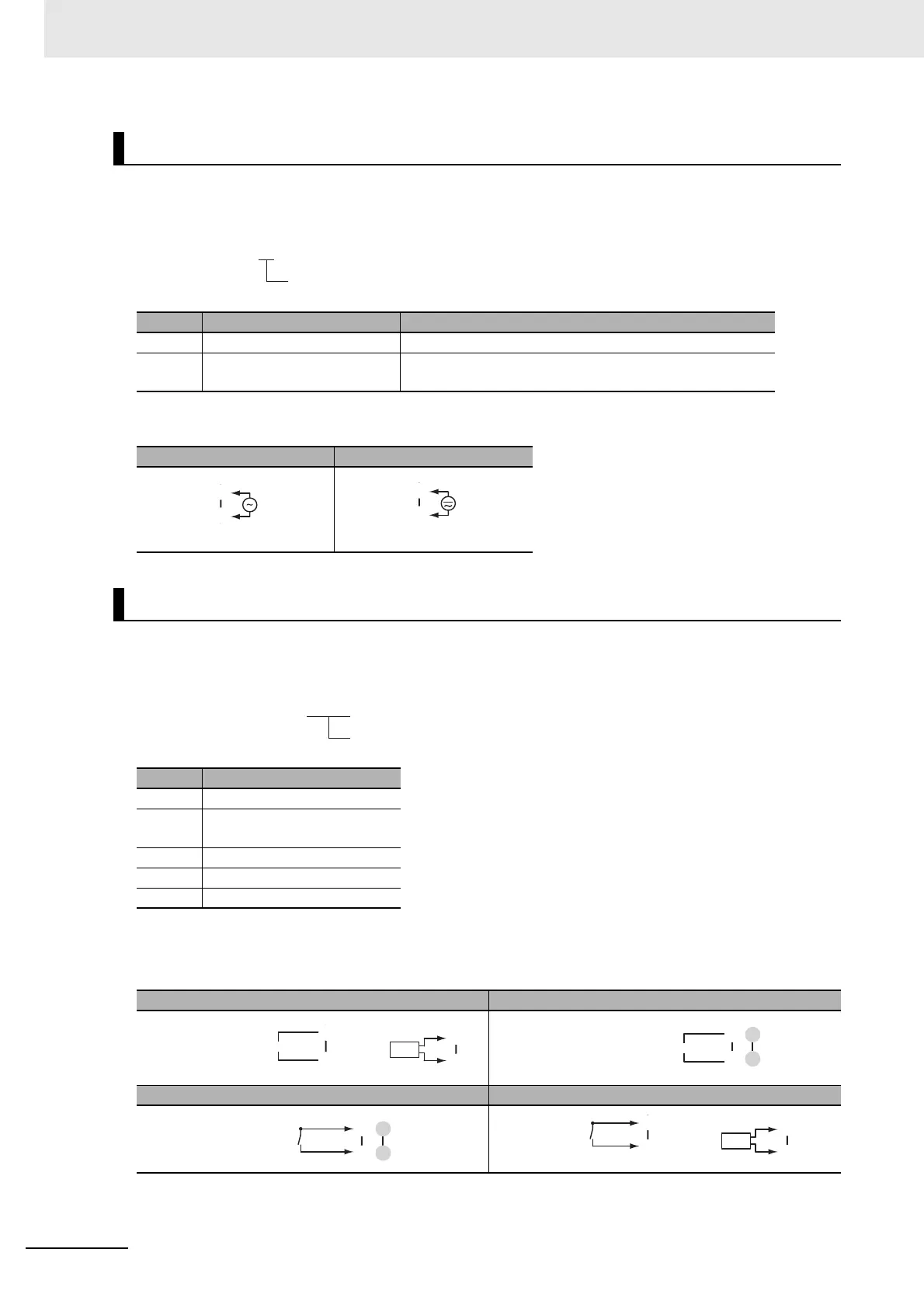

2 Preparations
2 - 48
E5@C Digital Temperature Controllers User’s Manual (H174)
Model Numbers
The input power supply specification of the E5DC is given in the following location in the model number.
Terminal Details
Model Numbers
The options specification of the E5DC is given in the following location in the model number.
Terminal Details
Do not connect anything to the terminals that are shaded gray.
Note: Use a non-voltage input for the event input.
The polarity for a non-contact input is indicated by “(-).”
Input power supply
Code Specifications Power consumption
A 100 to 240 VAC (50/60 Hz) 4.9 VA max.
D 24 VAC (50/60 Hz)
24 VDC (no polarity)
2.8 VA max./1.5 W max.
100 to 240 VAC 24 VAC/DC
Options
Code Specifications
000 None
002 Communications (RS-485)
and CT1
015 Communications (RS-485)
016 Event input 1
017 Event input 1 and CT 1
002 015
016 017
E5DC-@@ @ @ S M-@@@
Input power supply
B
A
(no polarity)
B
A
E5DC-@@ @ @ S M-@@@
Options
B(+)
A()
RS-485
C
D
Communications
G
H
CT1
CT
B(+)
A()
RS-485
C
D
Communications
G
H
EV1
C
D
Event input
G
H
(−)
C
D
EV1
Event input
(−)
G
H
CT1
CT
