Omron E5CC User Manual

2 Preparations
2 - 50
E5@C Digital Temperature Controllers User’s Manual (H174)

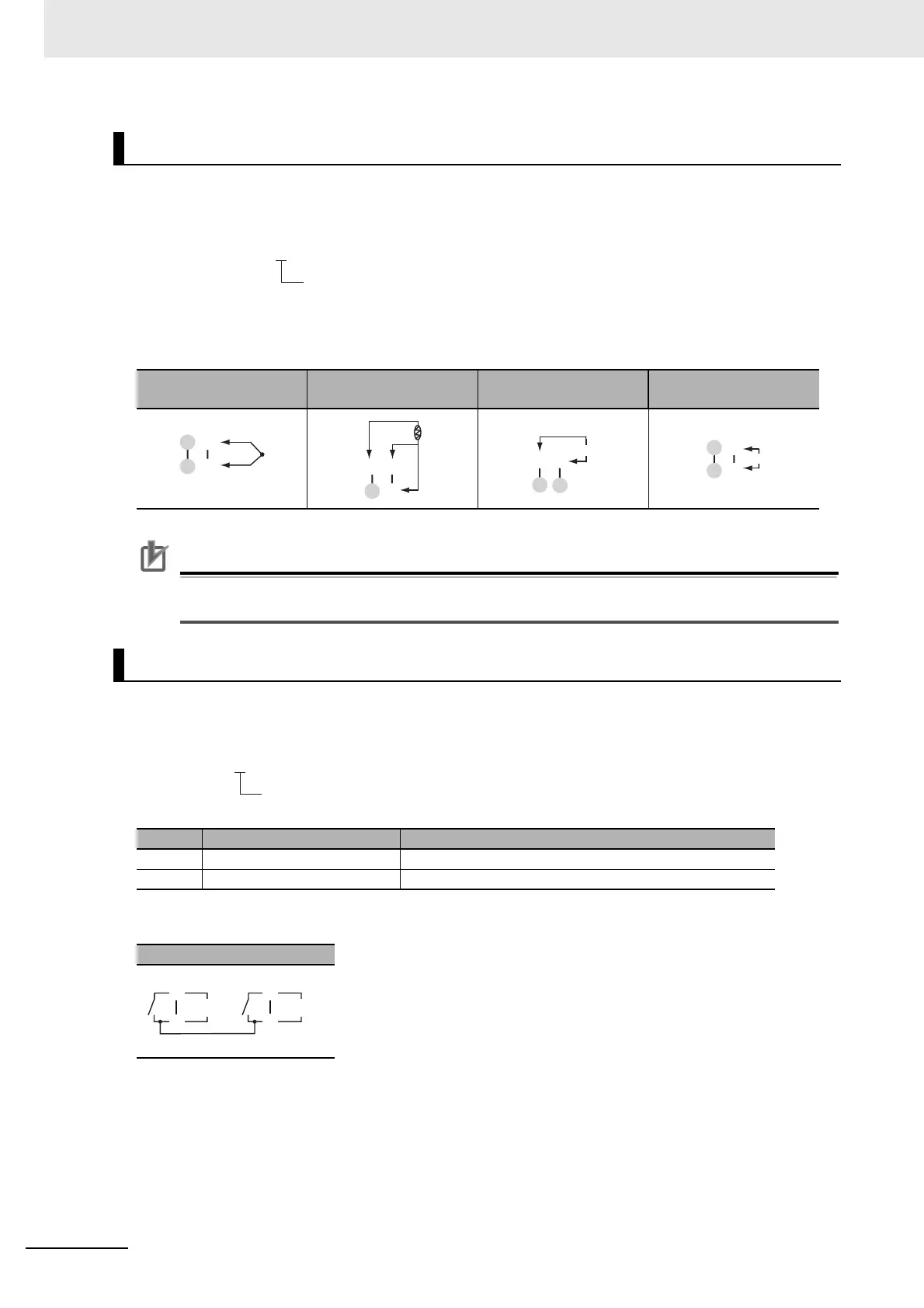

 Model Numbers
All E5DC-B models have universal sensor inputs, so the code in the model number is always “M.”
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
Precautions for Correct Use
When complying with EMC standards, the line connecting the sensor must be 30 m or less.
If the cable length exceeds 30 m, compliance with EMC standards will not be possible.
 Model Numbers
The number of auxiliary outputs on the E5DC-B is given in the following location in the model number.
 Terminal Details
Sensor input
TC (thermocouple)
Pt (resistance
thermometer)
I (current) V (voltage)
Auxiliary Outputs
Code Auxiliary outputs Specifications
0 None None
2 2 auxiliary outputs SPST-NO, 250 VAC, 2 A
Two auxiliary outputs
E5DC-@@@@BM-@@@
Sensor input
K
O
P
L
−
+
AB
B
L
P
K
O
+
L
mA
−
K
O
P
V
K
O
P
L
−
+
E5DC-@@@@BM-@@@
No. of auxiliary outputs
Auxiliary
output 1
Auxiliary
output 2
I
J
M
N

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
