Omron E5CC User Manual

2 Preparations
2 - 54
E5@C Digital Temperature Controllers User’s Manual (H174)

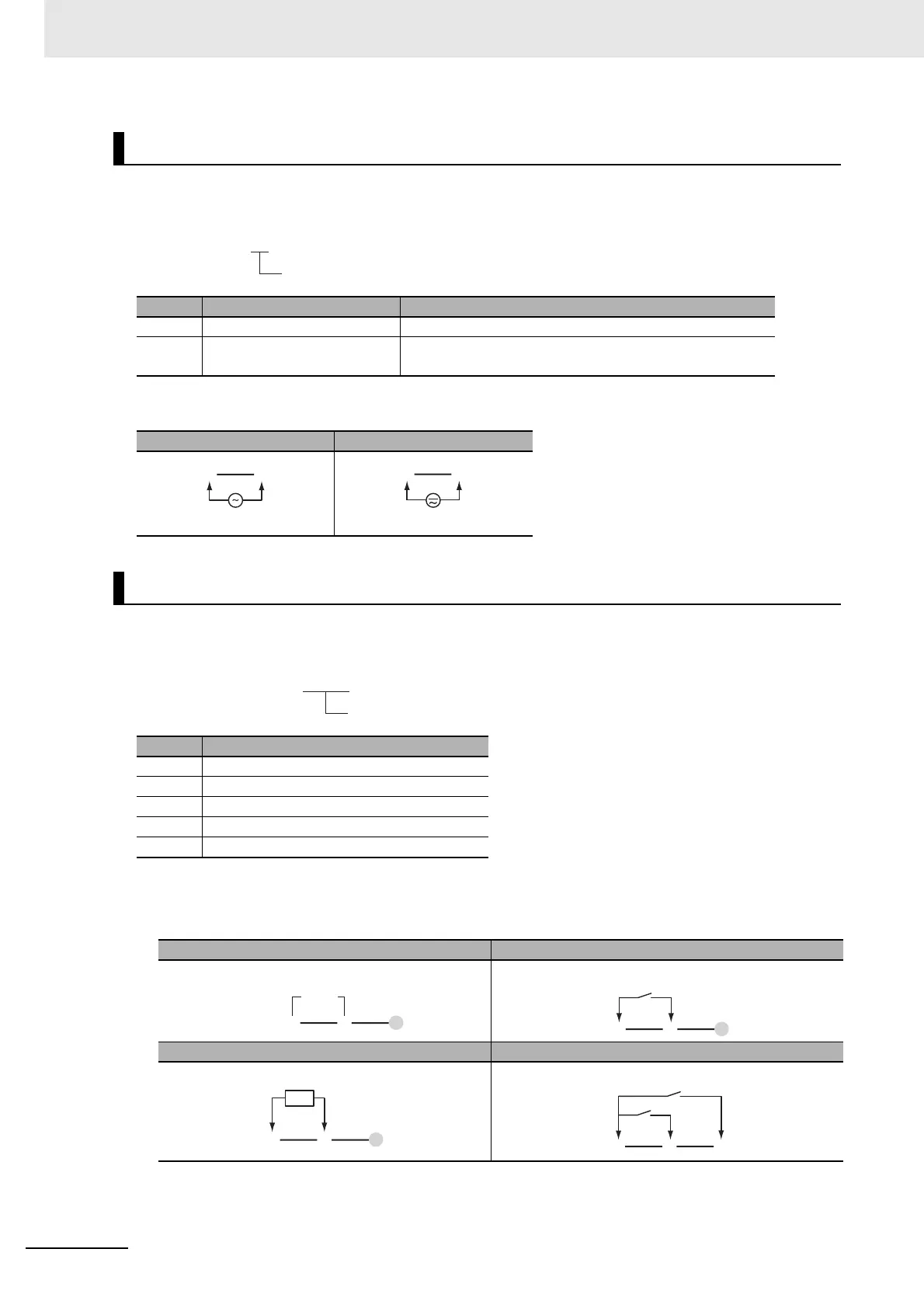

 Model Numbers
The input power supply specification of the E5GC is given in the following location in the model number.
 Terminal Details
 Model Numbers
The options specification of the E5GC is given in the following location in the model number.
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
* To use auxiliary output 2, connect to terminal 9.
Note: Use non-voltage inputs for the event inputs.
The polarity for a non-contact input is indicated by “(-).”
Input Power Supply
Code Specification Power consumption
A 100 to 240 VAC (50/60 Hz) 5.9 VA max.
D 24 VAC (50/60 Hz)
24 VDC (no polarity)
3.2 VA max./1.8 W max.
100 to 240 VAC 24 VAC/DC
Options
Code Specification
000 None
015 Communications (RS-485)
016 Event input 1
023 CT1
024 Event inputs 1 and 2
015 016
023 024
E5GC-@@ @ @ @ M-@@@
Input power supply
BA
BA
(no polarity)
E5GC-@@ @ @ @ M-@@@
Options
HG I
B(+) A(−)
RS-485
Communications
*
HG I
(−)
EV1
Event input
*
HG I
CT1
*
HG I
(−)
EV1
EV2
Event input

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
