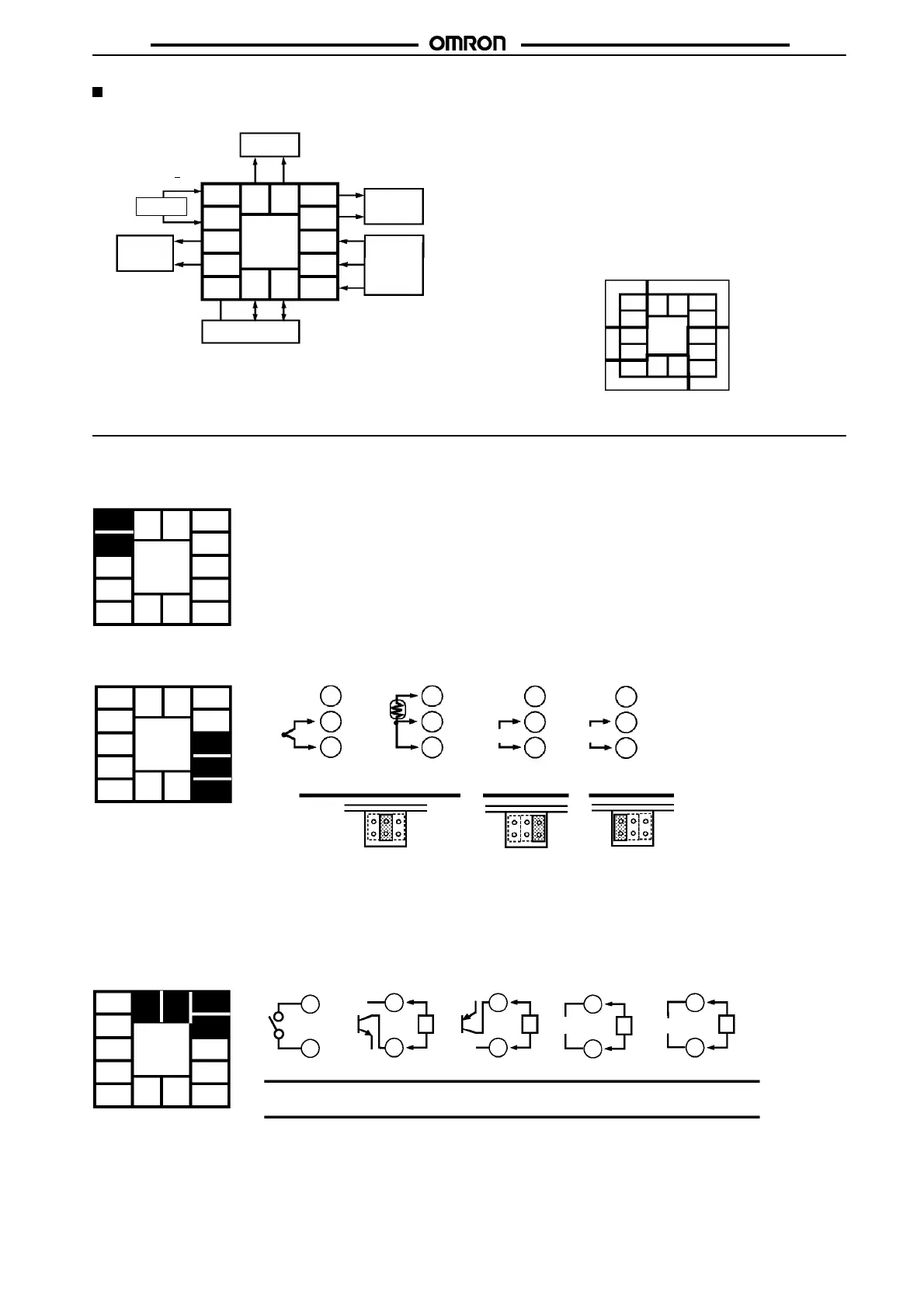

Wiring
Terminal Arrangement
5
4
3
2
1
10
9
8
7
6
13 14
11 12
OUT1
OUT2
SUB1
OPTION
IN
AC100240V~
(AC/DC24V~)
SOURCE
Precautions
Use ducts to separate inputleadsand powerlines inorder toprotect
the Controller and its lines from external noise.
Solderless terminals are recommended when wiring the Controller.
Tighten the terminal screws using a torque no greater than
0.78 N S m, or 8 kgf S cm max. Take care not to tighten the terminal
screws too tightly.
Power Blocks
The E5CK has independent power supplies for each of the terminal
blocks shown below. However, note that the power supplies for
blocks C (exclude relay output) and D are shared for the following
option unit.
· Option unit: E53-CKB or E53-CKF
A C
5
4
3
2
1
10
9
8
7
6
C
D B
11 12
13 14
Wiring
Power Supply
Input 100 to 240 VAC or AC/DC 24 V to terminal numbers 4 and 5 according to the specification.
5
4
3
2
1
10
9
8
7
6
13 14
11 12
Input
Connect the input to terminal numbers 6 to 8 as follows according to the input type.
8
7
6
8
7
6
8
7
6
8
7
6
-
+
-
+
-
+
V mA
TC ×× PT V I
Thermocouple Platinum resistance
thermometer
Voltage input Current input
5
4
3
2
1
10
9
8
7
6
13 14
11 12
Match the inputs with the internal jumper settings for each input type. For thermocouple or platinum resistance thermometer inputs, set the
inputs to a common position (TC/PT) as the temperature input.
Control Output
Terminal numbers11 and12 arefor controloutput 1(OUT1). The fiveoutput typesand internalequalizing circuitsare availableaccording tothe
Output Unit.
5
4
3
2
1
10
9
8
7
6
13 14
11 12
11
12
11
12
L
11
12
L
11
12
L
11
12
L
E53-R4R4 E53-Q4R4
E53-Q4Q4
E53-Q4HR4
E53-Q4HQ4H
E53-V44R4 E53-C4R4
E53-C4DR4
NPN PNP 0 to 10 V 4 to 20mA
+v
+
-
+
-
+
-
+
-
GND
mA
Relay
V
+v
GND
