Omron E5EK-T User Manual

E5jK-T
E5jK-T
2
Compact and Easy-to-use Controllers

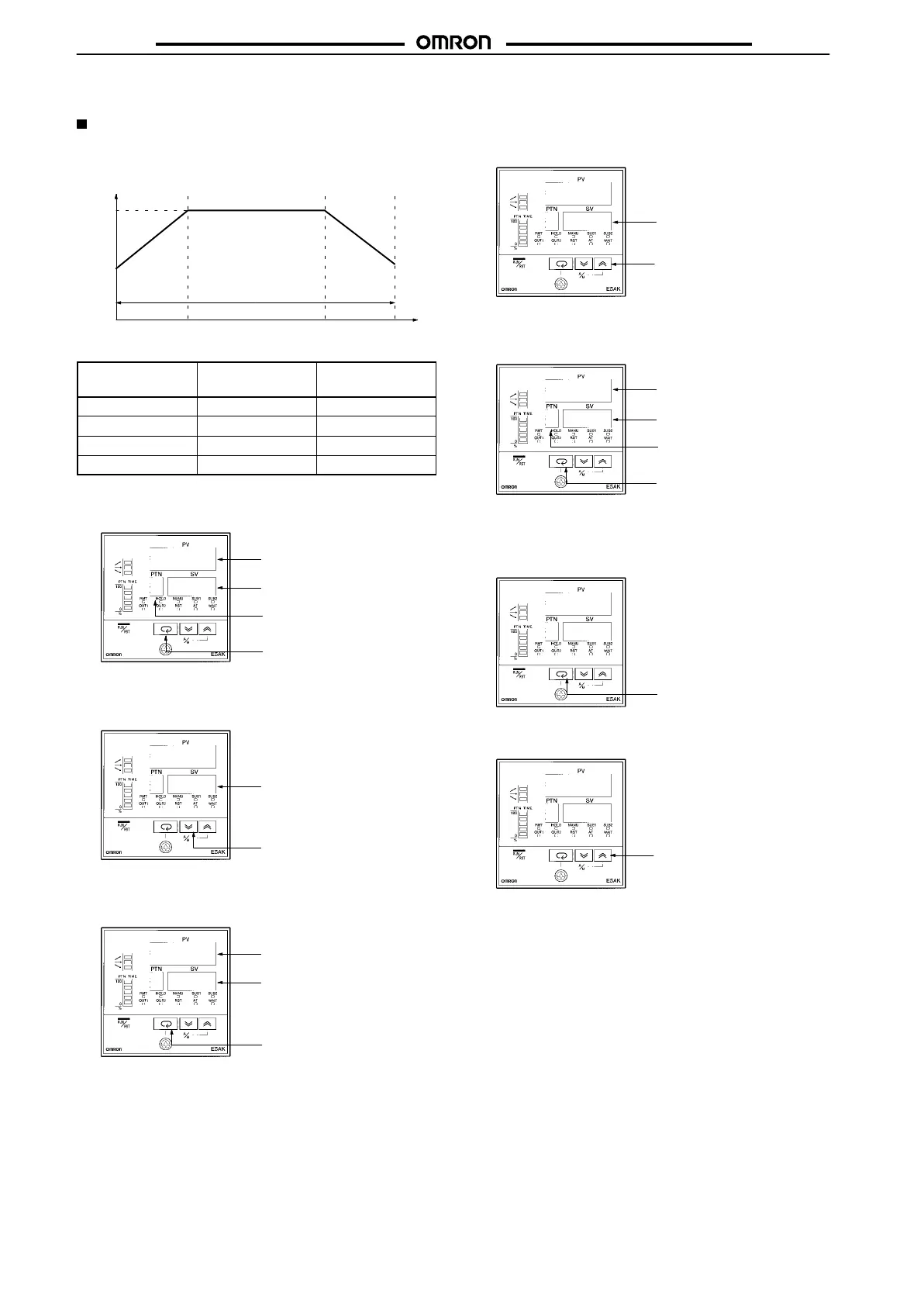

Programming is as easy as following the steps below.
Program can be set in pattern 0 according to the following proce-
dure.
Step
1 Step 2 Step 3
100
50
SP
0.20 0.40 0.20
T
ime: hours and minutes
Step No. T arget value Time
(hours.minutes)
0 50 0.00
1 100 0.20
2 100 0.40
3 50 0.20
1. Press the Display Key to shift to the display
for the number of steps.
5no
0 8
Parameter for the number of
steps used
Number of steps
(Default setting: 8)
Pattern No.
Display key
2. Press the Down Key and set the number of
steps.
5no
0 4
Four steps in this case
Down key
3. Press the Display Key to shift to the display
for the target value of step 0.
Step 0
Parameter of the target value
Target value
(Default setting: 0)
5p0
0 0
Display key
4. Set the target value to “50.”
5p0
050
Target value
Up key
5. Press the Display Key to shift to the display
for the time of step 0.
ti0
0 000
Time parameter for step 0.
Step time
(Default setting: 0.00)
Pattern No.
Display key
6. Press the Display Key again with the step
time set at 0 minutes, and the target value
parameter for step 1 will be displayed.
5p1
0 0
Display key
7. Press the Up Key to increment to “100.”
5p1
0 100
Up key
In the same manner, set the time for step 1, tar-
get value for step 2, time for step 2, etc.
When the target value and time settings are
complete, press the Display Key.
