E5jK-T
E5jK-T
32
Close in Alarm/Open in Alarm
When the Controller is set to “close in alarm,” the status of the alarm
output function is output as it is. When set to “open in alarm,” the sta -
tus
of the alarm output function is output inverted.
Condition Alarm Output Output LED
Close in
l
ON ON Lit
C ose
alarm
OFF OFF Not lit
Open in
l
ON OFF Lit
Oe
alarm
OFF ON Not lit
Alarm type and close in alarm (normally open)/open in alarm (nor -
mally
close) can be set independently from each alarm.
Close in alarm/Open in alarm is set in the “alarm 1 to 3 open in
alarm”
parameters (setup mode). Factory setting is “close in alarm”
[ no ].

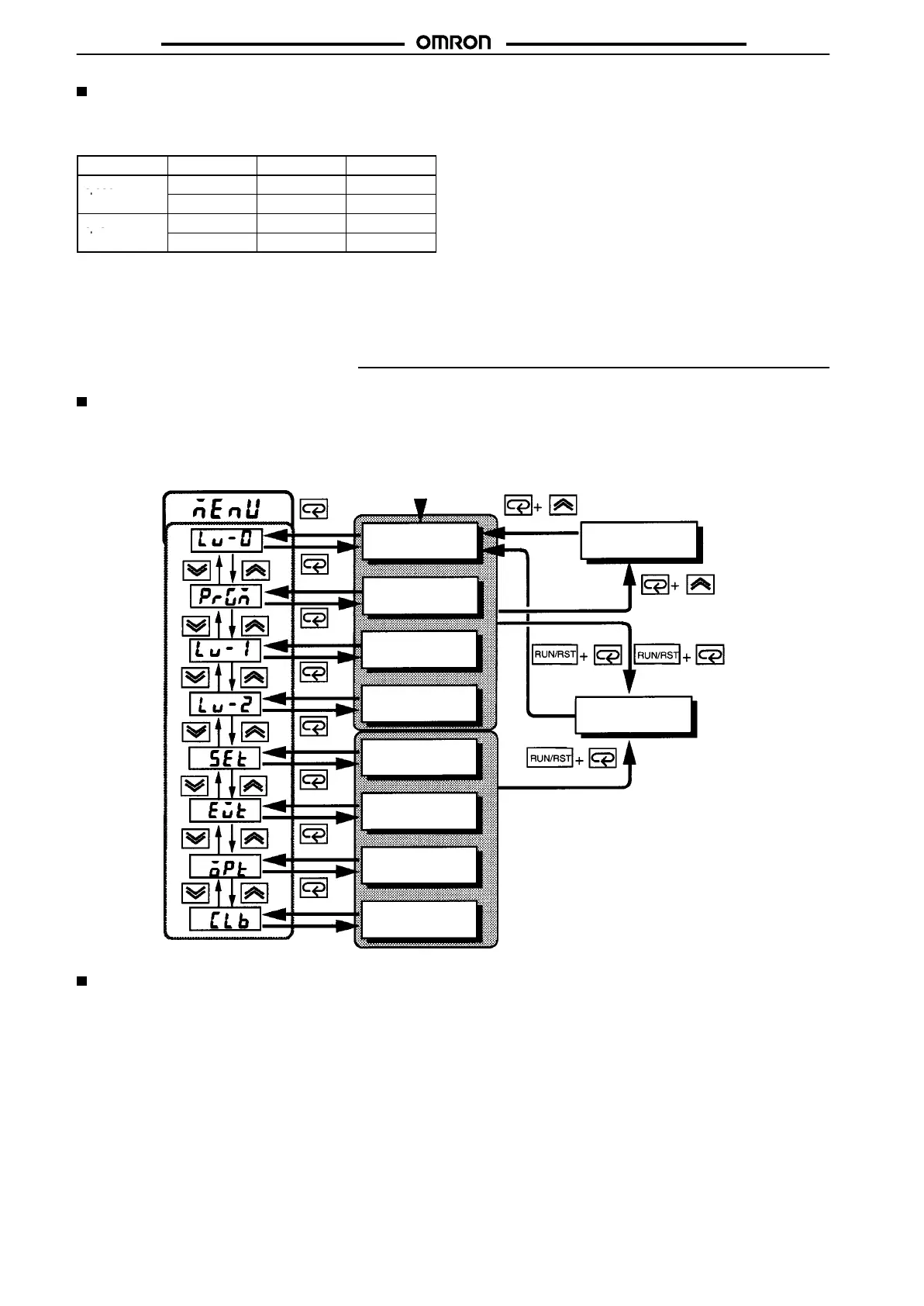

Parameter Operations
Parameter Operation List
Switching to modes other than manual or protect mode is carried out using the mode selection in the menu display .
The
figure below shows all parameters in the order that they are displayed. Some parameters are not displayed depending on the protect mode
setting and conditions of use.
Power ON
Level
0 mode
Level 1 mode
Level 2 mode
Setup mode
Expansion mode
Option mode
Calibration mode
1 second min.
Program mode
Protect mode
Manual mode
1 second min.
1 second min. 1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
Parameters and Menus
Note: For more details on the functions of each part and display contents, refer to the E5AK-T/E5EK-T/E5CK-T User’s Manual
(H88/H89/H90)
.
Protect Mode The
protect function is for preventing unwanted modification of parameters and switching between
run and reset operation or auto and manual operation.
Manual Mode In this mode, the Controller can be switched to manual operation. The manipulated variable can be
manipulated manually only in this mode.
