Omron E5EK-T User Manual

E5jK-T
E5jK-T
40
SSR

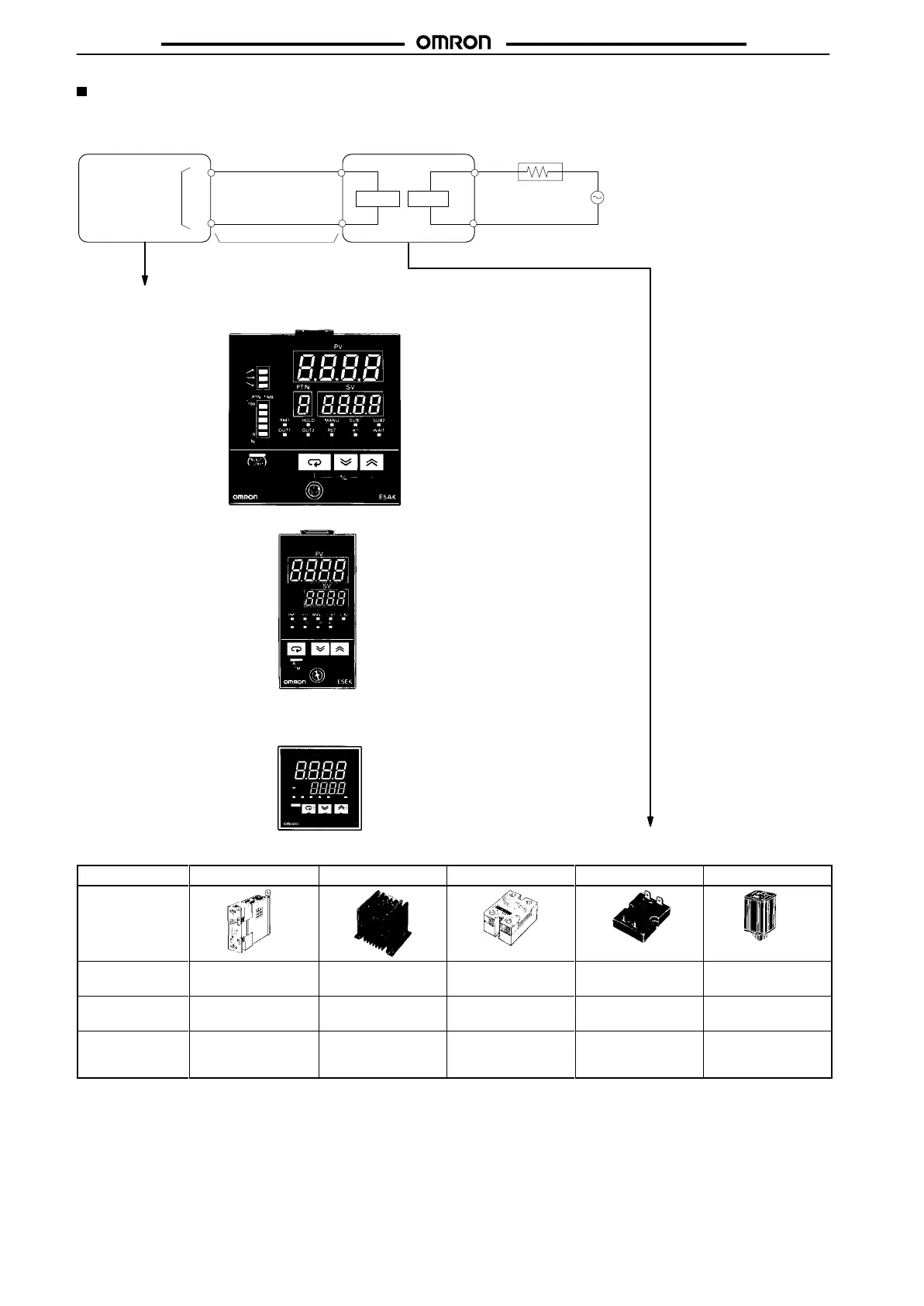

Connection Example of Digital Controller and SSR
+
–
+
–
Digital Controller
Voltage output
terminal (for driv-
ing SSR)
Connectable
Load
Heater
Power supply
for load
Power SSR
SSR
E5AK-T, E5EK-T
Digital Controller with
Voltage Output
(12 VDC, 40 mA max.)
See the following table.
E5CK
Digital Controller with
Voltage Output
(12 VDC, 20 mA max.)
INPUT LOAD
Model G3PA G3NH G3NA G3NE G3B
Appearance
SSRs connected
in parallel
E5AK/E5EK: 5 pcs.
E5CK: 3 pcs.
E5AK/E5EK: 8 pcs.
E5CK: 4 pcs.
E5AK/E5EK: 5 pcs.
E5CK: 2 pcs.
E5AK/E5EK: 2 pcs.
E5CK: 1 piece
E5AK/E5EK: 5 pcs.
E5CK: 2 pcs.
Rated input
voltage
5 to 24 VDC 5 to 24 VDC 5 to 24 VDC 12 VDC 5 to 24 VDC
Features Thin, monoblock
construction with
heat sink
For high-power
heater control
Standard model with
screw terminals
Compact, low-cost
model with tab
terminals
Socket, model with
5-A switching
capacity
