Omron F3SJ-A series Manual

F3SJ-A
7

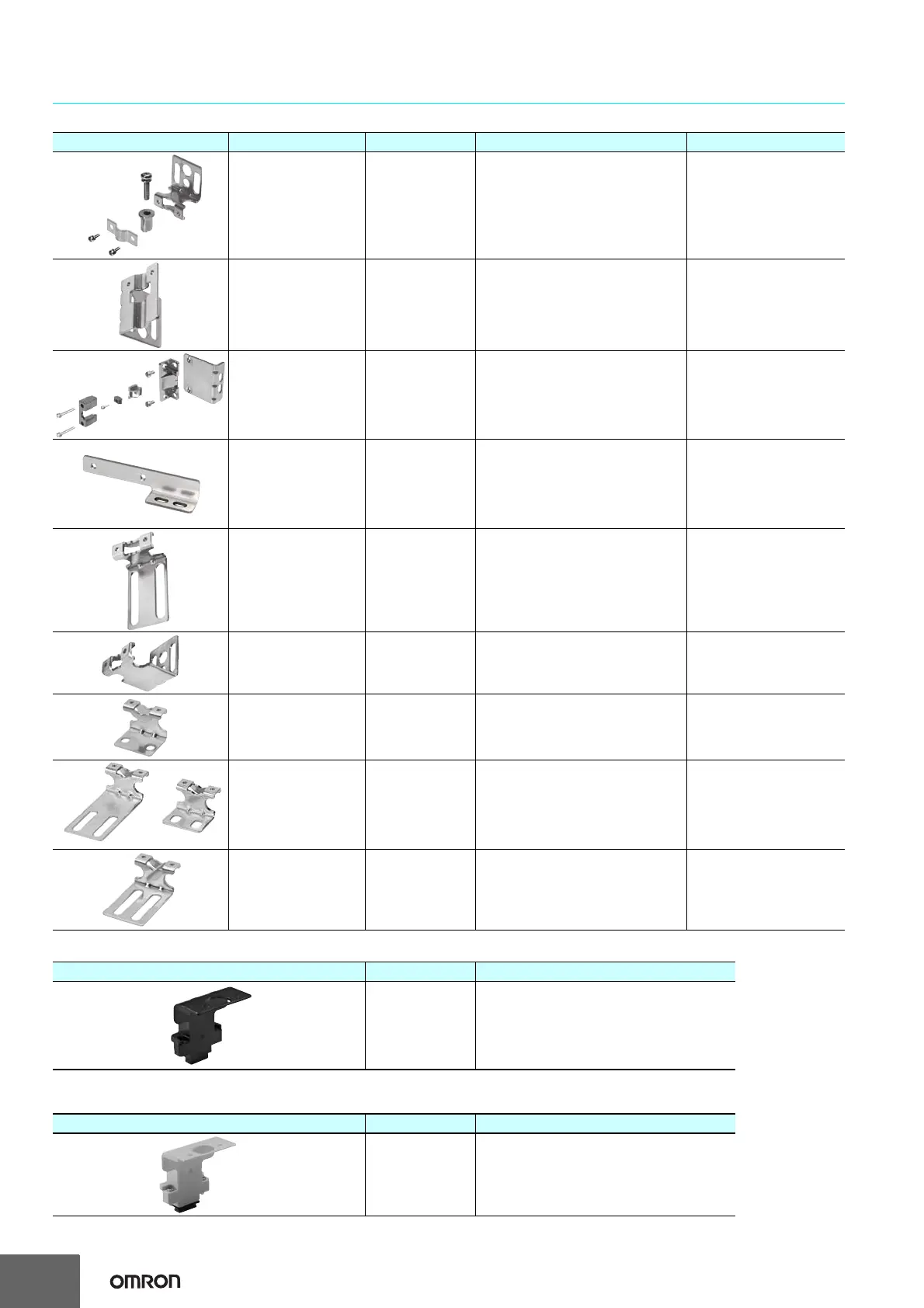

Sensor Mounting Brackets (Sold separately)
End Cap
* This product is for F3SJ-A only.
Key Cap for Muting
* This product is for F3SJ-A only.
Appearance Specifications Model Application Remarks
Standard mounting
bracket
(for top/bottom)
F39-LJ1 (provided with the F3SJ)
2 for an emitter,
2 for a receiver,
total of 4 per set
Flat side
mounting bracket
F39-LJ2
Use these small-sized brackets when
performing side mounting
with standard mounting brackets, so
that
they do not protrude from the
detection surface.
2 for an emitter,
2 for a receiver,
total of 4 per set
Free-location
mounting bracket
(also used as standard
intermediate bracket)
F39-LJ3
Use these brackets for mounting on
any place without using standard
bracket.
Two brackets per set
(For details about the
number of required
brackets, refer to page 89.)
F3SN Intermediate
Bracket
Replacement
Spacers
F39-LJ3-SN
When replacing the F3SN with the
F3SJ, the mounting hole pitches in
the Intermediate Brackets are not the
same. This Spacer is placed
between the mounting holes to
mount the F3SJ.
1 set with 2 pieces
Top/bottom bracket B
(Mounting hole pitch
19 mm)
F39-LJ4
Mounting bracket used when
replacing existing area sensors
(other than F3SN or F3WN) with the
F3SJ.
For front mounting.
Suitable for mounting hole pitch of 18
to 20 mm.
2 for an emitter,
2 for a receiver,
total of 4 per set
Bracket for replacing
short-length F3SN
F39-LJ5
Mounting bracket used when an
F3SN with protective height of 300
mm or less is replaced by an F3SJ.
2 for an emitter,
2 for a receiver,
total of 4 per set
Space-saving
mounting bracket
F39-LJ8
Use these brackets to mount facing
inward. Length is 12 mm shorter than
the standard F39-LJ1 bracket.
2 for an emitter,
2 for a receiver,
total of 4 per set
Mounting bracket used
when replacing an
F3W-C.
F39-LJ9
Mounting bracket used when
replacing existing F3W-C series area
sensors with the F3SJ.
For front mounting or side mounting.
Mounting hole pitch 16 mm.
2 for an emitter,
2 for a receiver,
total of 4 per set
Top/bottom bracket C
(mounting hole pitch 13
mm)
F39-LJ11
Mounting bracket used when
replacing existing area sensors
having a mounting pitch of 13 mm
with the F3SJ.
2 for an emitter,
2 for a receiver,
total of 4 per set
Appearance Model Remarks
F39-CN9
*
For both emitter and receiver.
The End Cap can be purchased if lost.
(Case: Black)
Appearance Model Remarks
F39-CN6
*
A cap to be attached to the main unit to enable
muting function.
Attach it to either an emitter or a
receiver.(Case: orange)
