Omron fh series Startup Guide

22
2

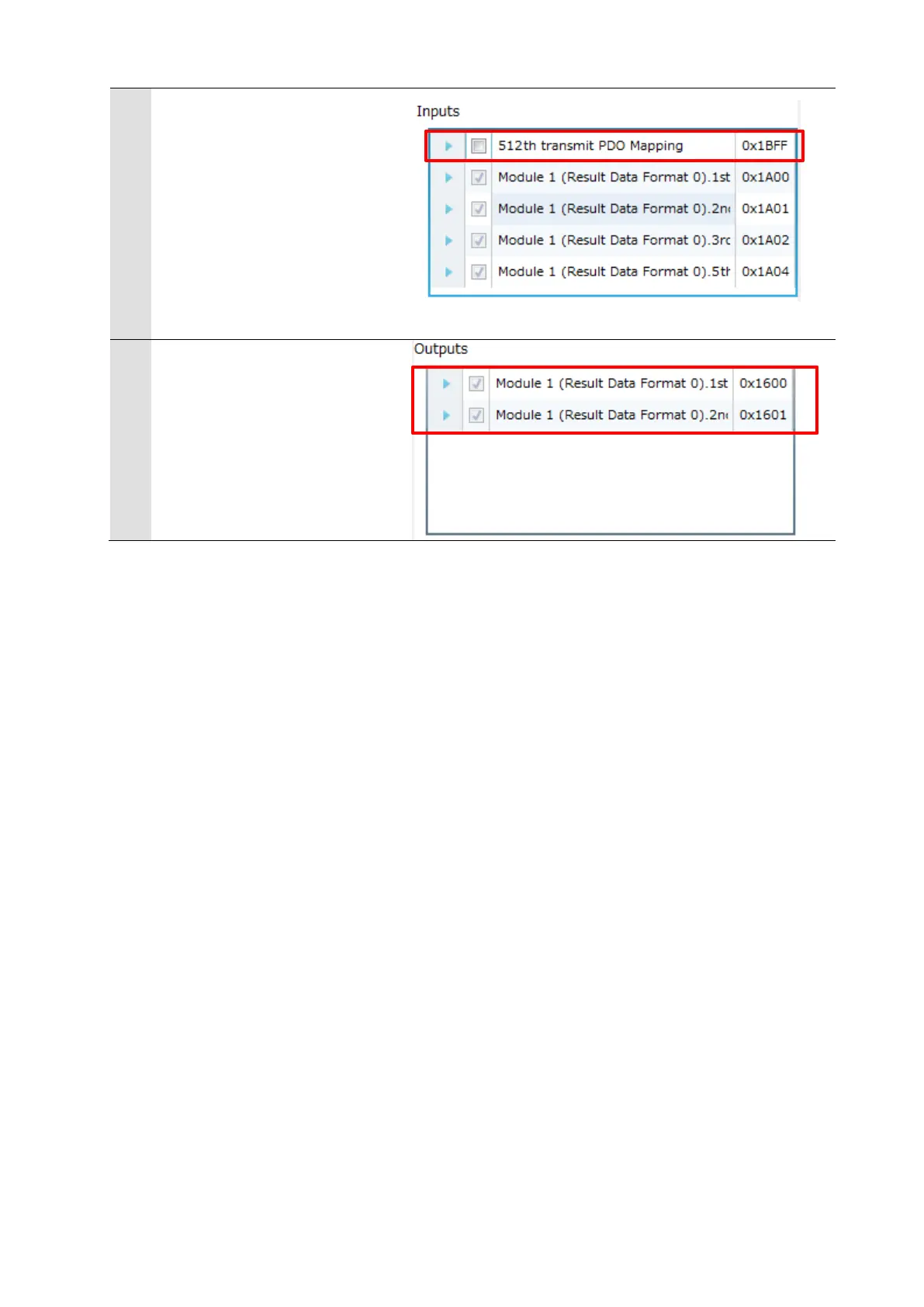

Setting PDO mapping (Inputs)
Check the Inputs field to make
sure that the 512th transmit PDO
Mapping 0x1BFF check box is
not selected.
3
Setting PDO mapping (Outputs)
You do not need to configure the
settings as there are no settings
that can be changed.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
