Omron fh series Startup Guide

28
4
The program starts running
when it has been downloaded
successfully.
EtherCAT communications are
in the OP state. Make sure that
measurement is carried out.
* If measurement is not carried
out, check that the
ECAT[0].Enable value is 1 in the
Terminal tab page or Watch
Window.
If the value is 0, run the following
command from the Terminal tab
page.

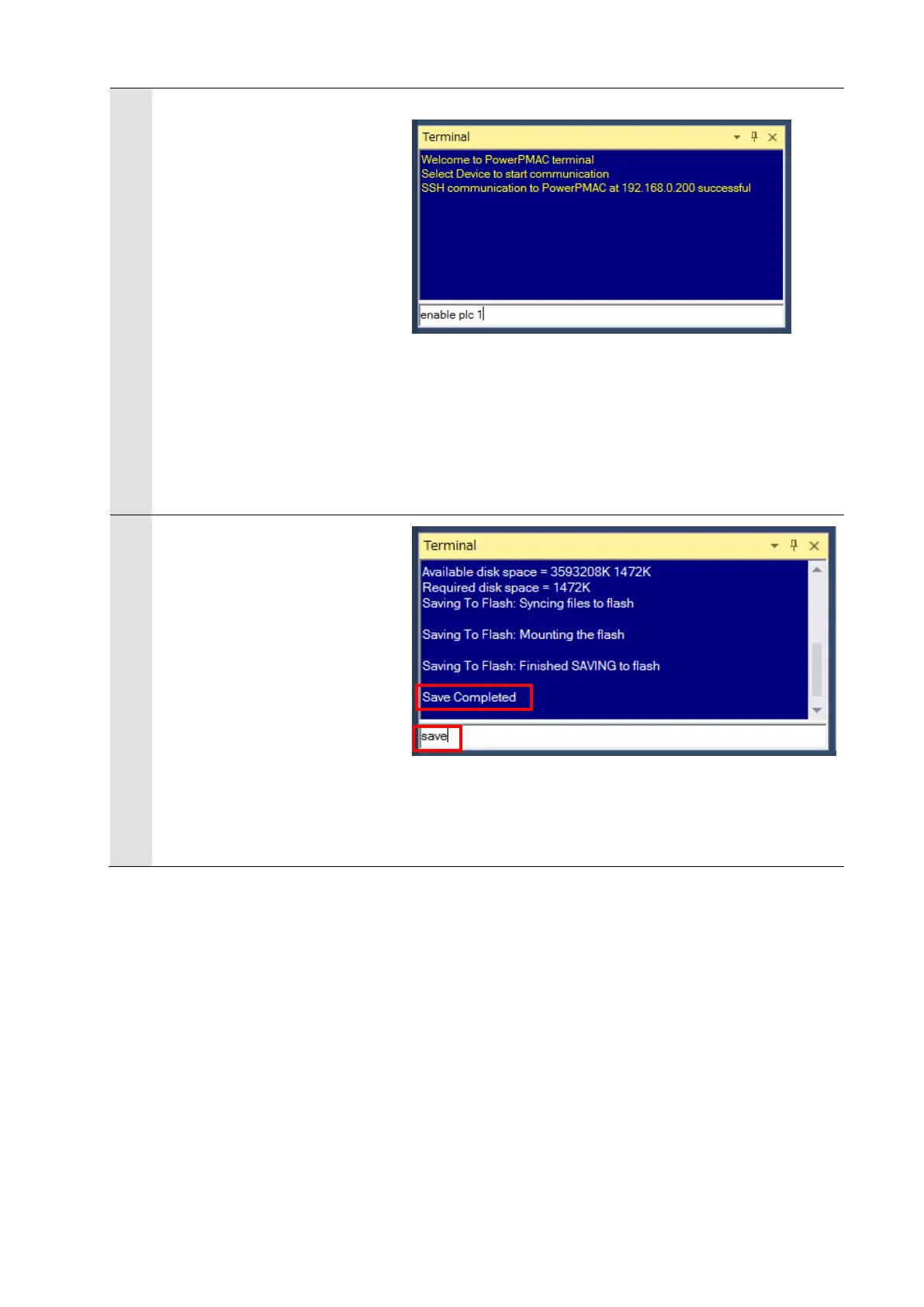

enable plc 1
5
After you have confirmed an
appropriate operation, save the
project to the Controller.
Run the save command from the
Terminal tab page.
* The save command stores the
downloaded project in the
Controller. This operation saves
the settings to be executed
automatically when the power to
the Controller is turned on.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
