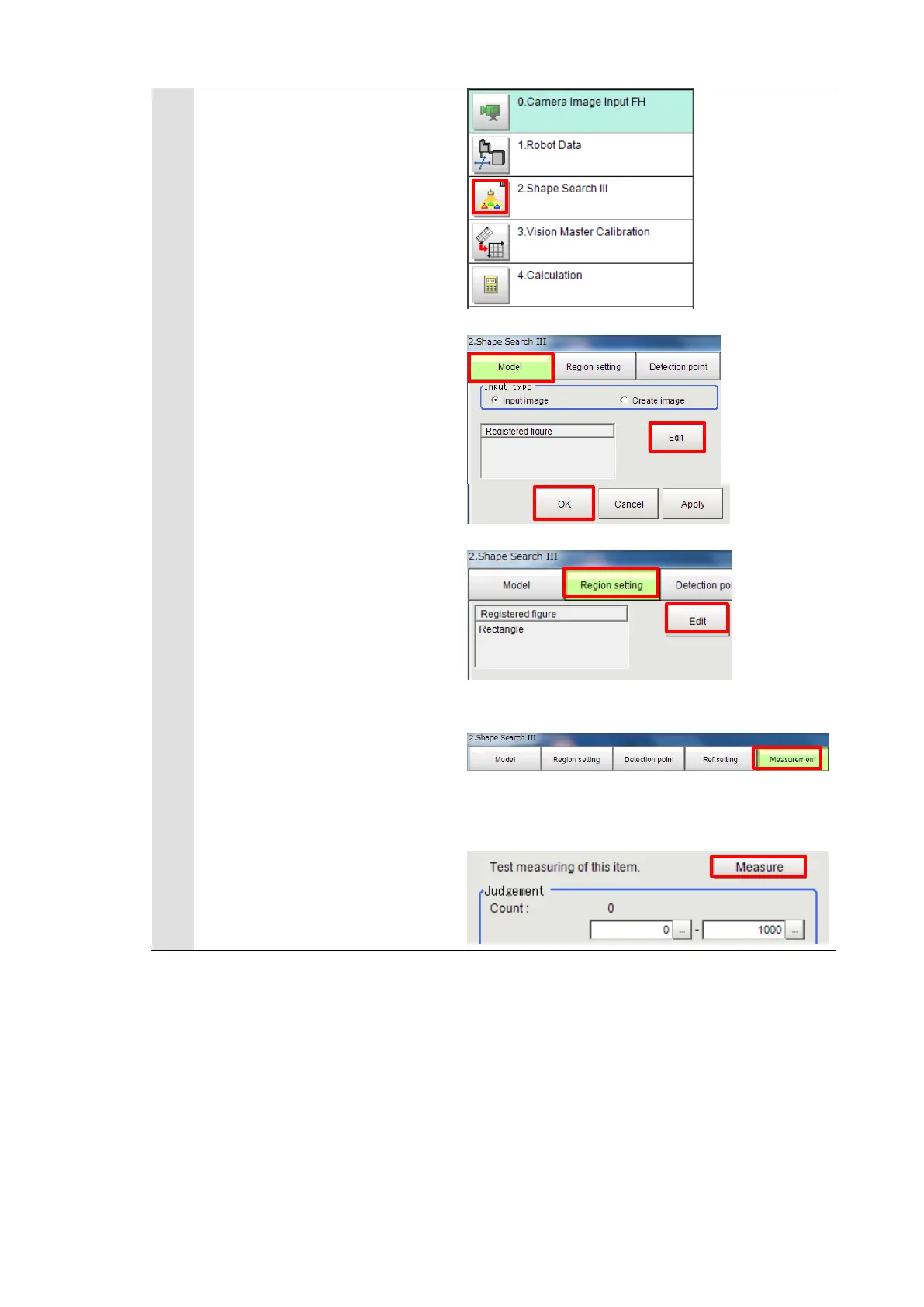

Click the “2. Shape search III”
icon on the Main Window of the
Vision Sensor to open the
setting screen.
Select a registering figure by
clicking [Edit] on the [Model]
tab.
Register it as a model by
clicking [OK] after fitting the
registering figure to the
calibration target.
Click [Edit] on the [Region
setting] tab to set the
measurement region according
to the field of view for a camera
to use. Click [OK] after the
setting.
Click [Measurement] on the
[Measurement] tab and check
the “Count” becomes one.
* If it does not become one, the
settings are not proper.
Therefore execute the model
registration again.
